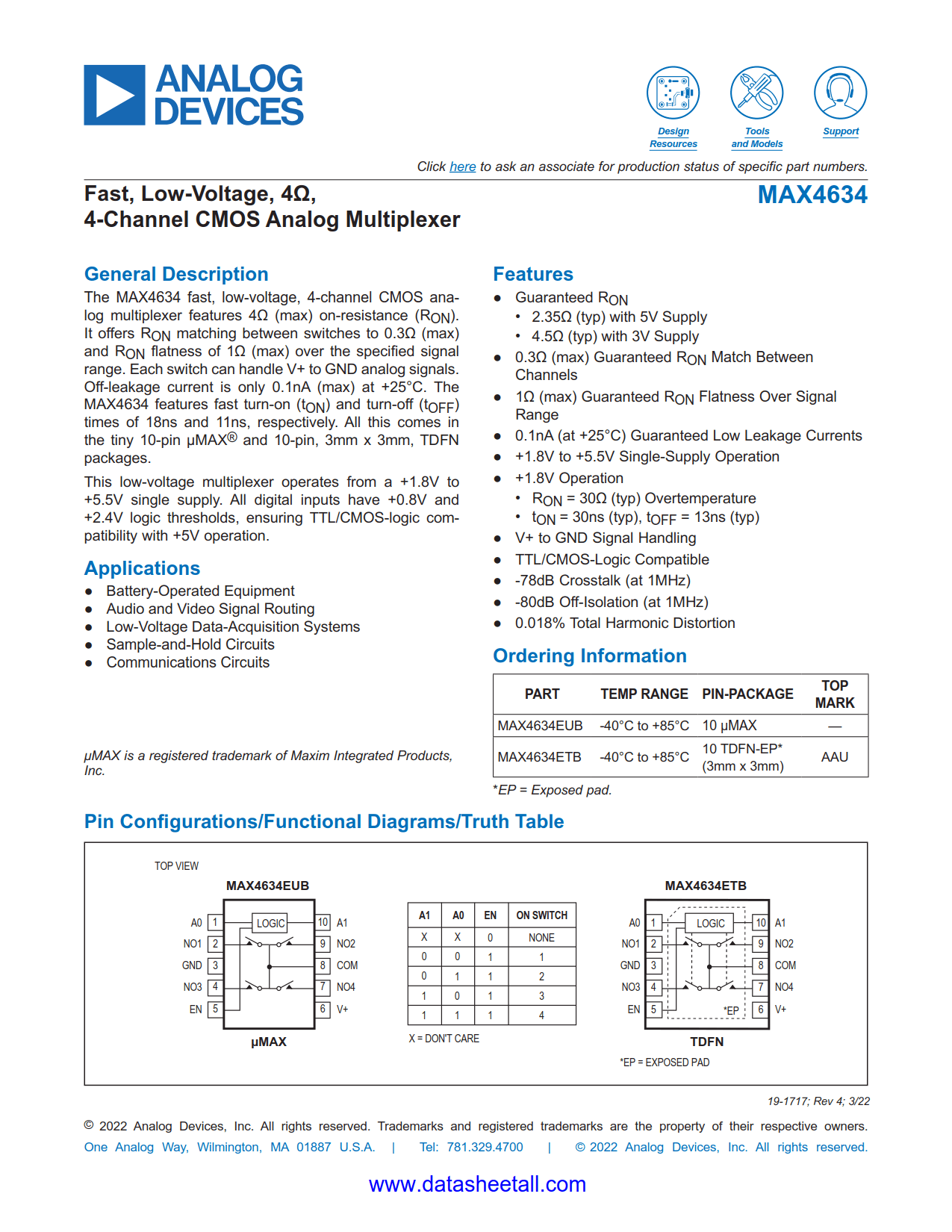

MAX4634 Datasheet

• Guaranteed R_ON
  • 2.5Ω (typ) with 5V Supply
  • 4.5Ω (typ) with 3V Supply
• 0.3Ω (max) Guaranteed R_ON Match Between Channels
• 1Ω (max) Guaranteed R_ON Flatness Over Signal Range
• 0.1nA (at +25°C) Guaranteed Low Leakage Currents
• +1.8V to +5.5V Single-Supply Operation
• +1.8V Operation
  • R_ON = 30Ω (typ) Overtemperature
  • t_ON = 30ns (typ), t_OFF = 13ns (typ)
• V+ to GND Signal Handling
• TTL/CMOS-Logic Compatible
• -78dB Crosstalk (at 1MHz)
• -80dB Off-Isolation (at 1MHz)
• 0.018% Total Harmonic Distortion

• Audio/Video Signal Routing
• Battery-Operated Equipment
• Communications Circuits
• Low-Voltage Data-Acquisition Systems
• Sample-and-Hold Circuits

The MAX4634 fast, low-voltage, 4-channel CMOS analog multiplexer features 4Ω (max) on-resistance (R_ON). It offers R_ON matching between switches to 0.3Ω (max) and R_ON flatness of 1Ω (max) over the specified signal range. Each switch can handle V+ to GND analog signals. Off-leakage current is only 0.1nA (max) at +25°C. The MAX4634 features fast turn-on (t_ON) and turn-off (t_OFF) times of 18ns and 11ns, respectively. All this comes in the tiny 10-pin µMAX^® and 10-pin, 3mm x 3mm, TDFN packages.

This low-voltage multiplexer operates from a +1.8V to +5.5V single supply. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility with +5V operation.
