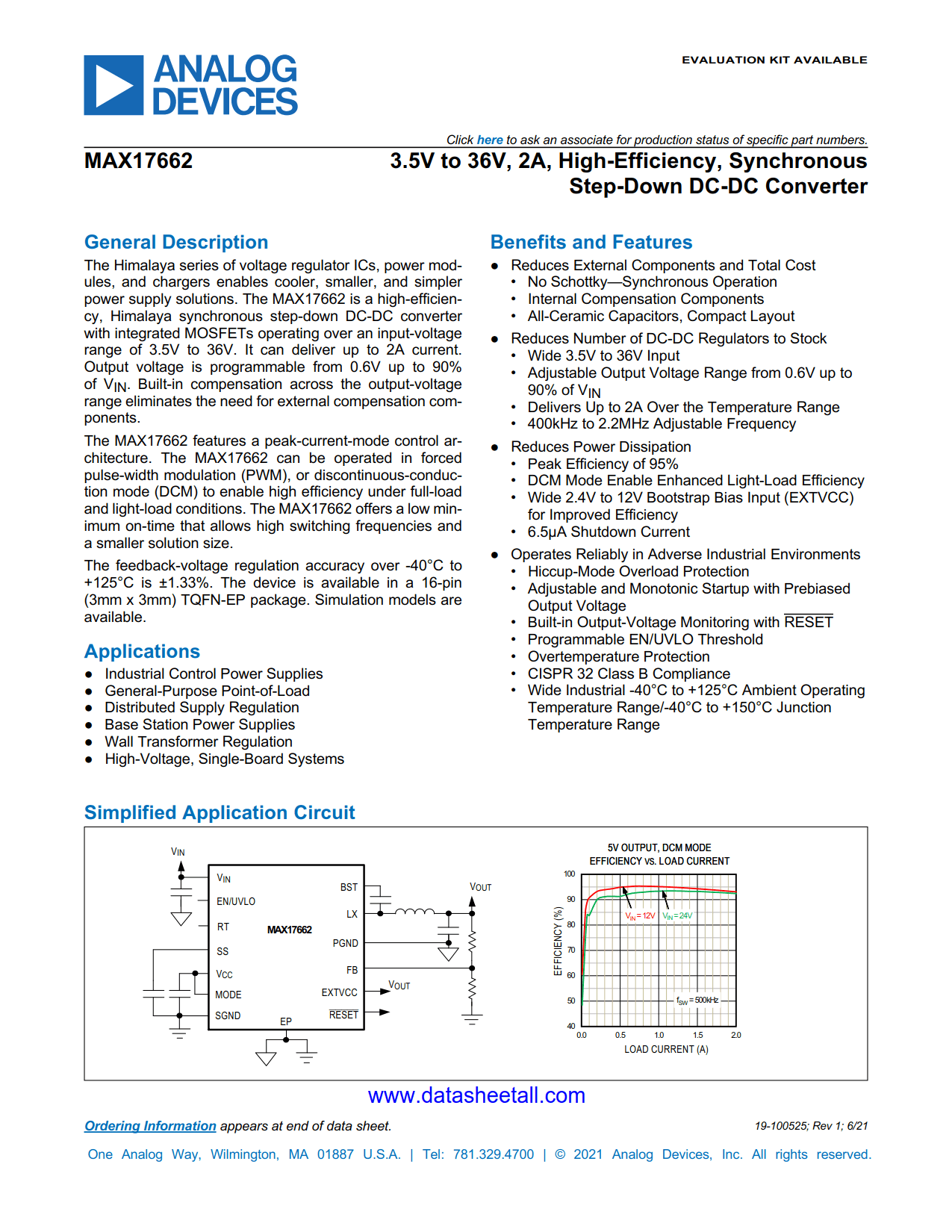

MAX17662 Datasheet

• Reduces External Components and Total Cost
  • No Schottky—Synchronous Operation
  • Internal Compensation Components
  • All-Ceramic Capacitors, Compact Layout
• Reduces Number of DC-DC Regulators to Stock
  • Wide 3.5V to 36V Input
  • Adjustable Output Voltage Range from 0.6V up to 90% of V_IN
  • Delivers Up to 2A Over the Temperature Range
  • 400kHz to 2.2MHz Adjustable Frequency
• Reduces Power Dissipation
  • Peak Efficiency of 95%
  • DCM Mode Enable Enhanced Light-Load Efficiency
  • Wide 2.4V to 12V Bootstrap Bias Input (EXTVCC) for Improved Efficiency
  • 6.5μA Shutdown Current
• Operates Reliably in Adverse Industrial Environments
  • Hiccup-Mode Overload Protection
  • Adjustable and Monotonic Startup with Prebiased Output Voltage
  • Built-in Output-Voltage Monitoring with Active-Low RESET
  • Programmable EN/UVLO Threshold
  • Overtemperature Protection
  • CISPR 32 Class B Compliance
  • Wide Industrial -40°C to +125°C Ambient Operating Temperature Range/-40°C to +150°C Junction Temperature Range

• Base Station Power Supplies
• Distributed Supply Regulation
• General-Purpose Point-of-Load
• High-Voltage, Single-Board Systems
• Industrial Control Power Supplies
• Wall Transformer Regulation

The Himalaya series of voltage regulator ICs, power modules, and chargers enables cooler, smaller, and simpler power supply solutions. The MAX17662 is a high-efficiency, Himalaya synchronous step-down DC-DC converter with integrated MOSFETs operating over an input-voltage range of 3.5V to 36V. It can deliver up to 2A current. Output voltage is programmable from 0.6V up to 90% of V_IN. Built-in compensation across the output-voltage range eliminates the need for external compensation components.

The MAX17662 features a peak-current-mode control architecture. The MAX17662 can be operated in forced pulse-width modulation (PWM), or discontinuous-conduction mode (DCM) to enable high efficiency under full-load and light-load conditions. The MAX17662 offers a low minimum on-time that allows high switching frequencies and a smaller solution size.

The feedback-voltage regulation accuracy over -40°C to +125°C is ±1.33%. The device is available in a 16-pin (3mm x 3mm) TQFN-EP package. Simulation models are available.
