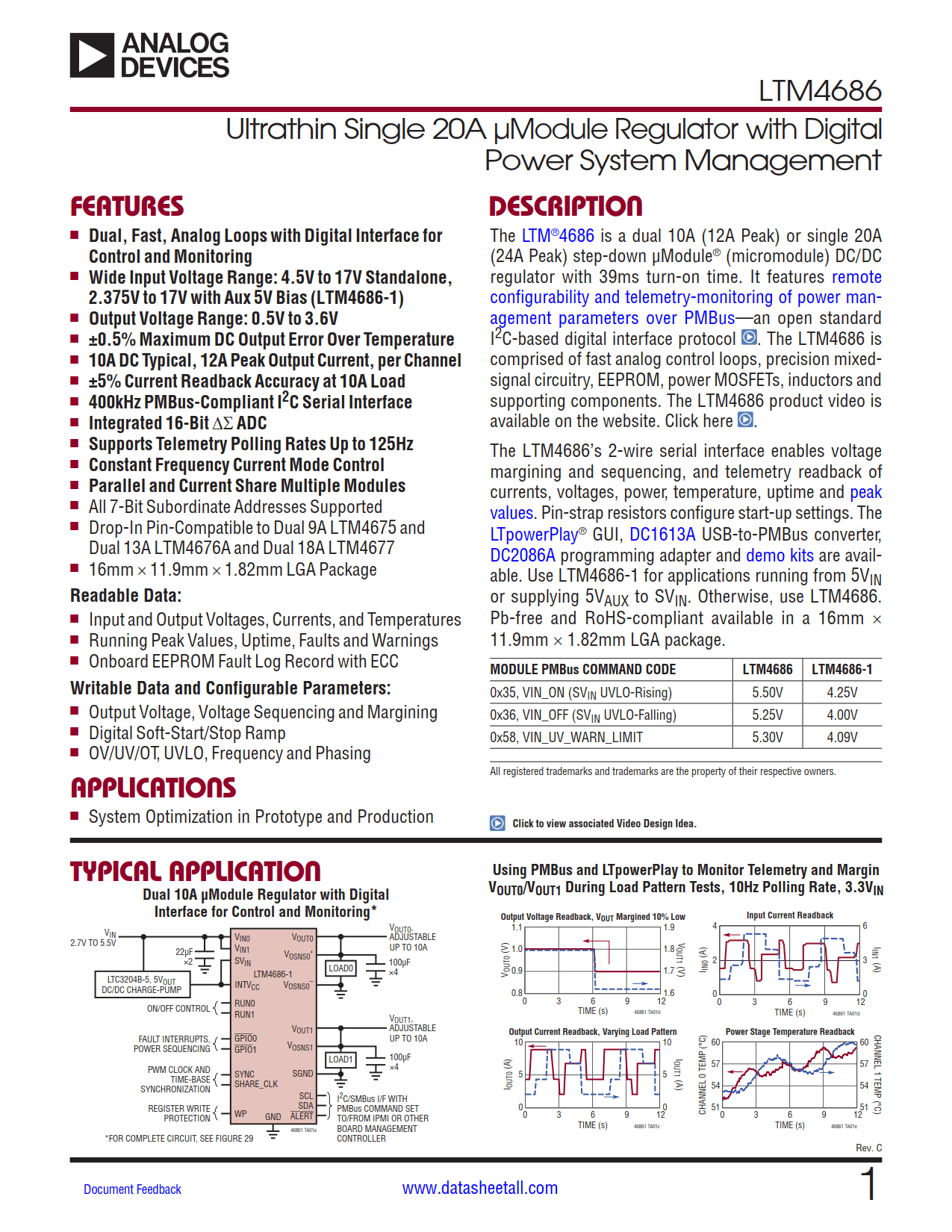

LTM4686 Datasheet

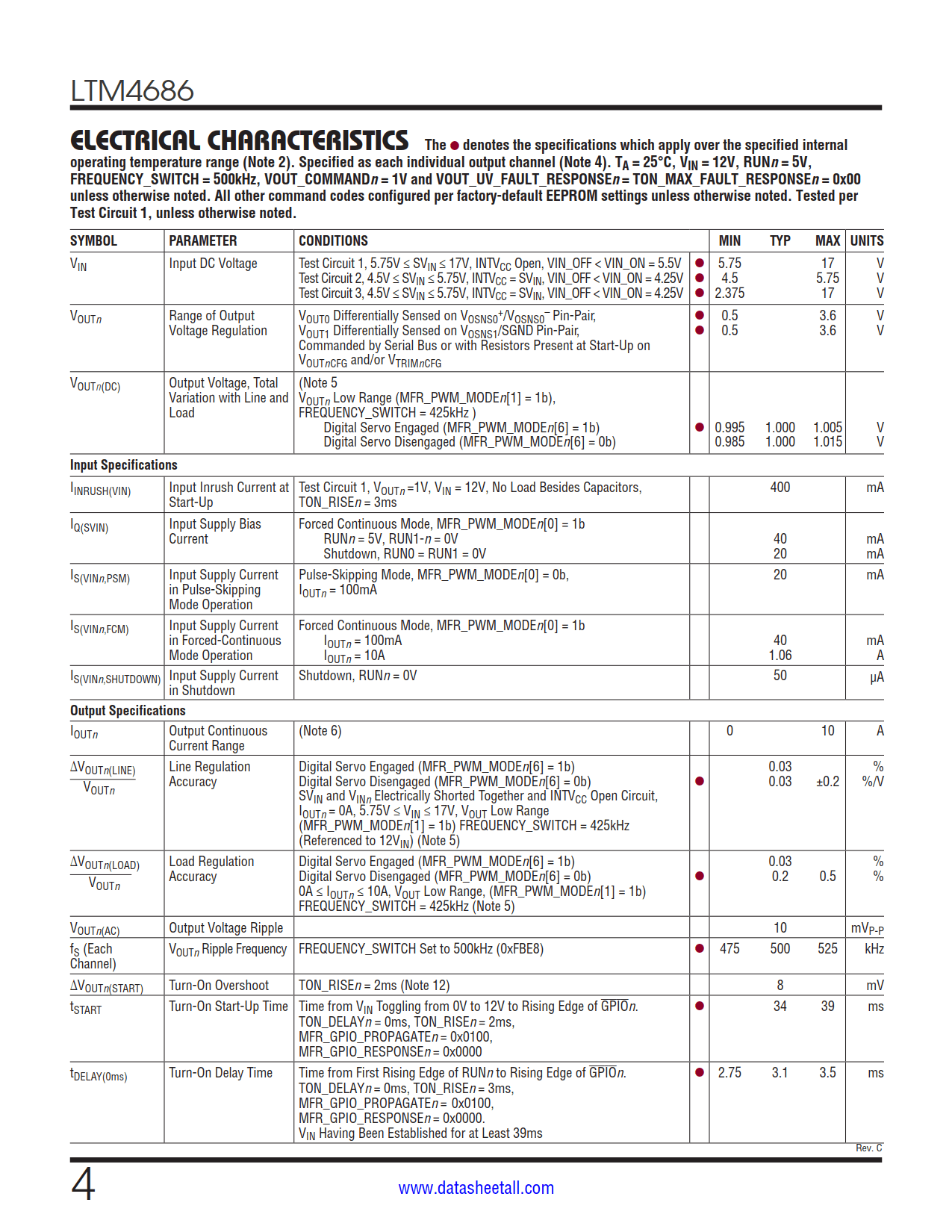

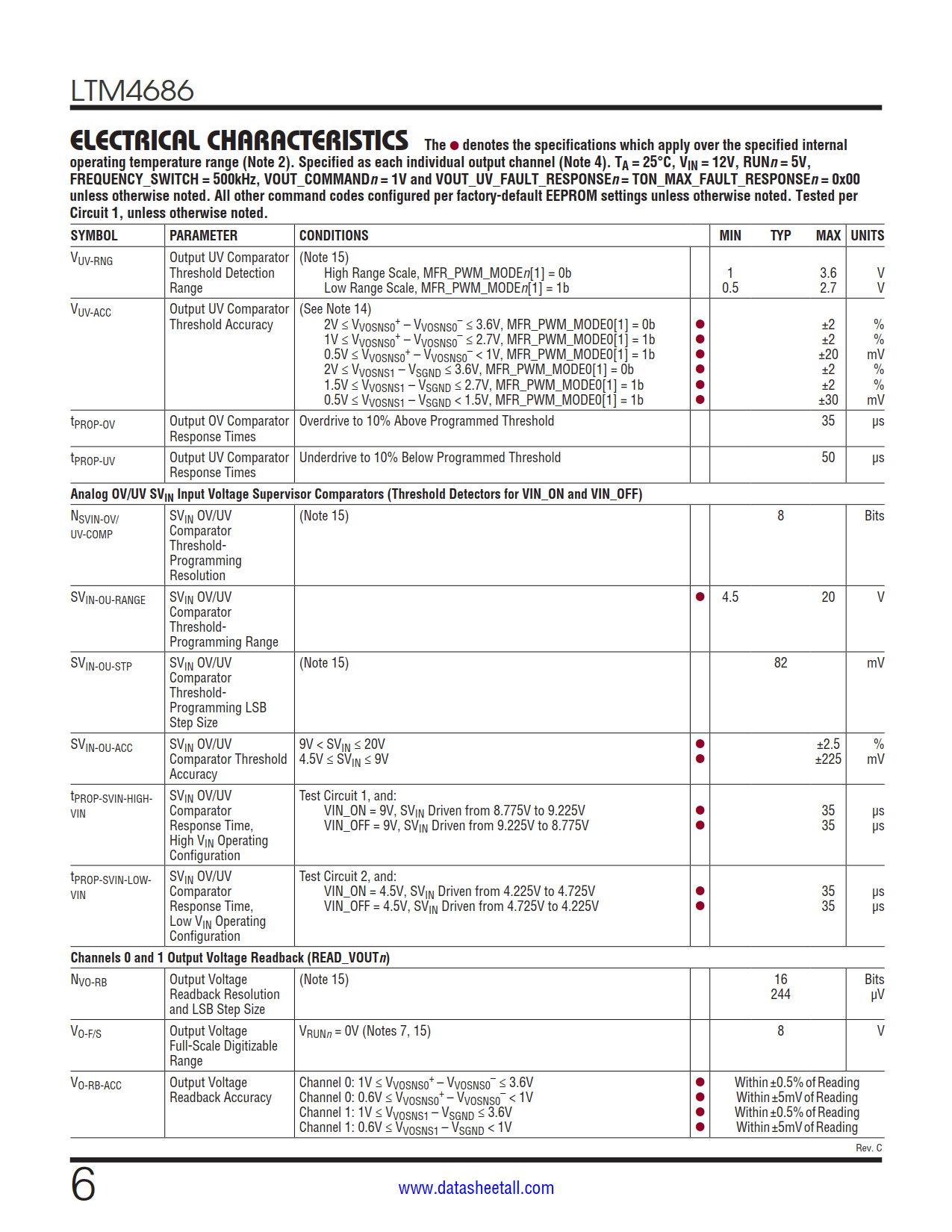

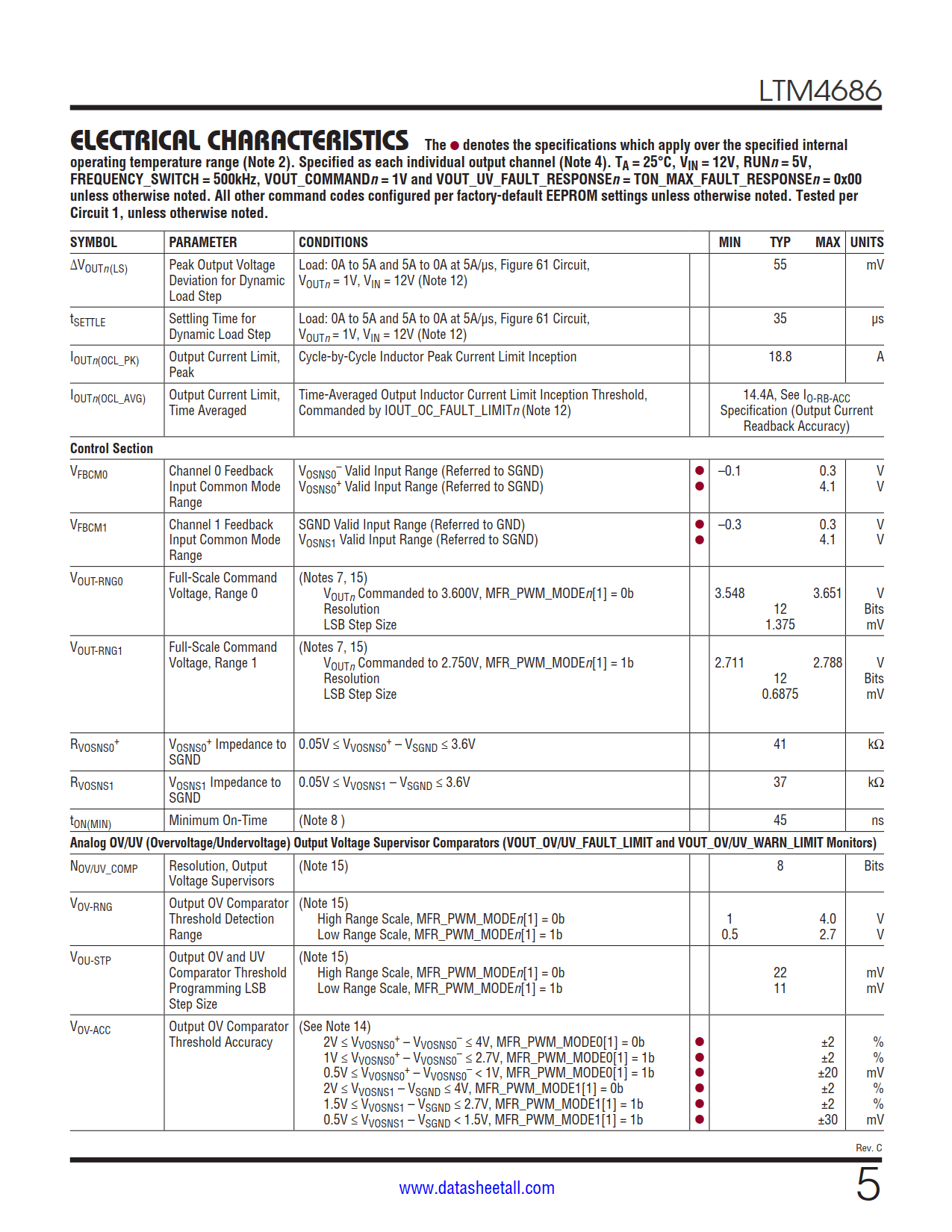

• Dual, Fast, Analog Loops with Digital Interface for Control and Monitoring
• Output Voltage Range: 0.5V to 3.6V
• ±0.5% Maximum DC Output Error Over Temperature
• 10A DC Typical, 12A Peak Output Current, per Channel
• ±5% Current Readback Accuracy at 10A Load
• 400kHz PMBus-Compliant I²C Serial Interface
• Integrated 16-Bit ∆Σ ADC
• Supports Telemetry Polling Rates Up to 125Hz
• Constant Frequency Current Mode Control
• Parallel and Current Share Multiple Modules
• All 7-Bit Slave Addresses Supported
• Drop-In Pin-Compatible to Dual 9A LTM4675 and Dual 13A LTM4676A and Dual 18A LTM4677

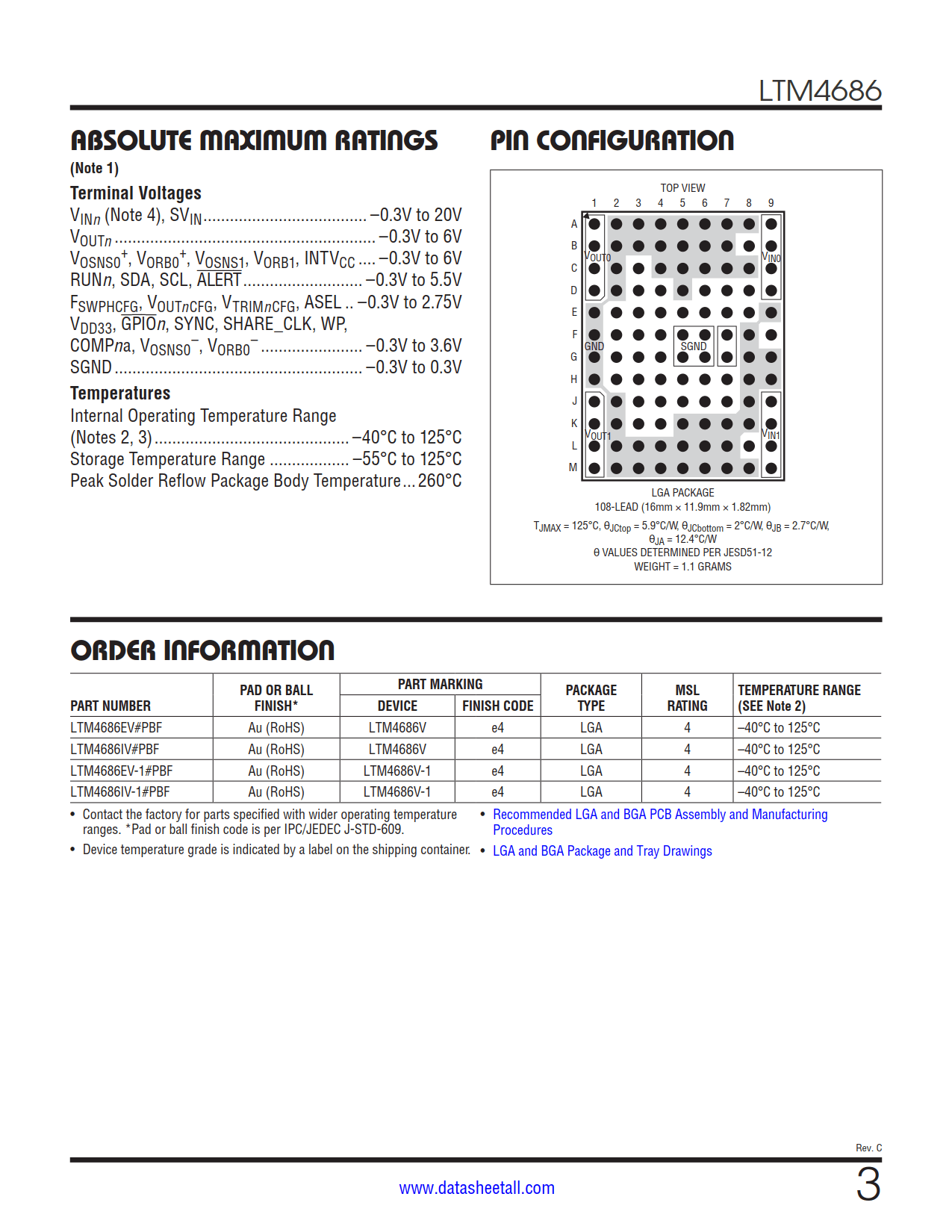

• 16mm × 11.9mm × 1.82mm LGA Package

• System Optimization in Prototype and Production

The LTM4686 is a dual 10A (12A Peak) or single 20A (24A Peak) step-down µModule^® (micromodule) DC/DC regulator with 39ms turn-on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I²C-based digital interface protocol . The LTM4686 is comprised of fast analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.

The LTM4686’s 2-wire serial interface enables voltage margining and sequencing, and telemetry readback of currents, voltages, power, temperature, uptime and peak values. Pin-strap resistors configure start-up settings. The LTpowerPlay^™ GUI, DC1613 USB-to-PMBus converter, DC2086 programming adapter and demo kits are available.

Pb-free and RoHS compliant, the LTM4686 is available in a 16mm × 11.9mm × 1.82mm LGA package.
