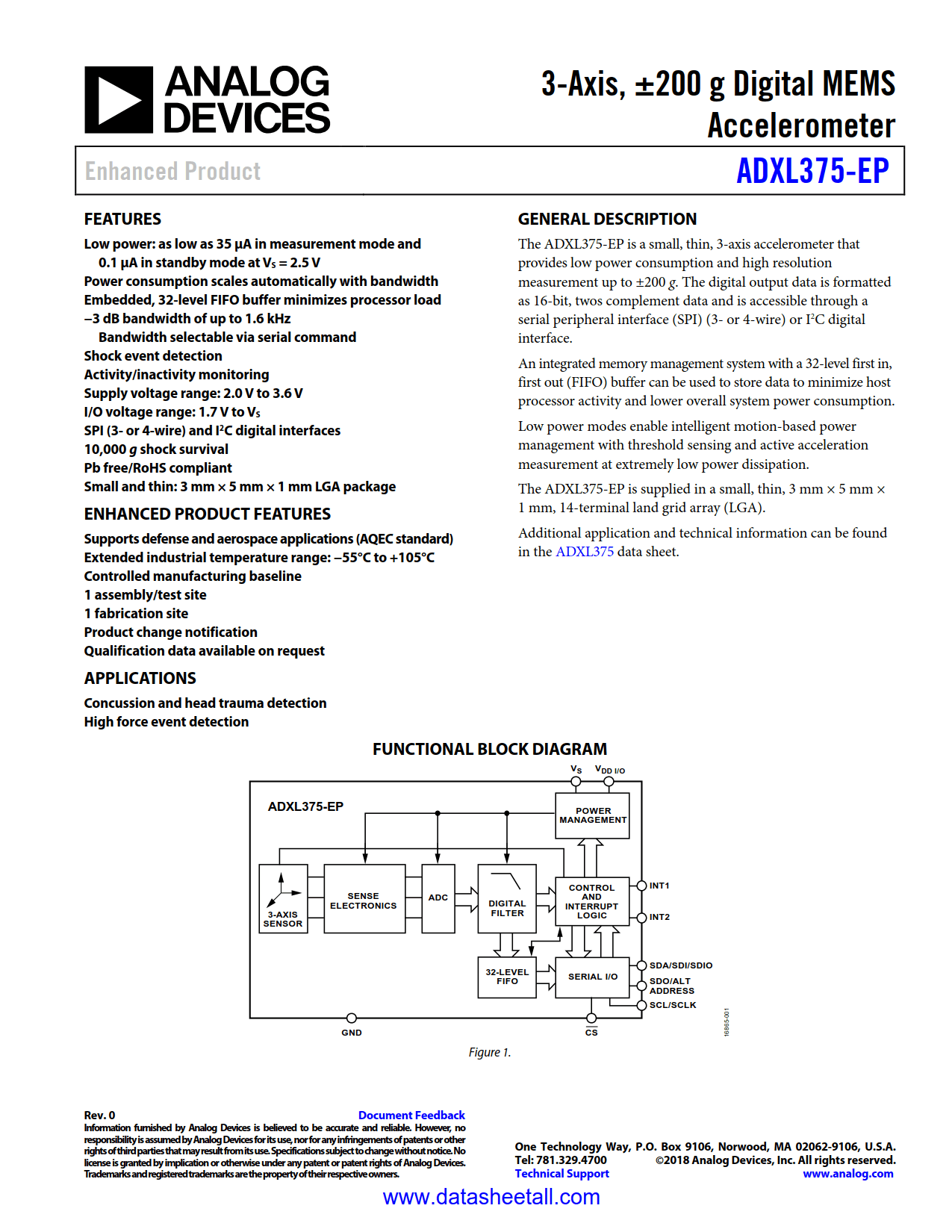

ADXL375-EP Datasheet

• Low power: as low as 35 µA in measurement mode and 0.1 µA in standby mode at V_S = 2.5 V
• Power consumption scales automatically with bandwidth
• Embedded, 32-level FIFO buffer minimizes processor load
• -3 dB bandwidth of up to 1.6 KHz
• Bandwidth selectable via serial command
• Shock event detection
• Activity/inactivity monitoring
• Supply voltage range: 2.0 V to 3.6 V
• I/O voltage range: 1.7 V to V_S
• SPI (3- or 4-wire) and I²C digital interfaces
• 10,000 g shock survival
• Pb free/RoHS compliant
• Small and thin: 3 mm × 5 mm × 1 mm LGA package

ENHANCED PRODUCT FEATURES

• Supports defense and aerospace applications (AQEC standard)
• Extended industrial temperature range: −55°C to +105°C
• Controlled manufacturing baseline
• 1 assembly/test site
• 1 fabrication site
• Product change notification
• Qualification data available on request

• Concussion and head trauma detection
• High force event detection

The ADXL375-EP is a small, thin, 3-axis accelerometer that provides low power consumption and high resolution measurement up to ±200 g. The digital output data is formatted as 16-bit, twos complement data and is accessible through a serial peripheral interface (SPI) (3- or 4-wire) or I2C digital interface.

An integrated memory management system with a 32-level first in, first out (FIFO) buffer can be used to store data to minimize host processor activity and lower overall system power consumption.

Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation.

The ADXL375-EP is supplied in a small, thin, 3 mm × 5 mm ×1 mm, 14-terminal land grid array (LGA).

Additional application and technical information can be found in the ADXL375 data sheet.
