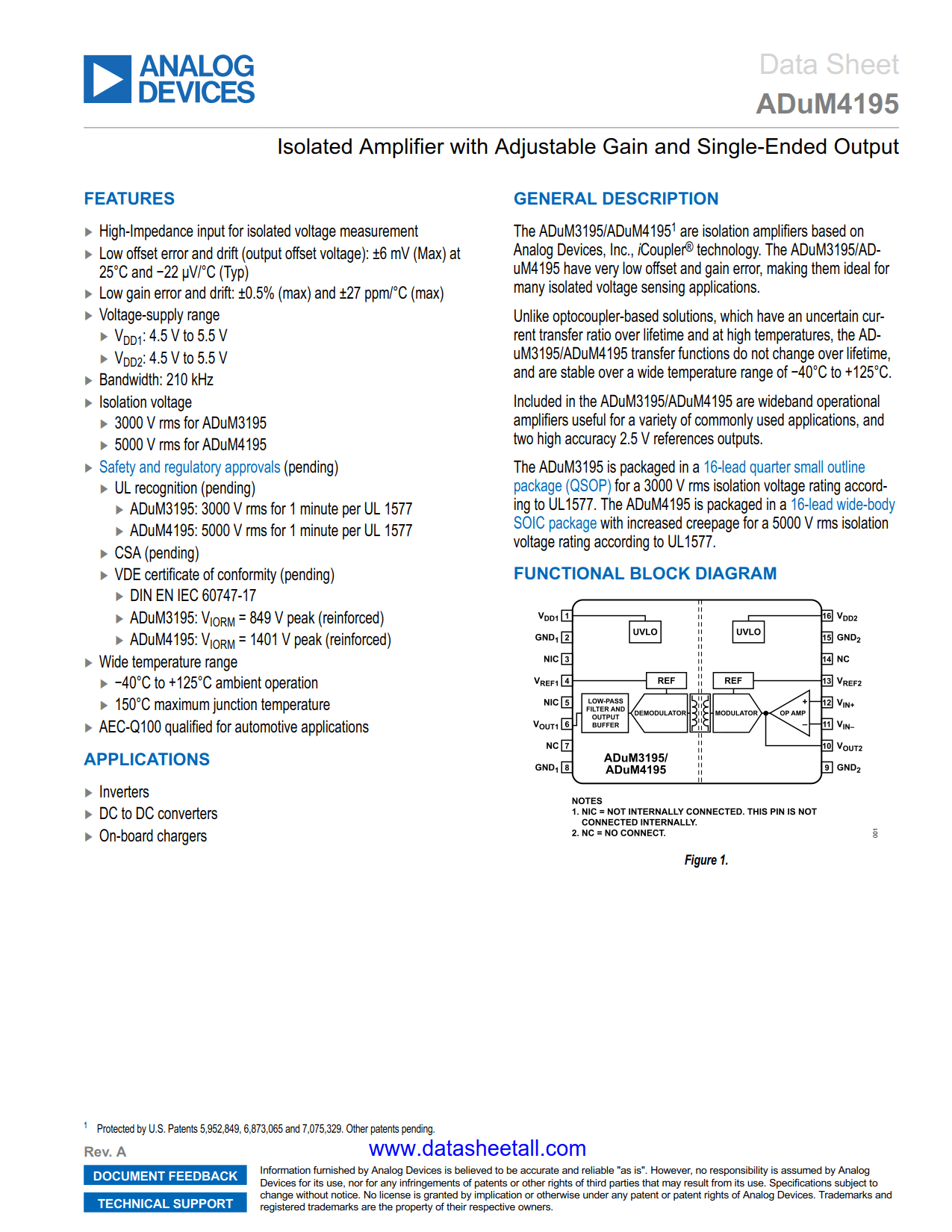

ADUM4195 Datasheet

• High-Impedance input for isolated voltage measurement
• Low offset error and drift (output offset voltage): ±6 mV (Max) at 25°C and −22 μV/°C (Typ)
• Low gain error and drift: ±0.5% (max) and ±27 ppm/°C (max)
• Voltage-supply range
  • V_DD1: 4.5 V to 5.5 V
  • V_DD2: 4.5 V to 5.5 V
• Bandwidth: 210 kHz
• Isolation voltage
  • 5000 V rms for ADuM4195
• Safety and regulatory approvals (pending)
  • UL recognition (pending)
    • ADuM4195: 5000 V rms for 1 minute per UL 1577
• CSA (pending)
• VDE certificate of conformity (pending)
  • DIN EN IEC 60747-17
  • ADuM4195: V_IORM = 1401 V peak (reinforced)
• Wide temperature range
  • −40°C to +125°C ambient operation
  • 150°C maximum junction temperature
• AEC-Q100 qualified for automotive applications

• Inverters
• DC to DC converters
• On-board chargers

The ADuM4195 are isolation amplifiers based on Analog Devices, Inc., iCoupler® technology. The ADuM4195 have very low offset and gain error, making them ideal for many isolated voltage sensing applications.

Unlike optocoupler-based solutions, which have an uncertain current transfer ratio over lifetime and at high temperatures, the ADuM4195 transfer functions do not change over lifetime, and are stable over a wide temperature range of −40°C to +125°C.

Included in the ADuM4195 are wideband operational amplifiers useful for a variety of commonly used applications, and two high accuracy 2.5 V references outputs.

The ADuM4195 is packaged in a 16-lead wide-body SOIC package with increased creepage for a 5000 V rms isolation voltage rating according to UL1577.
