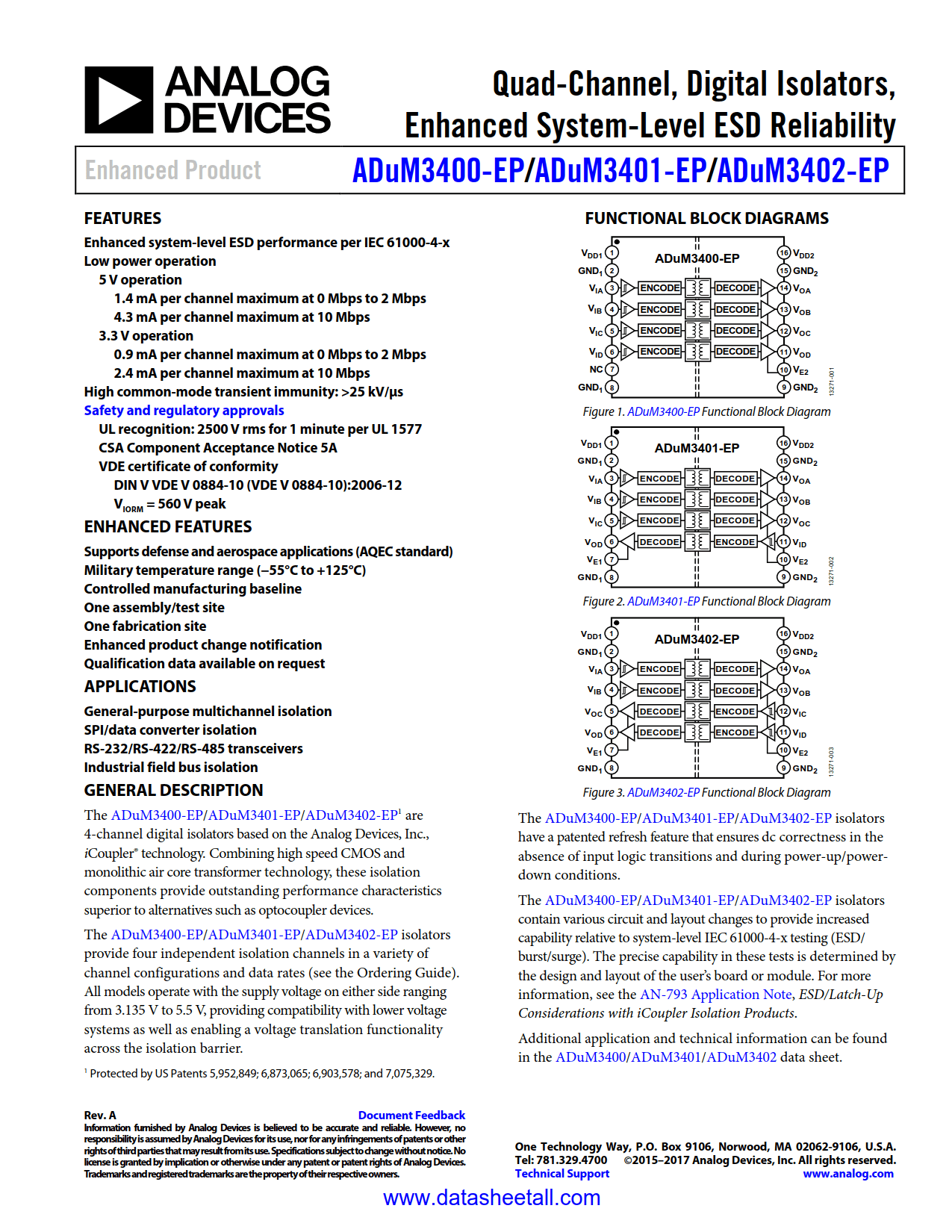

ADuM3402-EP Datasheet

• Enhanced system-level ESD performance per IEC 61000-4-x
• Low power operation
  • 5 V operation
    • 1.4 mA per channel maximum at 0 Mbps to 2 Mbps
    • 4.3 mA per channel maximum at 10 Mbps
  • 3.3 V operation
    • 0.9 mA per channel maximum at 0 Mbps to 2 Mbps
    • 2.4 mA per channel maximum at 10 Mbps
• High common-mode transient immunity: >25 kV/µs
• Safety and regulatory approvals
  • UL recognition: 2500 V rms for 1 minute per UL 1577
  • CSA Component Acceptance Notice 5A
  • VDE certificate of conformity
    • DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
    • V_IORM = 560 V peak

• Supports defense and aerospace applications (AQEC standard)
• Military temperature range (−55°C to +125°C)
• Controlled manufacturing baseline
• One assembly/test site
• One fabrication site
• Enhanced product change notification
• Qualification data available on request

• General-purpose multichannel isolation
• SPI/data converter isolation
• RS-232/RS-422/RS-485 transceivers
• Industrial field bus isolation

The ADuM3402-EP are 4-channel digital isolators based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices.

The ADuM3402-EP isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). All models operate with the supply voltage on either side ranging from 3.135 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier.

The ADuM3402-EP isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power down conditions.

The ADuM3402-EP isolators contain various circuit and layout changes to provide increased capability relative to system-level IEC 61000-4-x testing (ESD/burst/surge). The precise capability in these tests is determined by the design and layout of the user’s board or module. For more information, see the AN-793 Application Note, ESD/Latch-Up Considerations with iCoupler Isolation Products.

Additional application and technical information can be found in the ADuM3402 data sheet.
