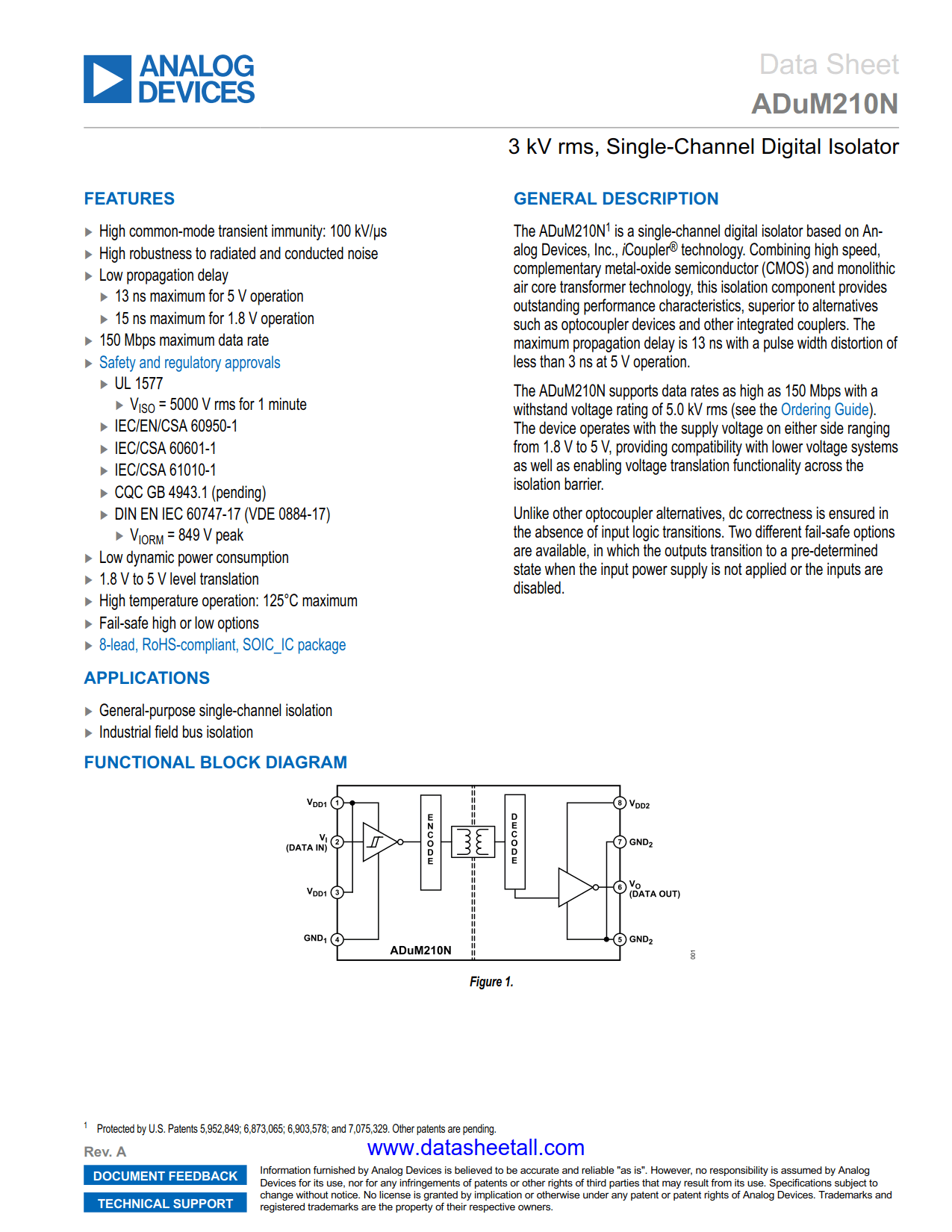

ADuM210N Datasheet

• High common-mode transient immunity: 100 kV/µs
• High robustness to radiated and conducted noise
• Low propagation delay
  13 ns maximum for 5 V operation
  15 ns maximum for 1.8 V operation
• 150 Mbps maximum data rate
• Safety and regulatory approvals
  • UL 1577
    • V_ISO = 5000 V rms for 1 minute
  • IEC/EN/CSA 60950-1
  • IEC/CSA 60601-1
  • IEC/CSA 61010-1
  • CQC GB 4943.1 (pending)
  • DIN EN IEC 60747-17 (VDE 0884-17)
    • V_IORM = 849 V peak

• Low dynamic power consumption
• 1.8 V to 5 V level translation
• High temperature operation: 125°C
• Fail-safe high or low options
• 8-lead, RoHS-compliant, SOIC_IC package
• See data sheet for additional features

• General-purpose single-channel isolation
• Industrial field bus isolation

The ADuM210N is single-channel digital isolators based on Analog Devices, Inc., iCoupler^® technology. Combining high speed, complementary metal-oxide semiconductor (CMOS) and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics, superior to alternatives such as optocoupler devices and other integrated couplers. The maximum propagation delay is 13 ns with a pulse width distortion of less than 3 ns at 5 V operation.

The ADuM210N supports data rates as high as 150 Mbps with a withstand voltage rating of 5.0 kV rms. The device operates with the supply voltage on either side ranging from 1.8 V to 5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier.

Unlike other optocoupler alternatives, dc correctness is ensured in the absence of input logic transitions. Two different fail-safe options are available, in which the outputs transition to a pre-determined state when the input power supply is not applied or the inputs are disabled.
