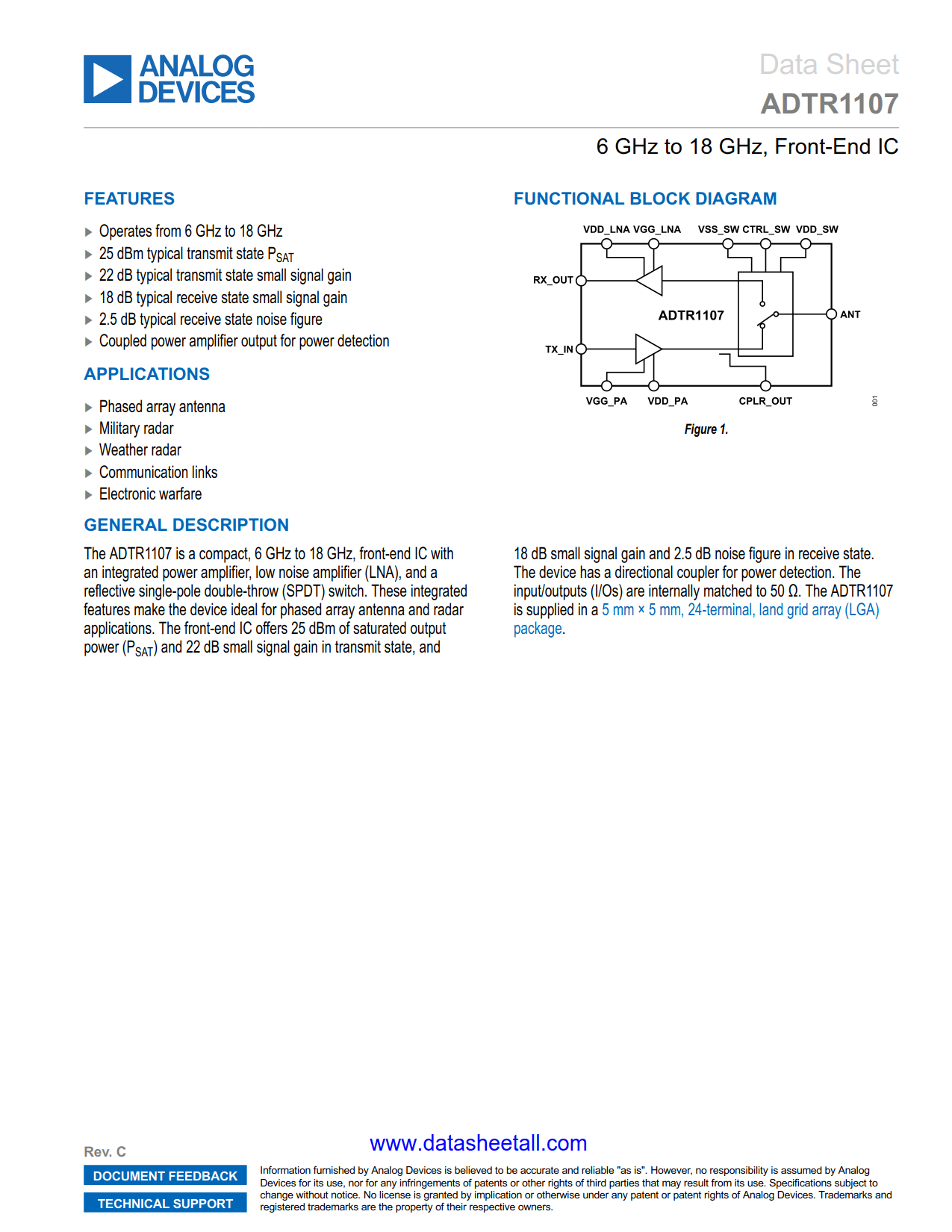

ADTR1107 Datasheet

Part No.	In Stock	Price	Packaging	SPQ	Marking	MSL	Pins	Temp Range	Package Description
ADTR1107ACCZ	50pcs	$123.714	Cut Tape	750	ADTR1107	3	24	-40°C ~ 85°C	24-Lead LGA
ADTR1107ACCZ-R7	94pcs	$123.714	Reel	750	ADTR1107	3	24	-40°C ~ 85°C	24-Lead LGA

• Operates from 6 GHz to 18 GHz
• 25 dBm typical transmit state P_SAT
• 22 dB typical transmit state small signal gain
• 18 dB typical receive state small signal gain
• 2.5 dB typical receive state noise figure
• Coupled power amplifier output for power detection

• Phased array antenna
• Military radar
• Weather radar
• Communication links
• Electronic warfare

The ADTR1107 is a compact, 6 GHz to 18 GHz, front-end IC with an integrated power amplifier, low noise amplifier (LNA), and a reflective single-pole double-throw (SPDT) switch. These integrated features make the device ideal for phased array antenna and radar applications. The front-end IC offers 25 dBm of saturated output power (P_SAT) and 22 dB small signal gain in transmit state, and 18 dB small signal gain and 2.5 dB noise figure in receive state. The device has a directional coupler for power detection. The input/outputs (I/Os) are internally matched to 50 Ω. The ADTR1107 is supplied in a 5 mm × 5 mm, 24-terminal, land grid array (LGA) package.
