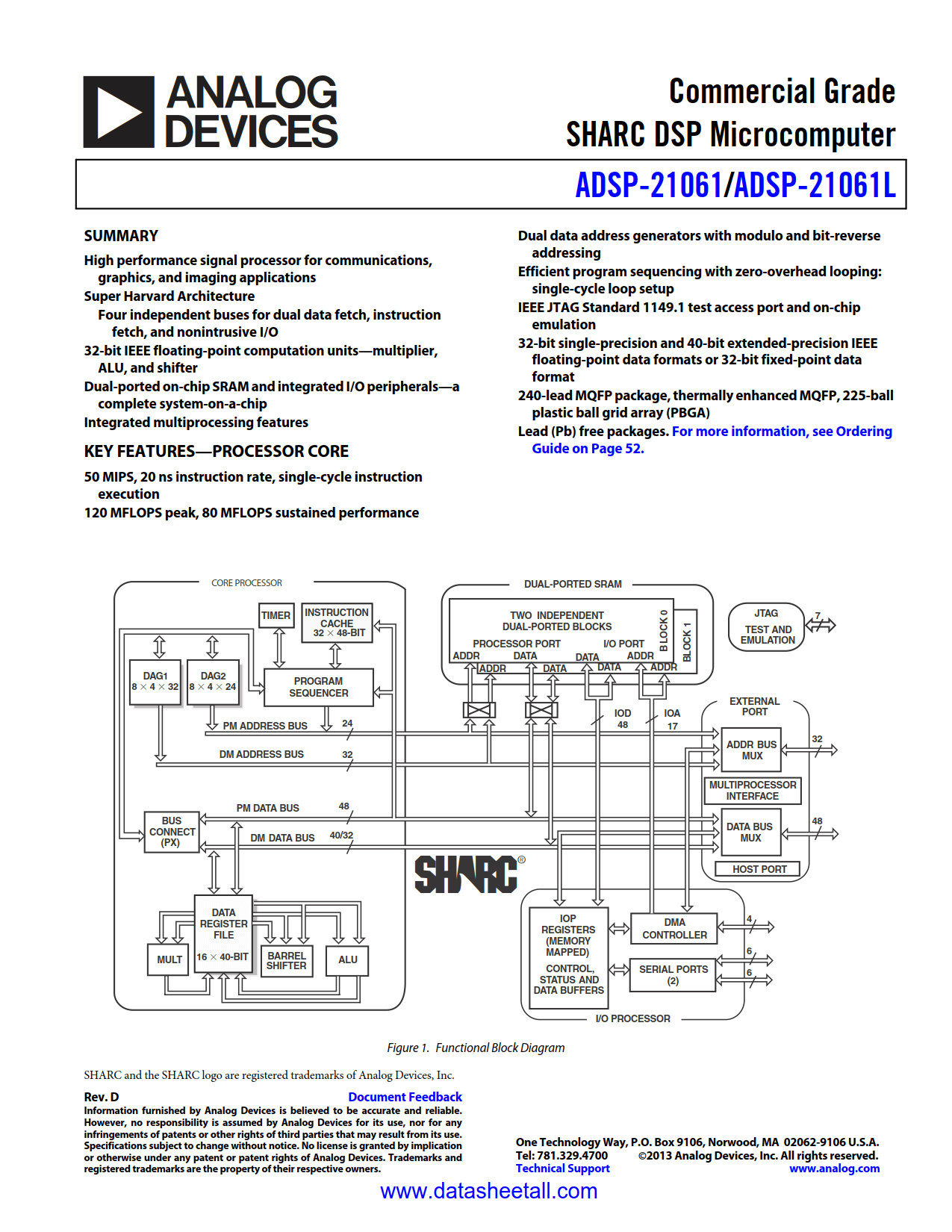

ADSP-21061 Datasheet

• 50MHz (20ns instruction rate) SISD SHARC Core
• 150MFLOPs peak performance
• Code compatible with all SHARC processors
• Supports IEEE-compatible 32-bit floating-point, 40-bit floating point, and 32-bit fixed point math
• 1Mbit of on-chip dual-ported SRAM
• Glueless connection for scalable DSP multiprocessing
• Two synchronous serial ports with independent transmit and receive functions
• 6 Channel DMA controller
• Host Processor Interface

The ADSP-21061 is a member of the powerful SHARC^® family of floating point processors. The SHARC^® ­Super Harvard Architecture Computer­are signal processing microcomputers that offer new capabilities and levels of integration and performance.

The ADSP-21061 is a 32-bit processor optimized for high performance DSP applications. The ADSP-21061 combines the ADSP-21000 DSP core with a dual-ported on-chip SRAM and an I/O processor with a dedicated I/O bus to form a complete system-in-a-chip.

Fabricated in a high-speed, low-power CMOS process, the ADSP-21061 has a 20 ns instruction cycle time operating at 50 MIPS. With its on-chip instruction cache, the processor can execute every instruction in a single cycle.

The ADSP-21061 SHARC^® combines a high-performance floating-point DSP core with integrated, on-chip system features, including a 1 Mbit SRAM memory, host processor interface, DMA controller, serial ports and parallel bus connectivity for glueless DSP multiprocessing.
