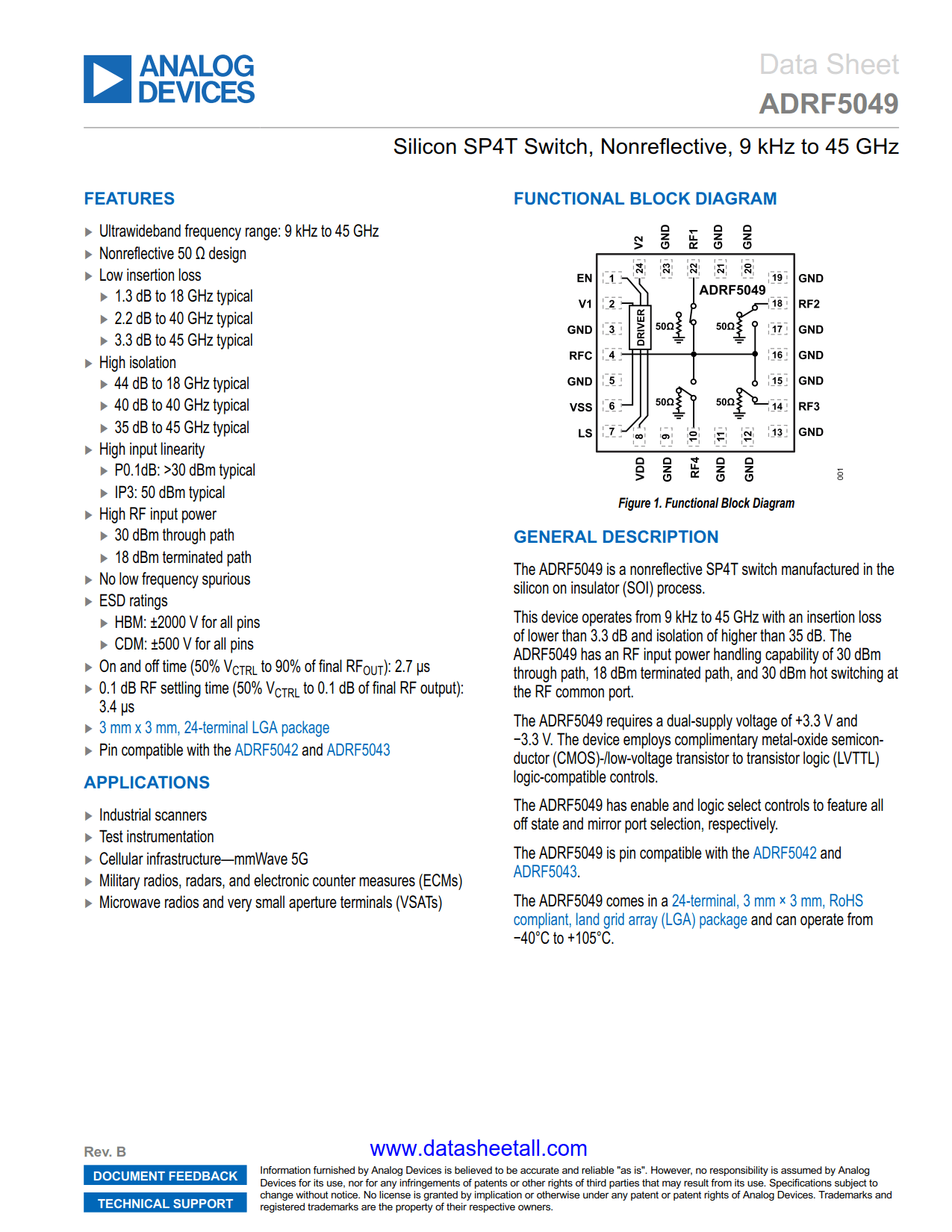

ADRF5049 Datasheet

• Ultrawideband frequency range: 9 kHz to 45 GHz
• Nonreflective 50 Ω design
• Low insertion loss
  • 1.3 dB to 18 GHz typical
  • 2.2 dB to 40 GHz typical
  • 3.3 dB to 45 GHz typical
• High isolation
  • 44 dB to 18 GHz typical
  • 40 dB to 40 GHz typical
  • 35 dB to 45 GHz typical
• High input linearity
  • P0.1dB: >30 dBm typical
  • IP3: 50 dBm typical
• High RF input power
  • 30 dBm through path
  • 18 dBm terminated path
• No low frequency spurious
• ESD ratings
  • HBM: ±2000 V for all pins
  • CDM: ±500 V for all pins
• On and off time (50% V_CTRL to 90% of final RF_OUT): 2.7 μs
• 0.1 dB RF settling time (50% V_CTRL to 0.1 dB of final RF output): 3.4 μs
• 3 mm x 3 mm, 24-terminal LGA package
• Pin compatible with the ADRF5042 and ADRF5043

• Industrial scanners
• Test instrumentation
• Cellular infrastructure—mmWave 5G
• Military radios, radars, and electronic counter measures (ECMs)
• Microwave radios and very small aperture terminals (VSATs)

The ADRF5049 is a nonreflective SP4T switch manufactured in the silicon on insulator (SOI) process.

This device operates from 9 kHz to 45 GHz with an insertion loss of lower than 3.3 dB and isolation of higher than 35 dB. The ADRF5049 has an RF input power handling capability of 30 dBm through path, 18 dBm terminated path, and 30 dBm hot switching at the RF common port.

The ADRF5049 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs complimentary metal-oxide semiconductor (CMOS)-/low-voltage transistor to transistor logic (LVTTL) logic-compatible controls.

The ADRF5049 has enable and logic select controls to feature all off state and mirror port selection, respectively.

The ADRF5049 is pin compatible with the ADRF5042 and ADRF5043.

The ADRF5049 comes in a 24-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.
