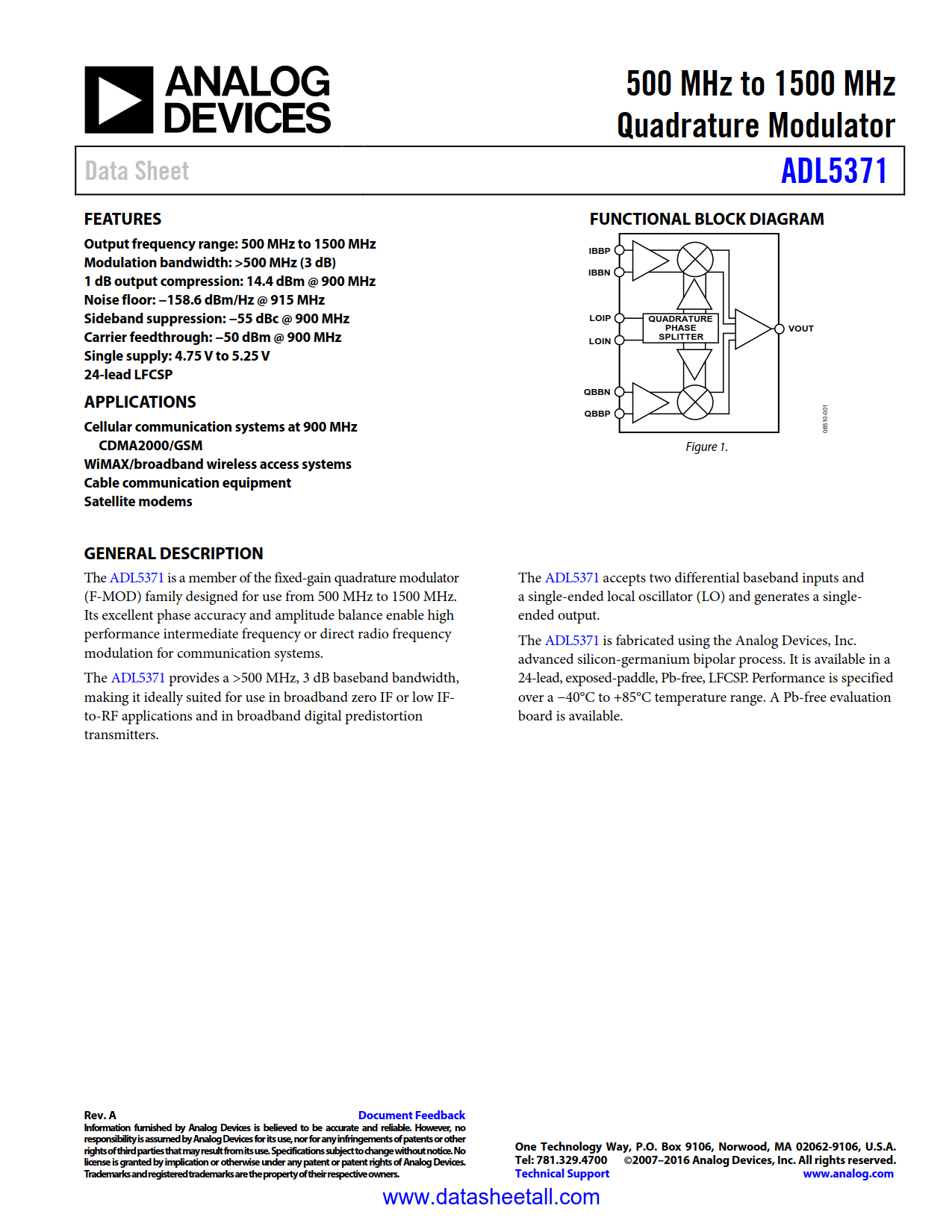

ADL5371 Datasheet

• Output frequency range: 500 MHz to 1500 MHz
• Modulation bandwidth: >500 MHz (3 dB)
• 1 dB output compression: 14.4 dBm at 900 MHz
• Noise floor: −158.6 dBm/Hz at 915 MHz
• Sideband suppression: −55 dBc at 900 MHz
• Carrier feedthrough: −50 dBm at 900 MHz
• Single supply: 4.75 V to 5.25 V
• 24-lead LFCSP

• Cellular communication systems at 900 MHz CDMA2000/GSM
• WiMAX/broadband wireless access systems
• Cable communication equipment
• Satellite modems

The ADL5371 is a member of the fixed-gain quadrature modulator (F-MOD) family designed for use from 500 MHz to 1500 MHz. Its excellent phase accuracy and amplitude balance enable high performance intermediate frequency or direct radio frequency modulation for communication systems.

The ADL5371 provides a >500 MHz, 3 dB baseband bandwidth, making it ideally suited for use in broadband zero IF or low IF-to-RF applications and in broadband digital predistortion transmitters.

The ADL5371 accepts two differential baseband inputs and a single-ended local oscillator (LO) and generates a single-ended output.

The ADL5371 is fabricated using the Analog Devices, Inc. advanced silicon-germanium bipolar process. It is available in a 24-lead, exposed-paddle, Pb-free, LFCSP. Performance is specified over a −40°C to +85°C temperature range. A Pb-free evaluation board is available.
