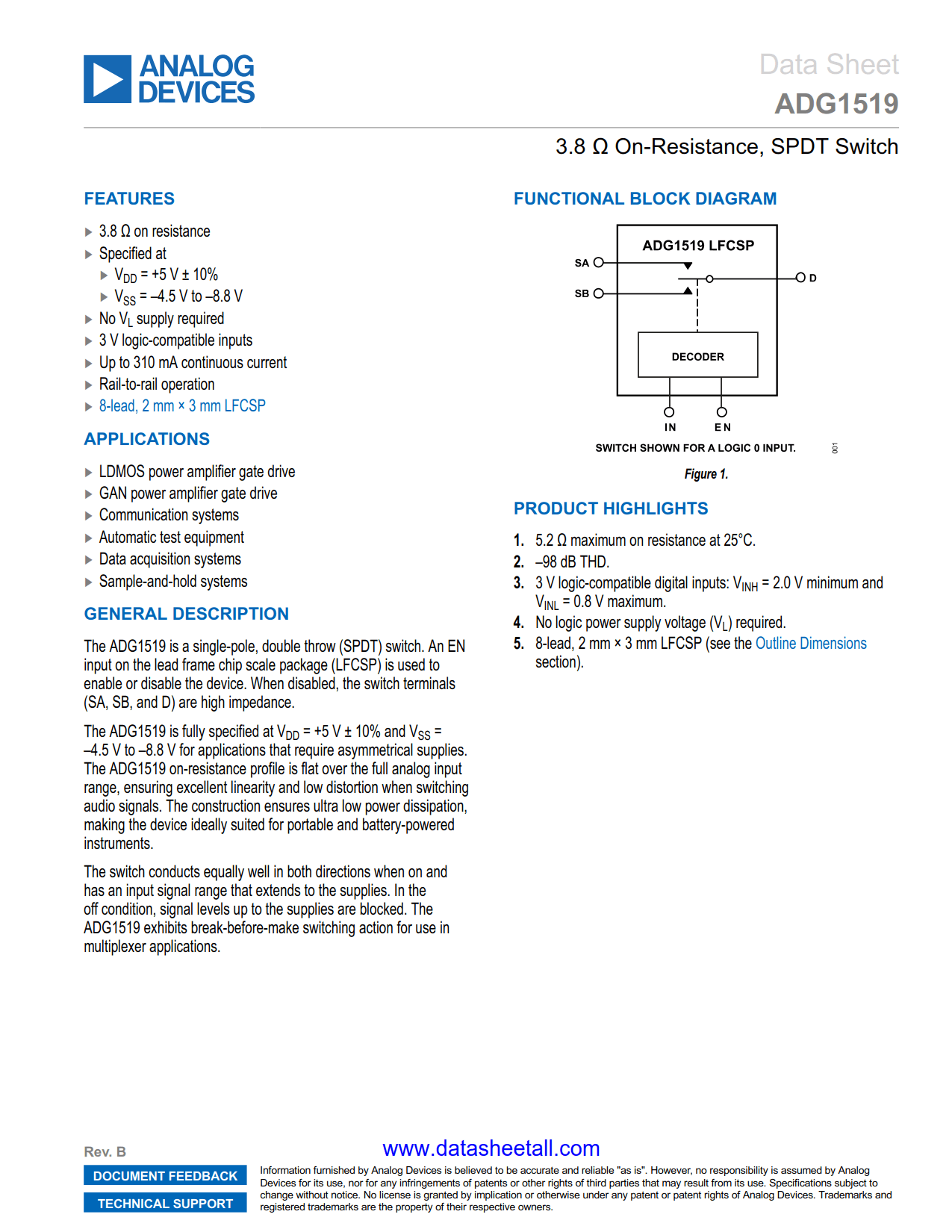

ADG1519 Datasheet

• 3.8 Ω on resistance
• Specified at
  • V_DD = +5 V ± 10%
  • V_SS = –4.5 V to –8.8 V
• No V_L supply required
• 3 V logic-compatible inputs
• Up to 310 mA continuous current
• Rail-to-rail operation
• 8-lead, 2 mm × 3 mm LFCSP

• LDMOS power amplifier gate drive
• GAN power amplifier gate drive
• Communication systems
• Automatic test equipment
• Data acquisition systems
• Sample-and-hold systems

The ADG1519 is a single-pole, double throw (SPDT) switch. An EN input on the lead frame chip scale package (LFCSP) is used to enable or disable the device. When disabled, the switch terminals (SA, SB, and D) are high impedance.

The ADG1519 is fully specified at V_DD = +5 V ± 10% and V_SS = –4.5 V to –8.8 V for applications that require asymmetrical supplies. The ADG1519 on-resistance profile is flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals. The construction ensures ultra low power dissipation, making the device ideally suited for portable and battery-powered instruments.

The switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. The ADG1519 exhibits break-before-make switching action for use in multiplexer applications.
