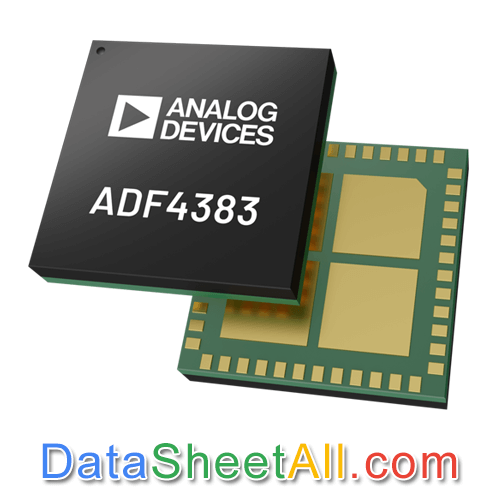

ADF4383 Datasheet

• Fundamental VCO frequency range: 10 GHz to 20 GHz
• VCO phase noise improvement of up to 3 dB as compared to ADF4382
• Integrated RMS jitter at 20 GHz = 18 fs (integration bandwidth: 100 Hz to 100 MHz)
• Integrated RMS jitter at 20 GHz = 31 fs (ADC SNR method)
• VCO fast calibration time: <2 μs
• VCO autocalibration time: <100 μs
• Phase noise floor: −156 dBc/Hz at 20 GHz
• PLL specifications
  • −239 dBc/Hz: normalized in-band phase noise floor (integer mode)
  • −287 dBc/Hz: normalized 1/f phase noise floor
  • 625 MHz maximum phase/frequency detector input frequency
  • 4.5 GHz reference input frequency
  • Typical spurious fPFD: −90 dBc
• Reference to output delay specifications
  • Propagation delay temperature coefficient: 0.06 ps/°C
  • Adjustment step size: <1 ps
• Multichip output phase alignment
• 3.3 V and 5 V power supplies
• ADIsimPLL™ loop filter design tool support
• 7 mm × 7 mm, 48-terminal LGA
• −40°C to +105°C operating temperature

• High performance data converter clocking
• Wireless infrastructure (MC-GSM, 5G, 6G)
• Test and measurement

The ADF4383 is a high performance, ultra-low jitter, fractional-N phased-locked loop (PLL) with an integrated voltage controlled oscillator (VCO) ideally suited for local oscillator (LO) generation for 5G applications or data converter clock applications. The high performance PLL has a figure of merit of −239 dBc/Hz, low 1/f noise and high PFD frequency of 625 MHz in integer mode that can achieve ultra-low in-band noise and integrated jitter. The ADF4383 can generate frequencies in a fundamental octave range of 10 GHz to 20 GHz, thereby eliminating the need for subharmonic filters. The output dividers on the ADF4383 allows a complete output frequency range to be generated from 625 MHz to 20 GHz.

For multiple data converter clock applications, the ADF4383 automatically aligns its output to the input reference edge by including the output divider in the PLL feedback loop. For applications that require deterministic delay or delay adjustment capability, a programmable reference to output delay with <1 ps resolution is provided. The reference to output delay matching across multiple devices and over temperature allows predictable and precise multichip alignment.

The simplicity of the ADF4383 block diagram eases development time with a simplified serial peripheral interface (SPI) register map, external SYNC input, and repeatable multichip alignment in both integer and fractional mode.
