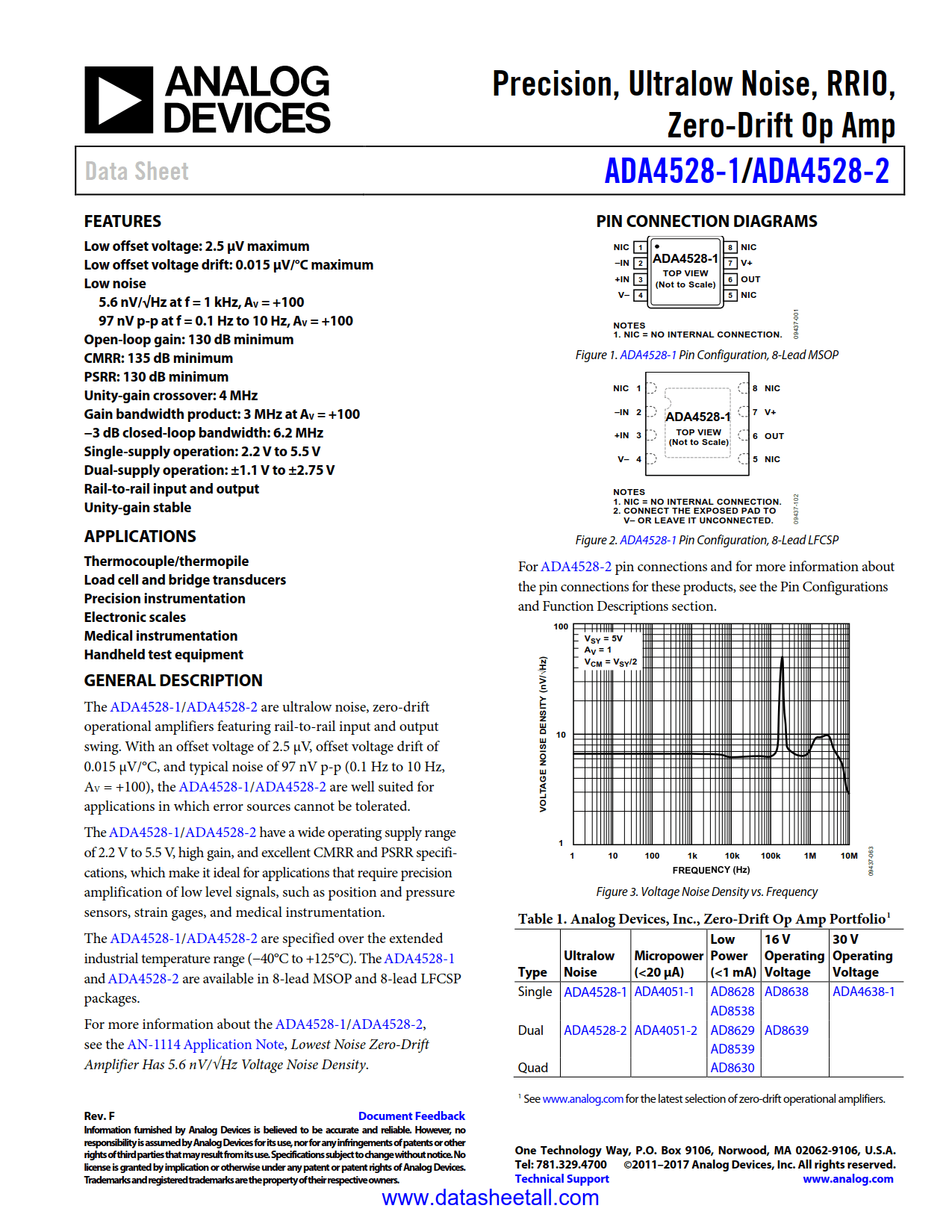

ADA4528-1 Datasheet

• Low offset voltage: 2.5 μV maximum
• Low offset voltage drift: 0.015 μV/°C maximum
• Low noise
  • 5.6 nV/√Hz at f = 1 kHz, A_V = +100
  • 97 nV p-p at f = 0.1 Hz to 10 Hz, A_V = +100
• Open-loop gain: 130 dB minimum
• CMRR: 135 dB minimum
• PSRR: 130 dB minimum
• Unity-gain crossover: 4 MHz
• Gain bandwidth product: 3 MHz at A_V = +100
• −3 dB closed-loop bandwidth: 6.2 MHz
• Single-supply operation: 2.2 V to 5.5 V
• Dual-supply operation: ±1.1 V to ±2.75 V
• Rail-to-rail input and output
• Unity-gain stable

• Thermocouple/thermopile
• Load cell and bridge transducers
• Precision instrumentation
• Electronic scales
• Medical instrumentation
• Handheld test equipment

The ADA4528-1 are ultralow noise, zero-drift operational amplifiers featuring rail-to-rail input and output swing. With an offset voltage of 2.5 μV, offset voltage drift of 0.015 μV/°C, and typical noise of 97 nV p-p (0.1 Hz to 10 Hz, A_V = +100), the ADA4528-1 are well suited for applications in which error sources cannot be tolerated.

The ADA4528-1 have a wide operating supply range of 2.2 V to 5.5 V, high gain, and excellent CMRR and PSRR specifications, which make it ideal for applications that require precision amplification of low level signals, such as position and pressure sensors, strain gages, and medical instrumentation.

The ADA4528-1 are specified over the extended industrial temperature range (−40°C to +125°C). The ADA4528-1 are available in 8-lead MSOP and 8-lead LFCSP packages.

For more information about the ADA4528-1, see the AN-1114 Application Note, Lowest Noise Zero-Drift Amplifier Has 5.6 nV/√Hz Voltage Noise Density.
