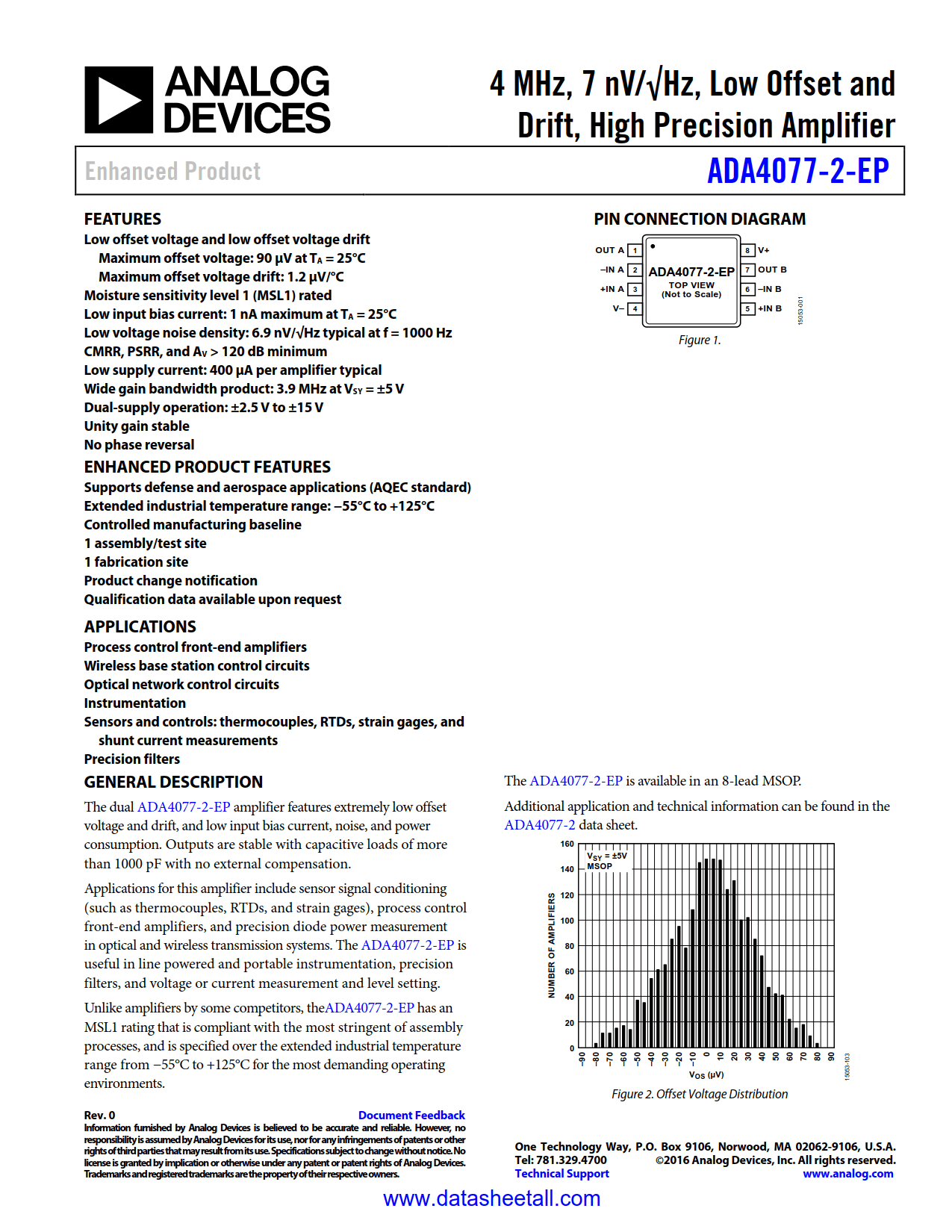

ADA4077-2-EP Datasheet

• Low offset voltage and low offset voltage drift
  • Maximum offset voltage: 90 µV at T_A = 25°C
  • Maximum offset voltage drift: 1.2 µV/°C
• Moisture sensitivity level 1 (MSL1) rated
• Low input bias current: 1 nA maximum at T_A = 25°C
• Low voltage noise density: 6.9 nV/√Hz typical at f = 1000 Hz
• CMRR, PSRR, and A_V > 120 dB minimum
• Low supply current: 400 µA per amplifier typical
• Wide gain bandwidth product: 3.9 MHz at V_SY = ±5 V
• Dual-supply operation: ±2.5 V to ±15 V
• Unity gain stable
• No phase reversal

• Supports defense and aerospace applications (AQEC standard)
• Extended industrial temperature range: −55°C to +125°C
• Controlled manufacturing baseline
• 1 assembly/test site
• 1 fabrication site
• Product change notification
• Qualification data available upon request

• Process control front-end amplifiers
• Wireless base station control circuits
• Optical network control circuits
• Instrumentation
• Sensors and controls: thermocouples, RTDs, strain gages, and shunt current measurements
• Precision filters

The dual ADA4077-2-EP amplifier features extremely low offset voltage and drift, and low input bias current, noise, and power consumption. Outputs are stable with capacitive loads of more than 1000 pF with no external compensation.

Applications for this amplifier include sensor signal conditioning (such as thermocouples, RTDs, and strain gages), process control front-end amplifiers, and precision diode power measurement in optical and wireless transmission systems. The ADA4077-2-EP is useful in line powered and portable instrumentation, precision filters, and voltage or current measurement and level setting.

Unlike amplifiers by some competitors, theADA4077-2-EP has an MSL1 rating that is compliant with the most stringent of assembly processes, and is specified over the extended industrial temperature range from −55°C to +125°C for the most demanding operating environments.

The ADA4077-2-EP is available in an 8-lead MSOP.

Additional application and technical information can be found in the ADA4077-2 data sheet.
