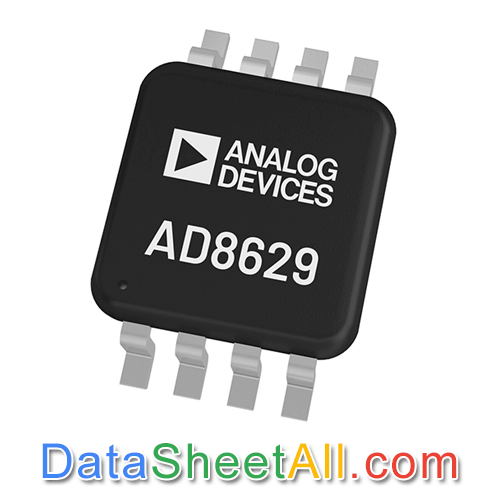

AD8629 Datasheet

• Lowest auto-zero amplifier noise
• Low offset voltage: 1 μV
• Input offset drift: 0.002 μV/°C
• Rail-to-rail input and output swing
• 5 V single-supply operation
• High gain, CMRR, and PSRR: 130 dB
• Very low input bias current: 100 pA maximum
• Low supply current: 1.0 mA
• Overload recovery time: 50 μs
• No external components required
• Qualified for automotive applications

• Automotive sensors
• Pressure and position sensors
• Strain gage amplifiers
• Medical instrumentation
• Thermocouple amplifiers
• Precision current sensing
• Photodiode amplifiers

This amplifier has ultralow offset, drift, and bias current. The AD8629 are wide bandwidth auto-zero amplifiers featuring rail-to-rail input and output swing and low noise. Operation is fully specified from 2.7 V to 5 V single supply (±1.35 V to ±2.5 V dual supply).

The AD8629 provide benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices, Inc., topology, these zero-drift amplifiers combine low cost with high accuracy and low noise. No external capacitor is required. In addition, the AD8629 greatly reduce the digital switching noise found in most chopper-stabilized amplifiers.

With an offset voltage of only 1 μV, drift of less than 0.005 μV/°C, and noise of only 0.5 μV p-p (0 Hz to 10 Hz), the AD8629 are suited for applications where error sources cannot be tolerated. Position and pressure sensors, medical equipment, and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range. Many systems can take advantage of the rail-to-rail input and output swings provided by the AD8629 to reduce input biasing complexity and maximize SNR.

The AD8629 are specified for the extended industrial temperature range (−40°C to +125°C). The AD8629 is available in the standard 8-lead narrow SOIC and MSOP plastic packages. See the Ordering Guide in the data sheet for automotive grades.
