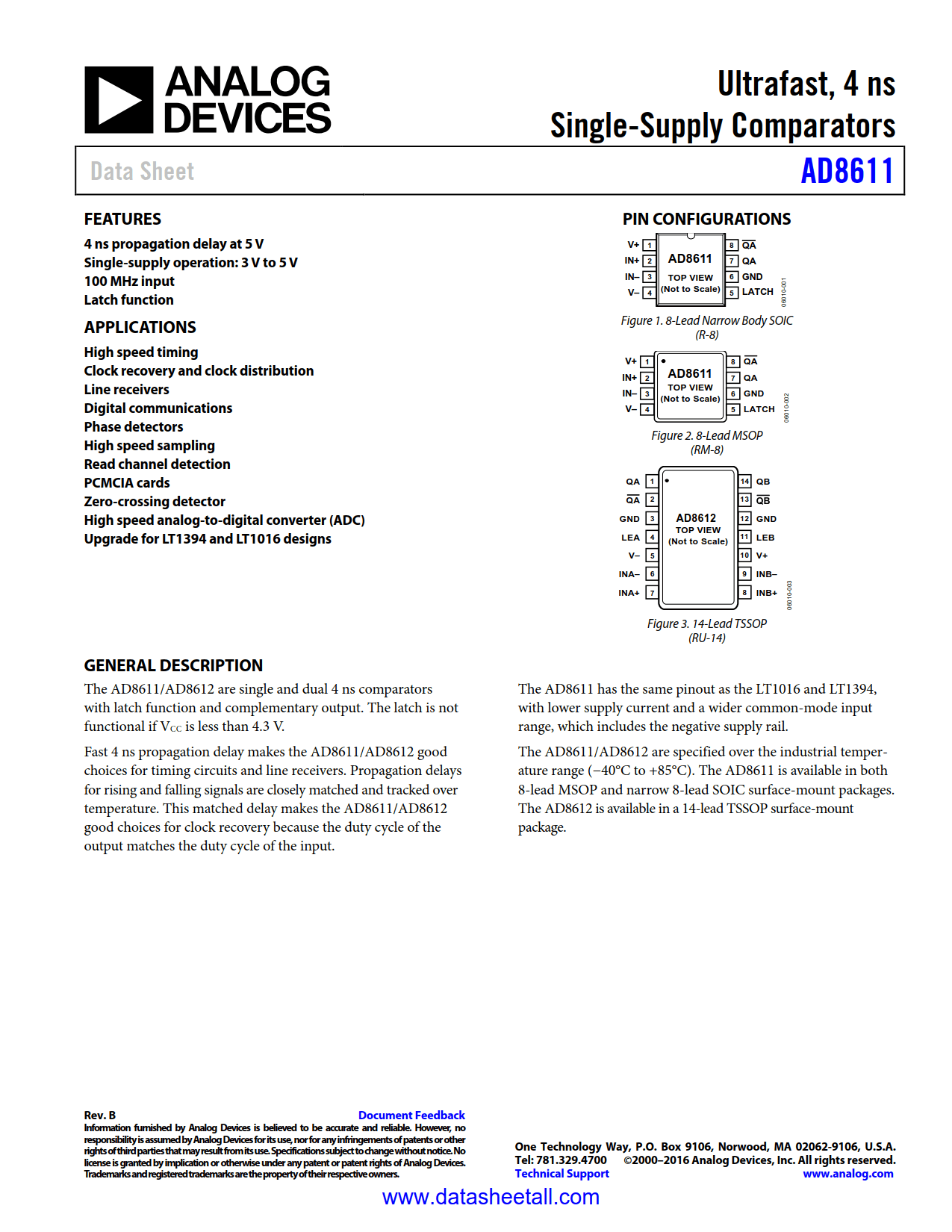

AD8611 Datasheet

• 4 ns propagation delay at 5 V
• Single-supply operation: 3 V to 5 V
• 100 MHz input
• Latch function

• High speed timing
• Clock recovery and clock distribution
• Line receivers
• Digital communications
• Phase detectors
• High speed sampling
• Read channel detection
• PCMCIA cards
• Zero-crossing detector
• High speed analog-to-digital converter (ADC)
• Upgrade for LT1394 and LT1016 designs

The AD8611 are single and dual 4 ns comparators with latch function and complementary output. The latch is not functional if V_CC is less than 4.3 V.

Fast 4 ns propagation delay makes the AD8611 good choices for timing circuits and line receivers. Propagation delays for rising and falling signals are closely matched and tracked over temperature. This matched delay makes the AD8611 good choices for clock recovery because the duty cycle of the output matches the duty cycle of the input.

The AD8611 has the same pinout as the LT1016 and LT1394, with lower supply current and a wider common-mode input range, which includes the negative supply rail.

The AD8611 are specified over the industrial temperature range (−40°C to +85°C). The AD8611 is available in both 8-lead MSOP and narrow 8-lead SOIC surface-mount packages.
