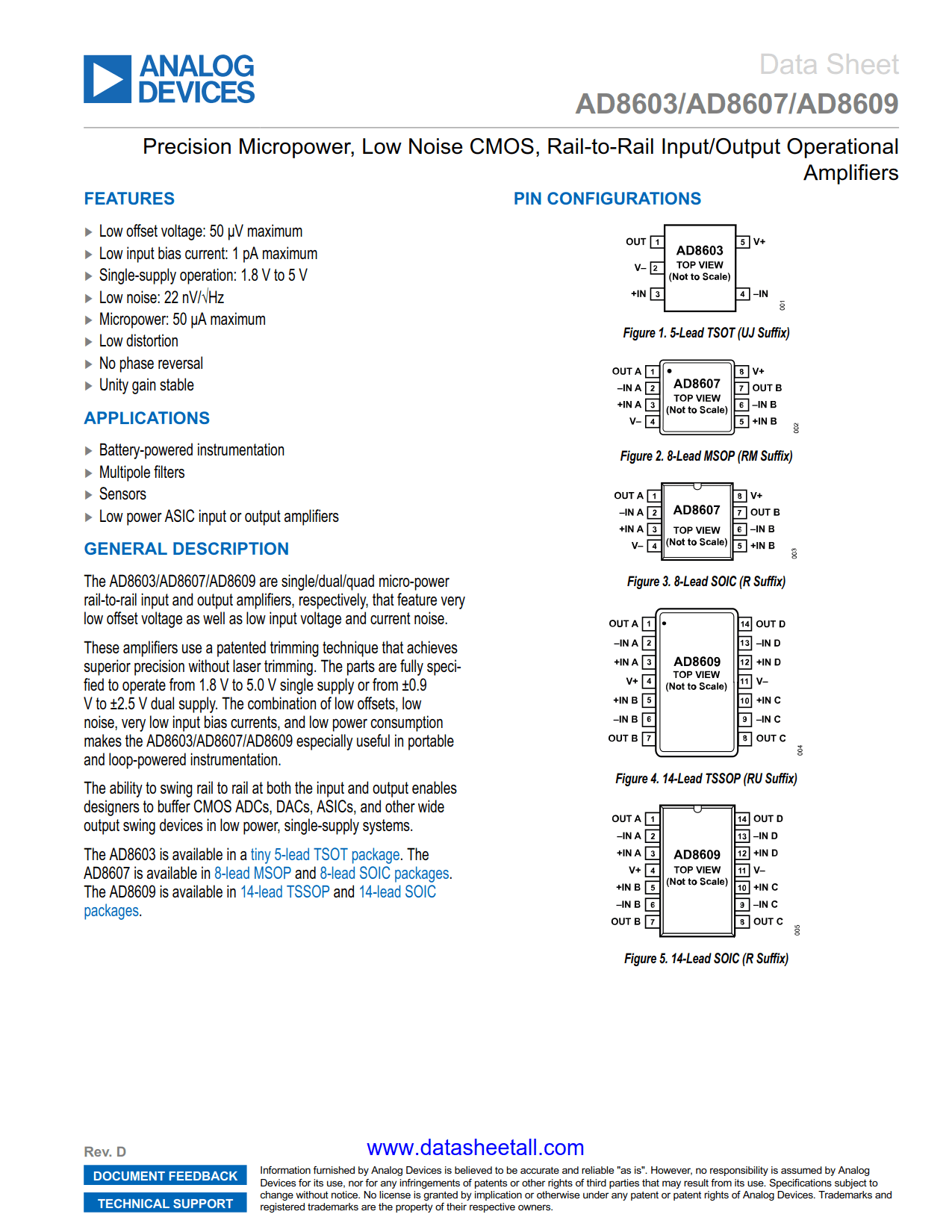

AD8607 Datasheet
Precision Dual MicroPower Rail-to-Rail Input/Output Amplifier
Precision Dual MicroPower Rail-to-Rail Input/Output Amplifier
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
| AD8607ARMZ | 0 | $1.755 | Tube | 50 | A0G | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP |
| AD8607ARMZ-R2 | 0 | $1.755 | Reel | 250 | A0G | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP |
| AD8607ARMZ-REEL | 6000pcs | $1.755 | Reel | 3000 | A0G | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP |
| AD8607ARZ | 0 | $1.755 | Tube | 98 | 8607A | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC |
| AD8607ARZ-REEL | 0 | $1.755 | Reel | 2500 | 8607A | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC |
| AD8607ARZ-REEL7 | 5000pcs | $1.755 | Reel | 1000 | 8607A | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC |
The AD8607 are dual micro-power rail-to-rail input and output amplifiers, respectively, that feature very low offset voltage as well as low input voltage and current noise.
These amplifiers use a patented trimming technique that achieves superior precision without laser trimming. The parts are fully specified to operate from 1.8 V to 5.0 V single supply or from ±0.9 V to ±2.5 V dual supply. The combination of low offsets, low noise, very low input bias currents, and low power consumption makes the AD8607 especially useful in portable and loop-powered instrumentation.
The ability to swing rail to rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems.
The AD8607 is available in 8-lead MSOP and 8-lead SOIC packages.
