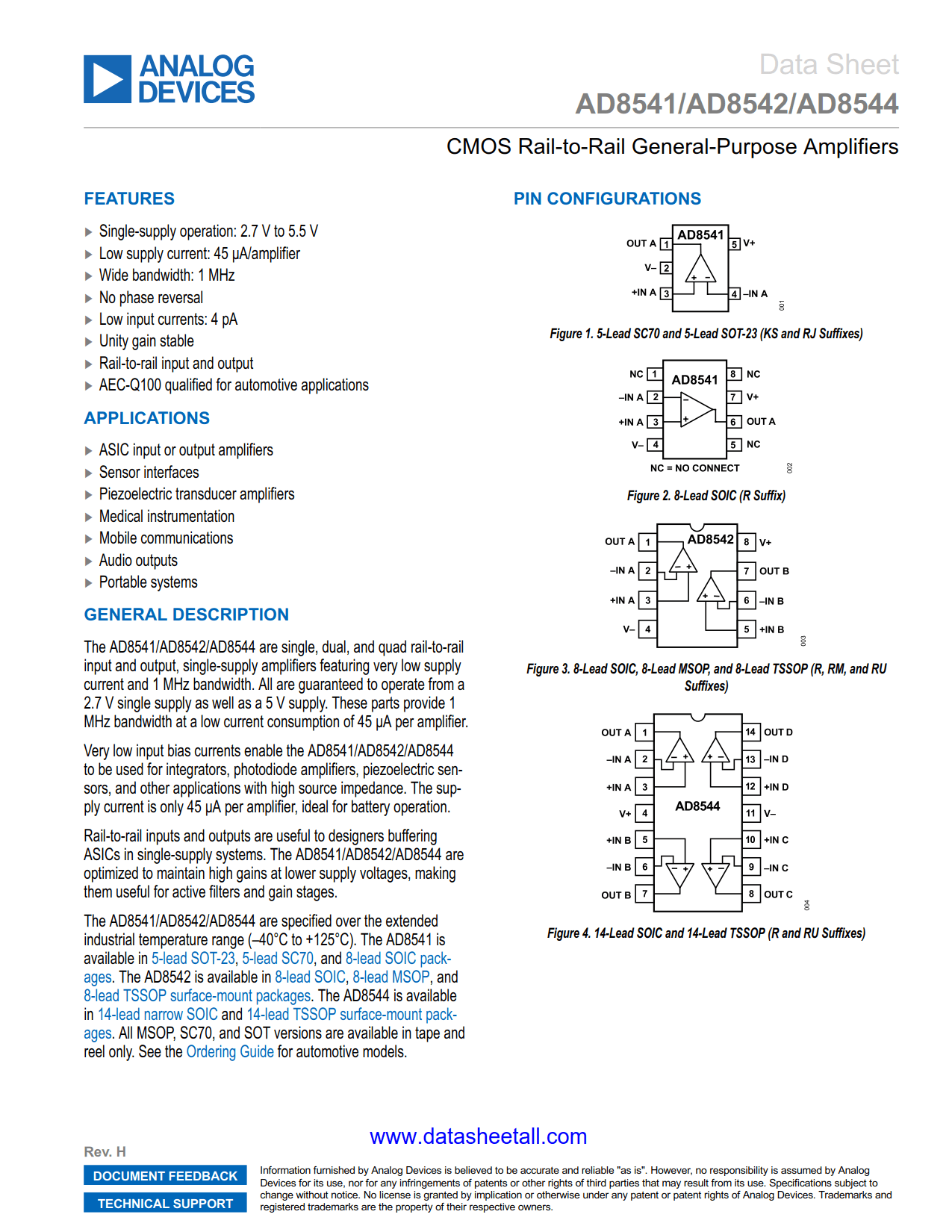

AD8541 Datasheet

• Single-supply operation: 2.7 V to 5.5 V
• Low supply current: 45 μA/amplifier
• Wide bandwidth: 1 MHz
• No phase reversal
• Low input currents: 4 pA
• Unity gain stable
• Rail-to-rail input and output
• AEC-Q100 qualified for automotive applications

• ASIC input or output amplifiers
• Sensor interfaces
• Piezoelectric transducer amplifiers
• Medical instrumentations
• Mobile communications
• Audio outputs
• Portable systems

The AD8541 are single rail-to-rail input and output single-supply amplifiers featuring very low supply current and 1 MHz bandwidth. All are guaranteed to operate from a 2.7 V single supply as well as a 5 V supply. These parts provide 1 MHz bandwidth at a low current consumption of 45 μA per amplifier.

Very low input bias currents enable the AD8541 to be used for integrators, photodiode amplifiers, piezoelectric sensors, and other applications with high source impedance. The supply current is only 45 μA per amplifier, ideal for battery operation.

Rail-to-rail inputs and outputs are useful to designers buffering ASICs in single-supply systems. The AD8541 are optimized to maintain high gains at lower supply voltages, making them useful for active filters and gain stages.

The AD8541 are specified over the extended industrial temperature range (–40°C to +125°C). The AD8541 is available in 8-lead SOIC, 5-lead SC70, and 5-lead SOT-23 packages.  All SC70, and SOT versions are available in tape and reel only.
