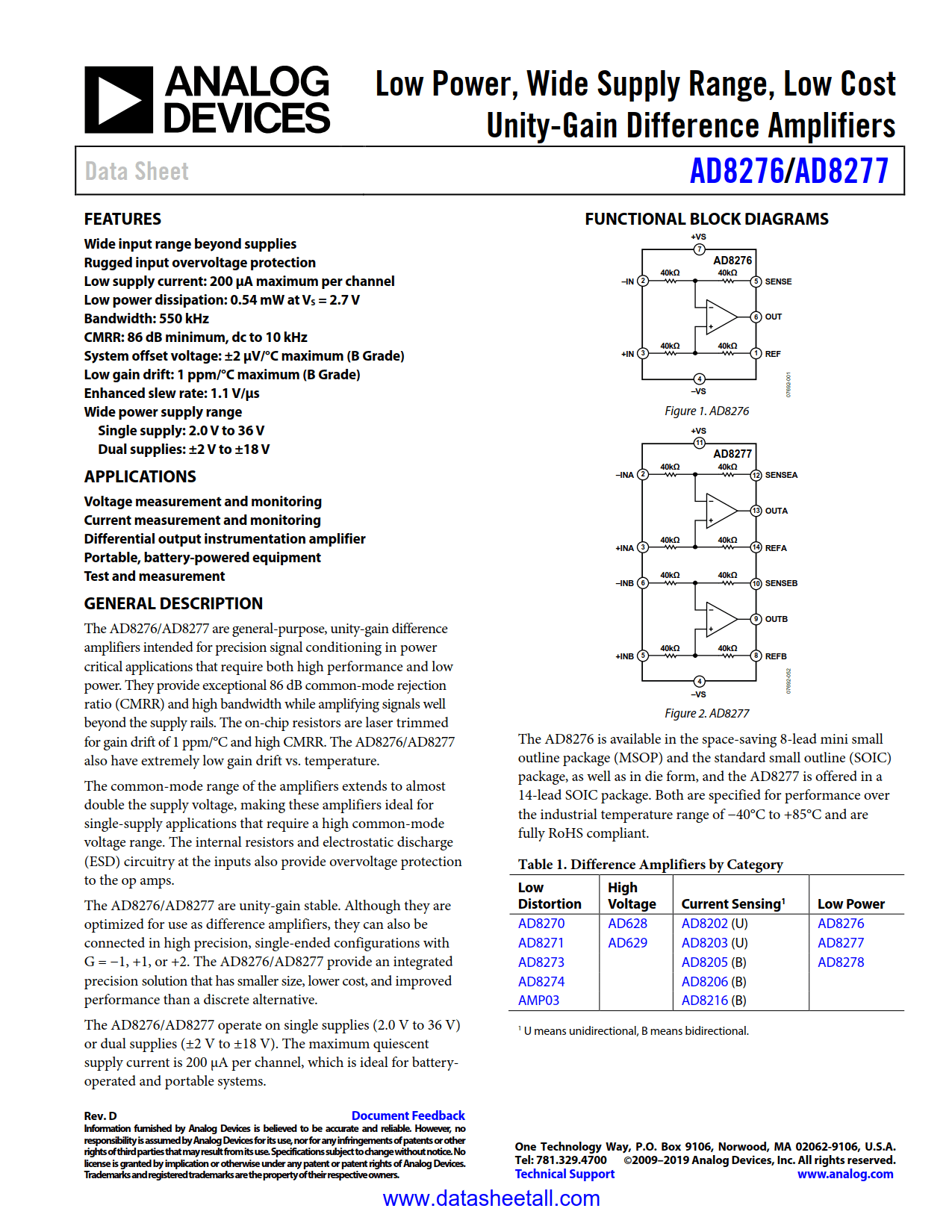

AD8277 Datasheet
Low Power, Wide Supply Range, Low Cost Unity-Gain Difference Amplifiers
Low Power, Wide Supply Range, Low Cost Unity-Gain Difference Amplifiers
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
The AD8277 are general-purpose, unity-gain difference amplifiers intended for precision signal conditioning in power critical applications that require both high performance and low power. They provide exceptional 86 dB common-mode rejection ratio (CMRR) and high bandwidth while amplifying signals well beyond the supply rails. The on-chip resistors are laser trimmed for gain drift of 1 ppm/°C and high CMRR. The AD8277 also have extremely low gain drift vs. temperature.
The common-mode range of the amplifiers extends to almost double the supply voltage, making these amplifiers ideal for single-supply applications that require a high common-mode voltage range. The internal resistors and electrostatic discharge (ESD) circuitry at the inputs also provide overvoltage protection to the op amps.
The AD8277 are unity-gain stable. Although they are optimized for use as difference amplifiers, they can also be connected in high precision, single-ended configurations with G = −1, +1, or +2. The AD8277 provide an integrated precision solution that has smaller size, lower cost, and improved performance than a discrete alternative.
The AD8277 operate on single supplies (2.0 V to 36 V) or dual supplies (±2 V to ±18 V). The maximum quiescent supply current is 200 μA per channel, which is ideal for battery-operated and portable systems.
The AD8277 is offered in a 14-lead SOIC package. The AD8277 is specified for performance over the industrial temperature range of −40°C to +85°C and are fully RoHS compliant.
