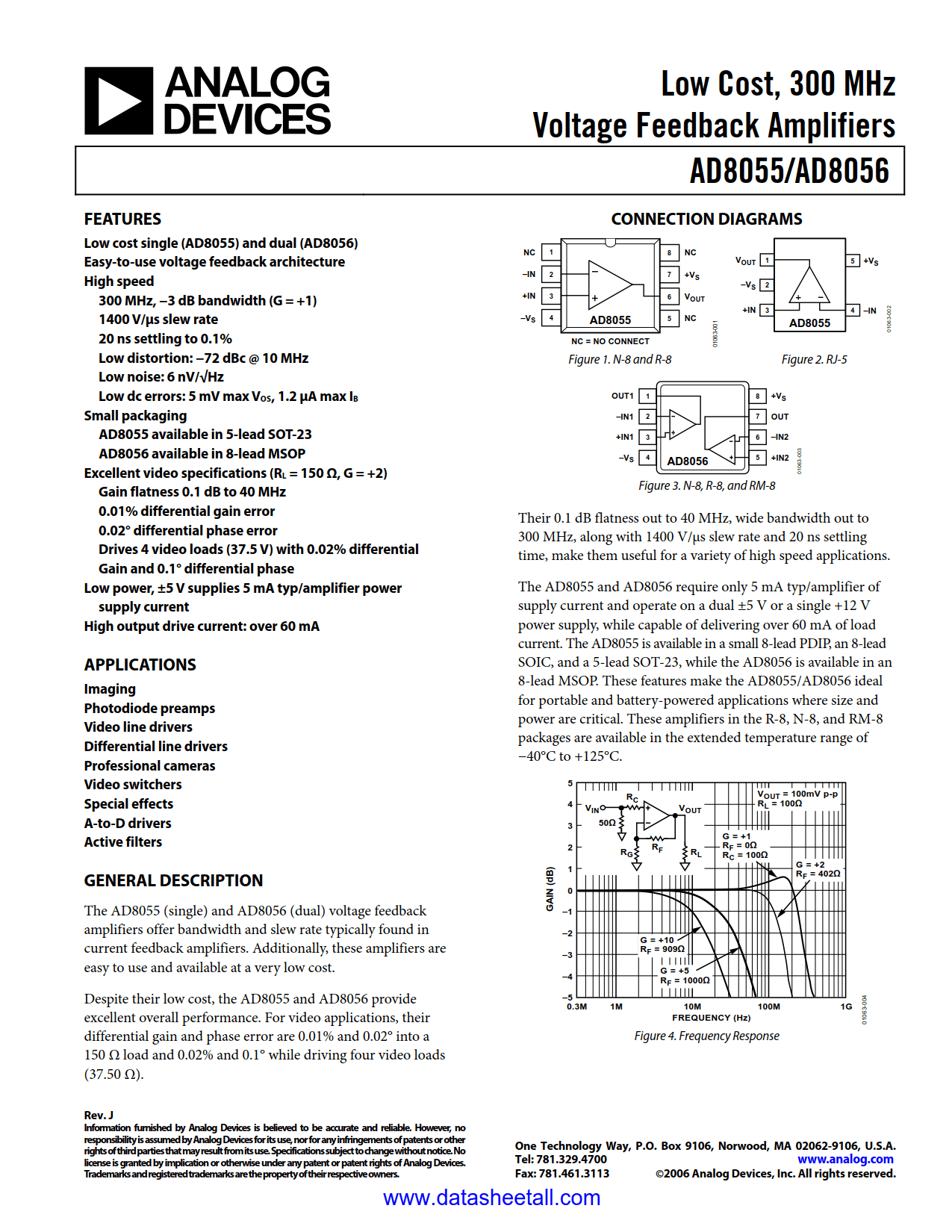

AD8056 Datasheet

• Low cost
• Easy to use voltage feedback architecture
• High speed
  300 MHz, -3 dB bandwidth (G = +1)
  1400 V/µs slew rate
  20 ns settling to 0.1%
  Low distortion: -72 dBc @ 10 MHz
  Low noise: 6 nV/√Hz
  Low dc rrrors: 5mV max VOS, 1.2 µA max IB
• Small packaging
• High output drive current: over 60 mA
• Excellent video specifications
  (R_L = 150 Ω, G = +2)
  Gain flatness 0.1 dB to 40 MHz
  0.01% differential gain error
  0.02° differential phase error
• Drives 4 video loads (37.5 V) with 0.02% differential gain and 0.1° differential phase
• Low power, ±5 V supplies 5 mA typ/amplifier power supply current

• Imaging
• Photodiode preamps
• Video line drivers
• Differential line drivers
• Professional cameras
• Video switchers
• Special effects
• A-to-D drivers
• Active filters

The AD8056 (dual) voltage feedback amplifier offers bandwidth and slew rate typically found in current feedback amplifiers. Additionally, this amplifier is easy to use and available at a very low cost.

Despite its low cost, the AD8056 provides excellent overall performance. For video applications, its differential gain and phase error is 0.01% and 0.02° into a 150 Ω load, and 0.02% and 0.1° while driving four video loads (37.50 Ω).

Its 0.1 dB flatness out to 40 MHz, wide bandwidth out to 300 MHz, along with 1400 V/µs slew rate and 20 ns settling time, make them useful for a variety of high-speed applications.

The AD8056 requires only 5 mA typ/amplifier of supply current and operates on a dual ±5 V or single +12 V power supply, while capable of delivering over 60 mA of load current. The AD8056 is available in a small 8-lead PDIP, 8-lead SOIC, and 8-lead MSOP packages. These features make the AD8056 ideal for portable and battery powered applications where size and power are critical. This amplifier in the R-8, N-8 and RM-8 packages are available in the extended temperature range of -40°C to +125°C.

AD8056 (Dual) PDIP-8, SOIC-8 and MSOP-8
