AD8012 Datasheet

• Low Power
  • 1.7 mA/Amplifier Supply Current
  • Fully Specified for ±5 V and +5 V Supplies
• High Output Current, 125 mA
• High Speed
  • 350 MHz, –3 dB Bandwidth (G = +1)
  • 150 MHz, –3 dB Bandwidth (G = +2)
  • 2,250 V/µs Slew Rate
  • 20 ns Settling Time to 0.1%
• Low Distortion
  • –72 dBc Worst Harmonic @ 500 kHz, R_L = 100 Ω
  • –66 dBc Worst Harmonic @ 5 MHz, R_L = 1 k Ω
• Good Video Specifications (R_L = 1 kΩ, G = +2)
  • 0.02% Differential Gain Error
  • 0.06° Differential Phase Error
  • Gain Flatness 0.1 dB to 40 MHz
  • 60 ns Overdrive Recovery
• Low Offset Voltage, 1.5 mV
• Low Voltage Noise, 2.5 nV/√Hz
• Available in 8-Lead SOIC and 8-Lead MSOP

• XDSL, HDSL Line Drivers
• ADC Buffers
• Professional Cameras
• CCD Imaging Systems
• Ultrasound Equipment
• Digital Cameras

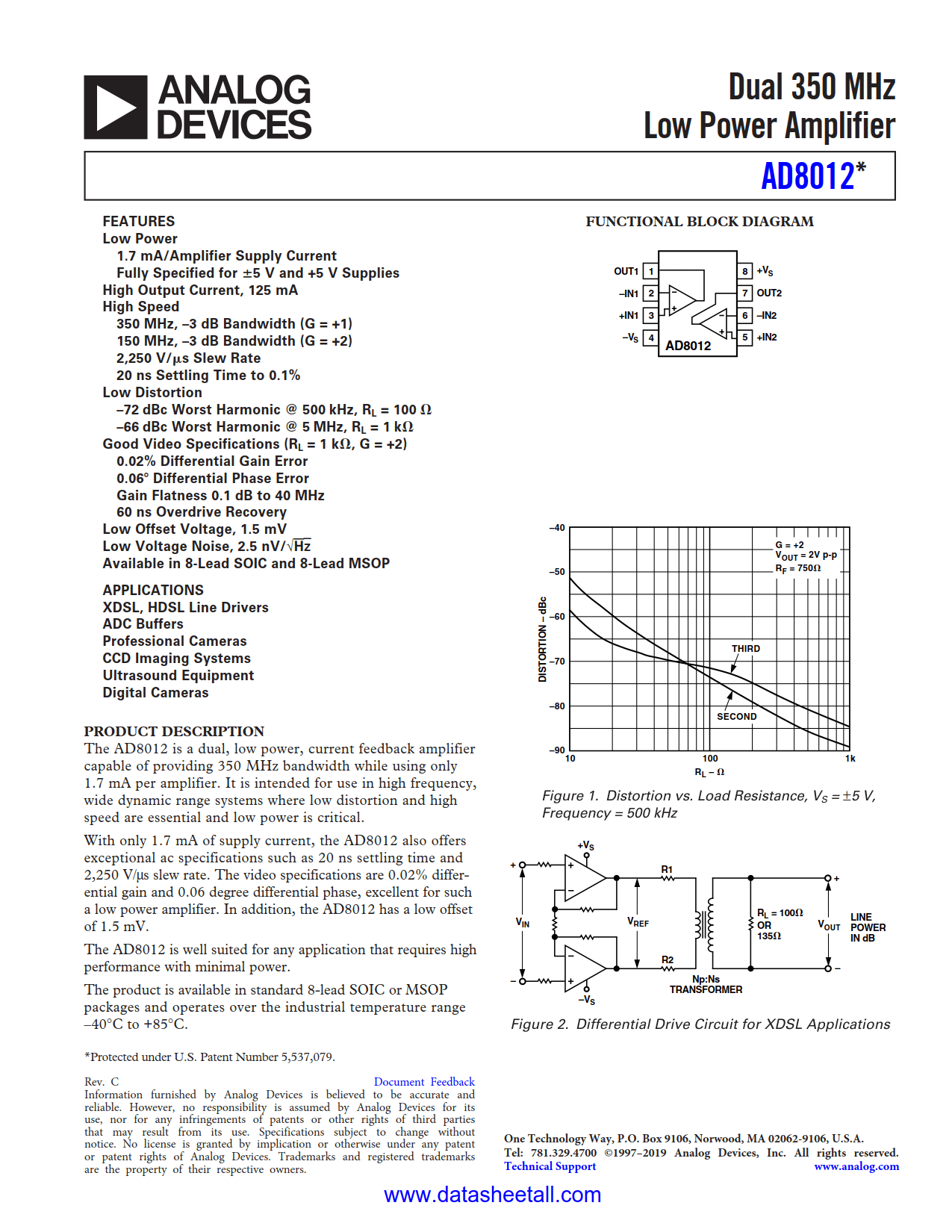

The AD8012 is a dual, low power, current feedback amplifier capable of providing 350 MHz bandwidth while using only 1.7 mA per amplifier. It is intended for use in high frequency, wide dynamic range systems where low distortion and high speed are essential and low power is critical.

With only 1.7 mA of supply current, the AD8012 also offers exceptional ac specifications such as 20 ns settling time and 2,250 V/μs slew rate. The video specifications are 0.02% differential gain and 0.06 degree differential phase, excellent for such a low power amplifier. In addition, the AD8012 has a low offset of 1.5 mV.

The AD8012 is well suited for any application that requires high performance with minimal power.

The product is available in standard 8-lead SOIC or MSOP packages and operates over the industrial temperature range –40°C to +85°C.
