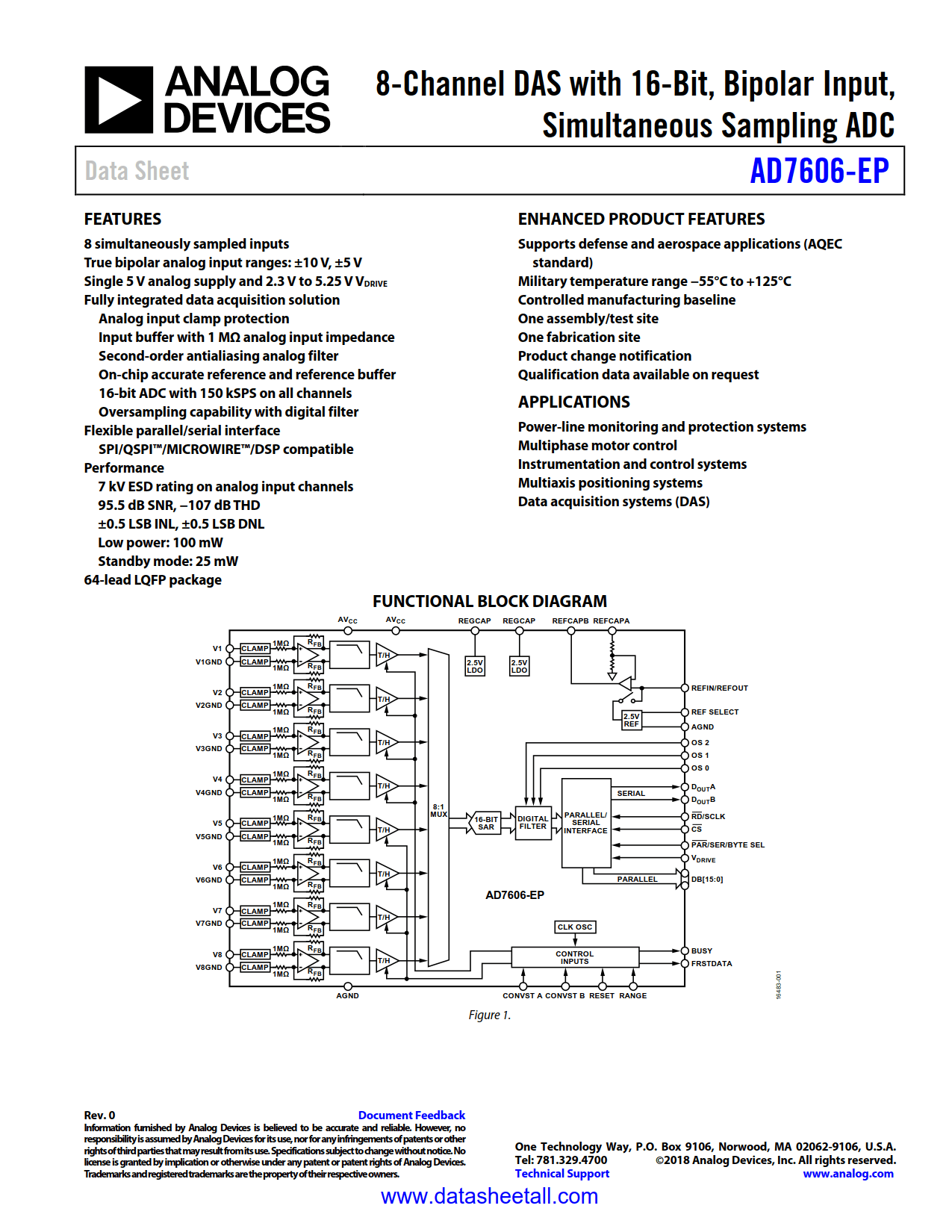

AD7606-EP Datasheet

• 8 simultaneously sampled inputs
• True bipolar analog input ranges: ±10 V, ±5 V
• Single 5 V analog supply and 2.3 V to 5 V V_DRIVE
• Fully integrated data acquisition solution
  • Analog input clamp protection
  • Input buffer with 1 MΩ analog input impedance
  • Second-order antialiasing analog filter
  • On-chip accurate reference and reference buffer
  • 16-bit ADC with 200 kSPS on all channels
  • Oversampling capability with digital filter
• Flexible parallel/serial interface
  • SPI/QSPI^™/MICROWIRE^™/DSP compatible
• Performance
  • 7 kV ESD rating on analog input channels
  • 95.5 dB SNR, −107 dB THD
  • ±0.5 LSB INL, ±0.5 LSB DNL
  • Low power: 100 mW
  • Standby mode: 25 mW
• 64-lead LQFP package

ENHANCED PRODUCT FEATURES

• Supports defense and aerospace applications (AQEC standard)
• Military temperature range −55°C to +125°C
• Controlled manufacturing baseline
• One assembly/test site
• One fabrication site
• Product change notification
• Qualification data available on request

• Power-line monitoring and protection systems
• Multiphase motor control
• Instrumentation and control systems
• Multiaxis positioning systems
• Data acquisition systems (DAS)

The AD7606-EP is a 16-bit, simultaneous sampling, analog-to-digital, data acquisition system (DAS) with eight channels. The device contains analog input clamp protection, a second-order antialiasing filter, a track-and-hold amplifier, a 16-bit charge redistribution successive approximation analog-to-digital converter (ADC), a flexible digital filter, a 2.5 V reference and reference buffer, and high speed serial and parallel interfaces.

The AD7606-EP operates from a single +5 V supply and can accommodate ±10 V and ±5 V true bipolar input signals while sampling at throughput rates up to 150 kSPS for all channels.

The input clamp protection circuitry can tolerate voltages up to ±16.5 V. The AD7606-EP has 1 MΩ analog input impedance regardless of sampling frequency. The single-supply operation,on-chip filtering, and high input impedance eliminate the need for driver op amps and external bipolar supplies. The AD7606-EP antialiasing filter has a 3 dB cutoff frequency of 23 kHz. The flexible digital filter is pin driven, yields improvements in SNR,and reduces the 3 dB bandwidth.

Additional application and technical information can be found in the AD7606 data sheet.
