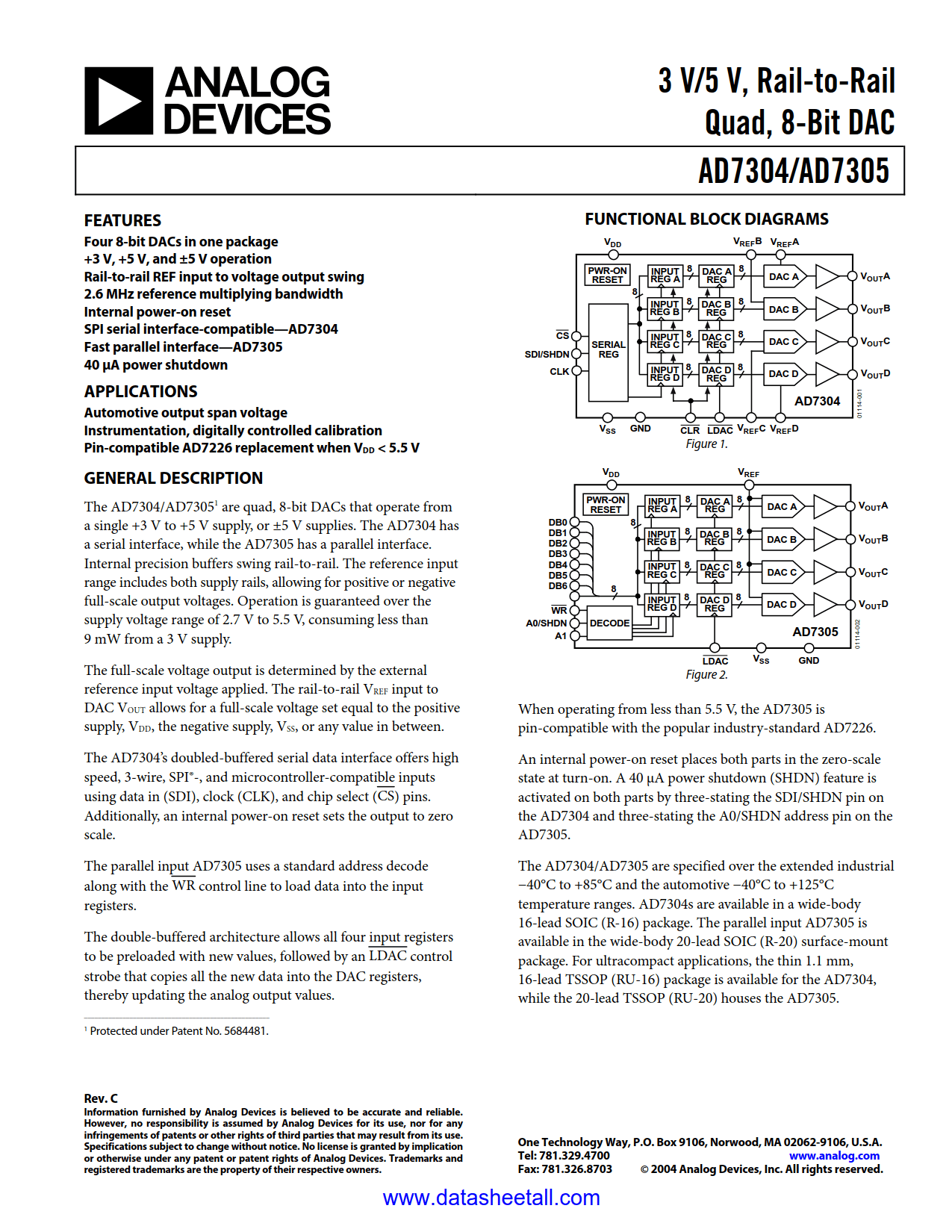

AD7305 Datasheet

• +3 V, +5 V, and ±5 V Operation
• Rail-to-Rail REF Input to Voltage Output Swing
• Compact 1.1 mm Height TSSOP 16-/20-Lead Package
• 2.6 MHz Reference Multiplying Bandwidth
• Four 8-Bit DACs in One Package
• Internal Power-On Reset
• Fast Parallel Interface - AD7305
• 40 µA Power Shutdown

• Automotive output span voltage
• Instrumentation, digitally controlled calibration
• Pin-compatible AD7226 replacement when VDD < 5.5 V

The AD7305 are quad, 8-bit DACs that operate from a single +3 V to +5 V supply or ±5 V supplies. The AD7305 has a parallel interface. Internal precision buffers swing rail-to-rail. The reference input range includes both supply rails allowing for positive or negative full-scale output voltages. Operation is guaranteed over the supply voltage range of +2.7 V, +5.5 V to ±5 V consuming less than 9 mW from a +3 V supply. The full-scale voltage output is determined by the external reference input voltage applied. The rail-to-rail V_REF input to DAC V_OUT allows for a full-scale voltage set equal the positive supply V_DD, the negative supply V_SS or any value in between.

The parallel input AD7305 uses a standard address decode along with the WR control line to load data into the input registers.

The double buffered architecture allows all four input registers to be preloaded with new values followed by a LDAC control strobe which copies all the new data into the DAC registers thereby updating the analog output values. The AD7305 is pin-compatible with the popular industry standard AD7226 when operating from less than +5.5 V.

An internal power ON reset places both parts in the zero-scale state at turn ON. A 40 µA power shutdown (SHDN) feature is activated on both parts by tri-stating the A0/SHDN address pin on the AD7305. The AD7305 are specified over the extended industrial (−40°C to +85°C), and the automotive (−40°C to +125°C) temperature ranges.
