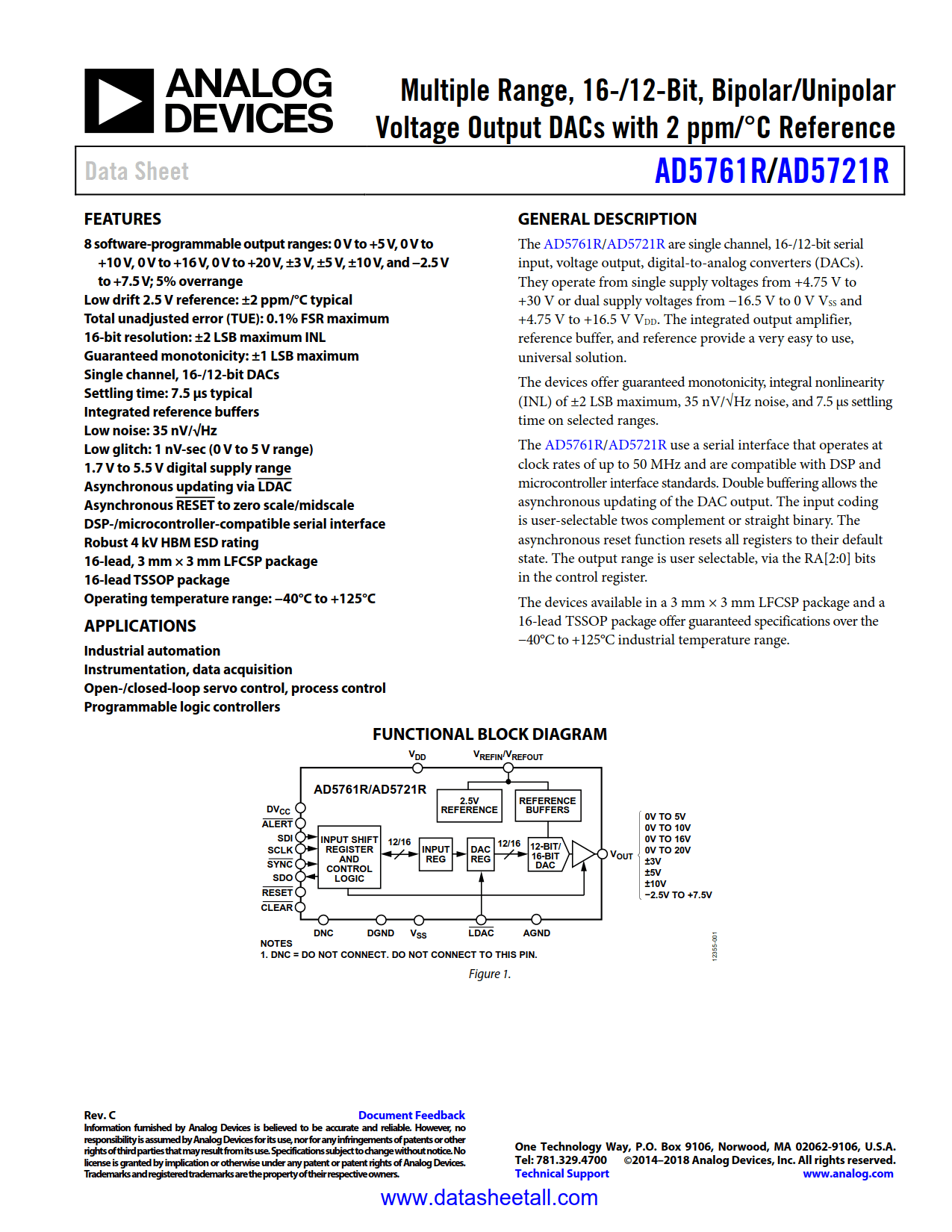

AD5721R Datasheet

Part No.

In Stock

Price

Packaging

SPQ

Marking

MSL

Pins

Temp Range

Package Description

• 8 software-programmable output ranges: 0 V to +5 V, 0 V to +10 V, 0 V to +16 V, 0 V to +20 V, ±3 V, ±5 V, ±10 V, and −2.5 V to +7.5 V; 5% overrange
• Low drift 2.5 V reference: ±2 ppm/°C typical
• Total unadjusted error (TUE): 0.1% FSR maximum
• 16-bit resolution: ±2 LSB maximum INL
• Guaranteed monotonicity: ±1 LSB maximum
• Single channel, 12-bit DACs
• Settling time: 7.5 μs typical
• Integrated reference buffers
• Low noise: 35 nV/√Hz
• Low glitch: 1 nV-sec (0 V to 5 V range)
• 1.7 V to 5.5 V digital supply range
• Asynchronous updating via LDAC
• Asynchronous RESET to zero scale/midscale
• DSP-/microcontroller-compatible serial interface
• Robust 4 kV HBM ESD rating
• 16-lead, 3 mm × 3 mm LFCSP package
• 16-lead TSSOP package
• Operating temperature range: −40°C to +125°C

• Industrial automation
• Instrumentation, data acquisition
• Open-/closed-loop servo control, process control
• Programmable logic controllers

The AD5721R are single channel, 12-bit serial input, voltage output, digital-to-analog converters (DACs). They operate from single supply voltages from +4.75 V to +30 V or dual supply voltages from −16.5 V to 0 V V_SS and +4.75 V to +16.5 V V_DD. The integrated output amplifier, reference buffer, and reference provide a very easy to use, universal solution.

The devices offer guaranteed monotonicity, integral nonlinearity (INL) of ±2 LSB maximum, 35 nV/√Hz noise, and 7.5 μs settling time on selected ranges. The AD5721R use a serial interface that operates at clock rates of up to 50 MHz and are compatible with DSP and microcontroller interface standards. Double buffering allows the asynchronous updating of the DAC output. The input coding is user-selectable twos complement or straight binary. The asynchronous reset function resets all registers to their default state. The output range is user selectable, via the RA[2:0] bits in the control register. The devices available in a 3 mm × 3 mm LFCSP package and a 16-lead TSSOP package offer guaranteed specifications over the −40°C to +125°C industrial temperature range.
