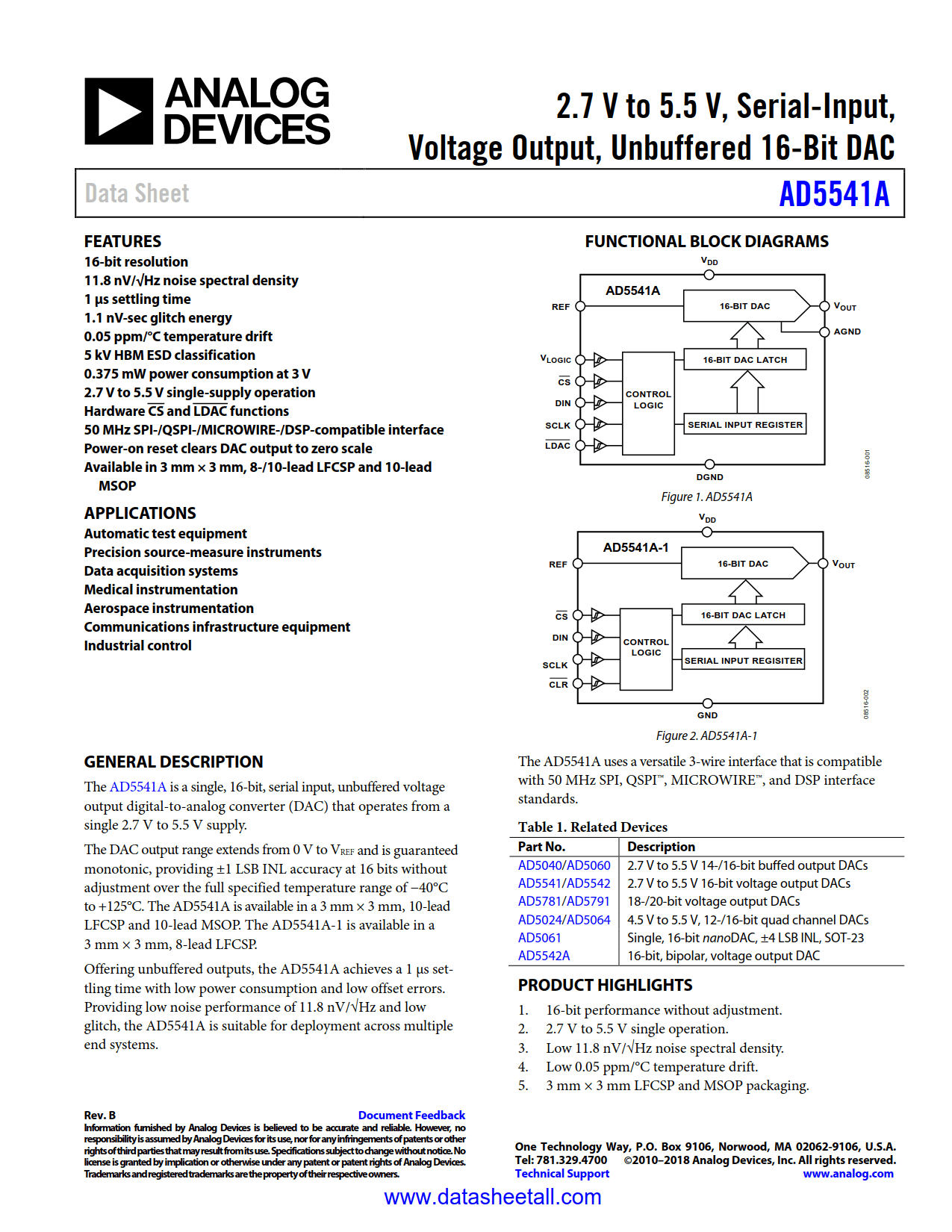

AD5541A Datasheet

• 16-bit resolution
• 11.8 nV/√Hz noise spectral density
• 1 μs settling time
• 1.1 nV-sec glitch energy
• 0.05 ppm/°C temperature drift
• 5 kV HBM ESD classification
• 0.375 mW power consumption at 3 V
• 2.7 V to 5.5 V single-supply operation
• Hardware CS and LDAC functions
• 50 MHz SPI-/QSPI-/MICROWIRE-/DSP-compatible interface
• Power-on reset clears DAC output to zero scale
• Available in 3 mm × 3 mm, 8-/10-lead LFCSP and 10-lead MSOP

• Automatic test equipment
• Precision Source-measure Instruments
• Data Acquisition Systems
• Medical Instrumentation
• Aerospace Instrumentation
• Communications Infrastructure equipment
• Industrial Control

The AD5541A is a single, 16-bit, serial input, unbuffered voltage output digital-to-analog converter (DAC) that operate from a single 2.7 V to 5.5 V supply.

The DAC output range extends from 0 V to VREF and is guaranteed monotonic, providing ±1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +125°C. The AD5541A is available in a 3 mm × 3 mm, 10-lead LFCSP and 10-lead MSOP. The AD5541A-1 is available in a 3 mm × 3 mm, 8-lead LFCSP.

Offering unbuffered outputs, the AD5541A achieves a 1 μs set-tling time with low power consumption and low offset errors. Providing low noise performance of 11.8 nV/√Hz and low glitch, the AD5541A is suitable for deployment across multiple end systems.

The AD5541A uses a versatile 3-wire interface that is compatible with a 50 MHz SPI, QSPI™, MICROWIRE™, and DSP interface standards.
