AD3531 Datasheet

• 16-bit resolution, ±3 LSB_{16 INL, ±1 LSB16 DNL}
• TUE: ±0.22% of FSR maximum
• Offset error: ±1.5mV maximum
• Gain error: ±0.26% of FSR maximum
• Guaranteed sourcing current of 100 mA
• Ultra-low headroom: 12mV at 20mA load
• 2.5V internal voltage reference, 5ppm/°C, typical
• 55nV/√Hz noise spectral density (external reference)
• 96nV/√Hz noise spectral density (internal reference)
• Output voltage, current, and die temperature monitors
• 50MHz SPI write and read
• 2.7V to 5.5V power supply range
• 1.2V or 1.8V compatible digital interface
• Operating temperature range: −40°C to +125°C
• Small package: 2.1 mm × 2.2 mm, 25-ball WLCSP

• Optical transceivers
• Test and measurement
• Industrial automation
• Data acquisition systems

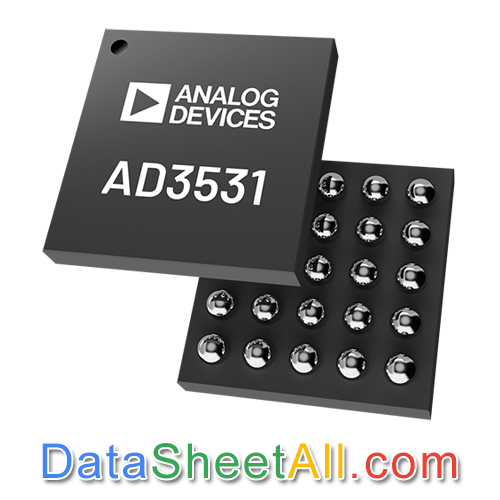

The AD3531 are low power, 4-channel, 16-bit, buffered voltage output, digital-to-analog converters (DACs) that include software-programmable gain controls that result in full-scale output spans of 2.5V or 5V for reference voltages of 2.5V. The devices operate from single, 2.7V to 5.5V supply ranges and are guaranteed monotonic by design.

The devices include integrated multiplexers that allow monitoring of output voltages, currents, and internal die temperature. The AD3531 are available in 2.1 mm × 2.2 mm, 25-ball WLCSP packages. The devices incorporate power-on reset (POR) circuits that ensure that the DACs output power up to and present at 16kΩ to ground until a valid write is executed. The DACs also contain power-down modes that reduce the current consumption down to 620μA, typical.

The serial peripheral interface (SPI) and MICROWIRE^®-compatible, 4-wire serial interface operates on logic levels as low as 1.08V up to 1.98V and clock rates up to 50MHz.
