BAS521 Datasheet

BAS521 Datasheet

High-voltage switching diode

Part No.:
BAS521
Manufacturer:
Nexperia
Page:
9 Pages
Size:
233 KB
Views:
0
Update Time:
2025-11-21 15:36:24
DataSheet:
BAS521 Datasheet PDF Download

BAS521 DataSheet Applicable Part

Part No. In Stock Price Packaging SPQ Marking MSL Pins Temp Range Package Description
SPQ：Standard Pack Quantity；MSL：Moisture Sensitivity Level

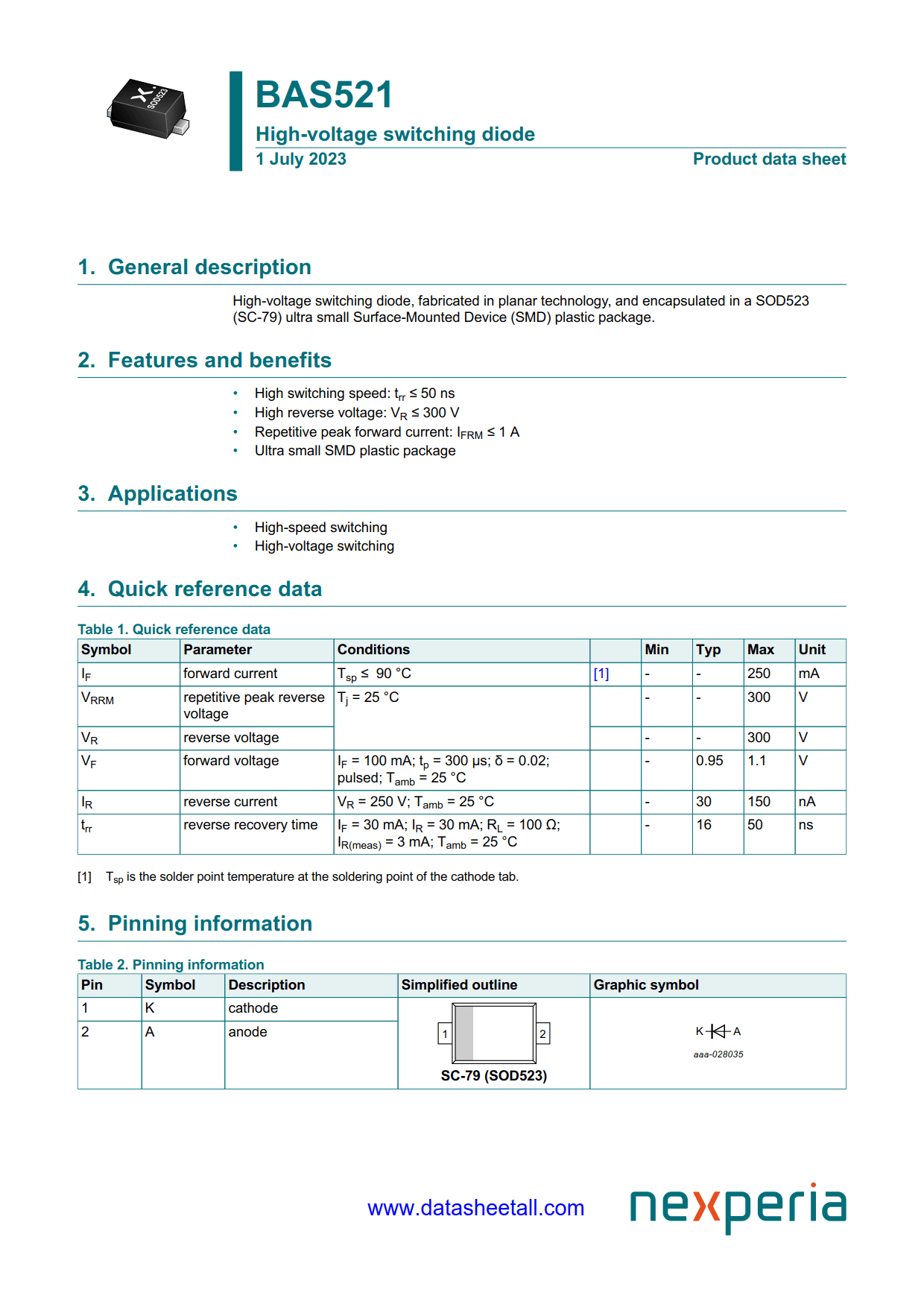

BAS521 DataSheet PDF

BAS521 Features

  • High switching speed: trr ≤ 50 ns
  • High reverse voltage: VR ≤ 300 V
  • Repetitive peak forward current: IFRM ≤ 1 A
  • Ultra small SMD plastic package

BAS521 Applications

  • High-speed switching
  • High-voltage switching

BAS521 Description

High-voltage switching diode, fabricated in planar technology, and encapsulated in a SOD523 (SC-79) ultra small Surface-Mounted Device (SMD) plastic package.
