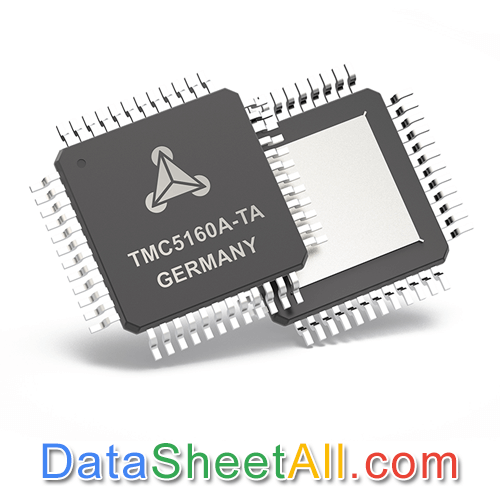

TMC5160 Datasheet

Part No.

In Stock

Price

Packaging

SPQ

Marking

MSL

Pins

Temp Range

Package Description

• 2-phase stepper motors from 1 to several 10A coil current
• Motion Controller with SixPoint™ ramp
• Step/Dir Interface with microstep interpolation MicroPlyer™
• Voltage Range 8 to 60V DC
• SPI & Single Wire UART
• Encoder Interface and 2x Ref.-Switch Input
• Highest Resolution 256 microsteps per full step
• StealthChop2™ for quiet operation and smooth motion
• Passive Braking and freewheeling mode
• Resonance Dampening for mid-range resonances
• SpreadCycle™ highly dynamic motor control chopper
• DcStep™ load dependent speed control
• StallGuard2™ high precision sensorless motor load detection
• CoolStep™ current control for energy savings up to 75%
• Full Protection & Diagnostics
• Compact Size 7x7mm2 (body) TQFP48 package / 8x8mm² QFN

• Robotics & Industrial Drives
• Textile, Sewing Machines
• Packing Machines
• Factory & Lab Automation
• High-speed 3D Printers
• Liquid Handling
• Medical
• Office Automation
• CCTV
• ATM, Cash Recycler
• Pumps and Valves

The TMC5160 is a high power stepper motor controller and driver IC with serial communication interfaces. It combines a flexible ramp generator for automatic target positioning with industries’ most advanced stepper motor driver. Using external transistors, highly dynamic, high torque drives can be realized. Based on ADI Trinamic's sophisticated SpreadCycle™ and StealthChop™ choppers, the driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions. The complete solution reduces learning curve to a minimum while giving best performance in class. TMC5160-WA uses a wettable flank package to allow optical inspection of the soldering joints.
