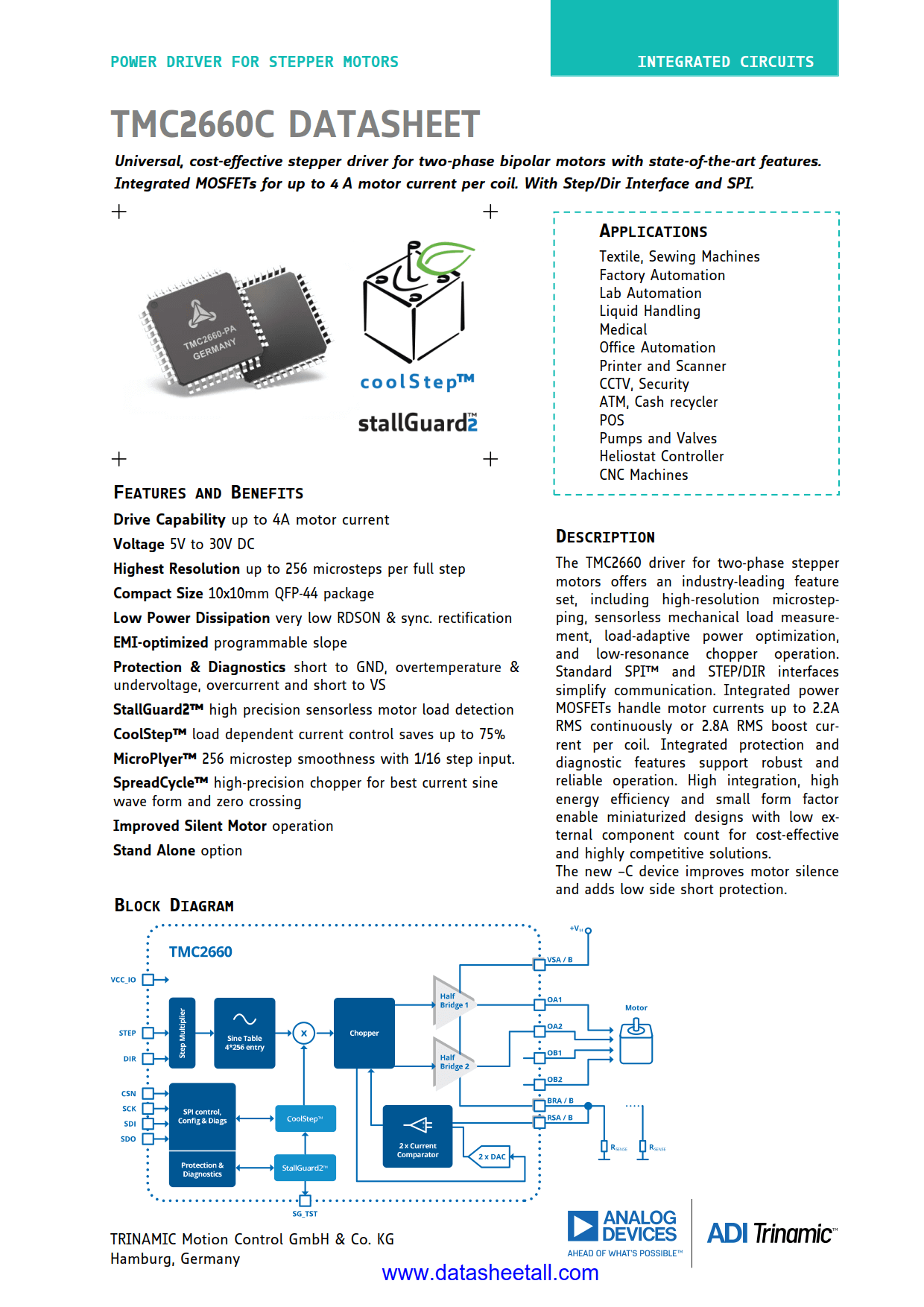

TMC2660 Datasheet

Part No.

In Stock

Price

Packaging

SPQ

Marking

MSL

Pins

Temp Range

Package Description

• Drive Capability up to 4A motor current
• Voltage up to 30V DC
• Highest Resolution up to 256 microsteps per full step

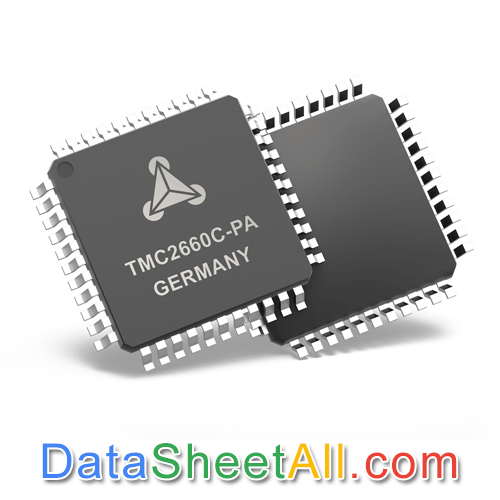

• Compact Size 10x10mm QFP-44 package
• Low Power Dissipation, very low RDSON & synchronous rectification
• Protection & Diagnostics overcurrent, short to GND, overtemperature & undervoltage
• EMI-optimized programmable slope
• stallGuard2™ high precision sensorless motor load detection
• coolStep™ load dependent current control for energy savings up to 75%
• microPlyer™ microstep interpolation for increased smoothness with coarse step inputs.
• spreadCycle™ high-precision chopper for best current sine wave form and zero crossing

• Textile, Sewing Machines
• Factory Automation
• Lab Automation
• Liquid Handling
• Medical
• Office Automation
• Printer and Scanner
• CCTV, Security
• ATM, Cash recycler
• POS
• Pumps and Valves
• Heliostat Controller
• CNC Machines

The TMC2660 provides an integrated motor driver solution for Laboratory Automation, 3D-Printing, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the sensorless stall detection technology StallGuard2™ and the sensorless load dependent current control CoolStep^™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon TrenchFET power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2660 is capable of driving up to 4A of current from each output (with proper heatsinking). TMC2660 is designed for a supply voltage of 9 to 30V. The device has a SPI interface for configuration and diagnostics and a step and direction interface.
