TMC2224 Datasheet

Part No.

In Stock

Price

Packaging

SPQ

Marking

MSL

Pins

Temp Range

Package Description

• 2-phase stepper motors up to 2A coil current (peak)
• STEP/DIR Interface with 2, 4, 8, 16 or 32 microstep pin setting
• Smooth Running 256 microsteps by MicroPlyer™ interpolation
• StealthChop2™ silent motor operation
• SpreadCycle™ highly dynamic motor control chopper
• Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
• Voltage Range 4.75 to 36V DC
• Automatic Standby current reduction (option)
• Internal Sense Resistor option (no sense resistors required)
• Passive Braking and Freewheeling
• Single Wire UART & OTP for advanced configuration options
• Integrated Pulse Generator for standalone motion
• Full Protection & Diagnostics
• Choice of QFN and wettable QFN packages for best fit

• Compatible Design Upgrade
• 3D Printers
• Printers, POS
• Office and home automation
• Textile, Sewing Machines
• CCTV, Security
• ATM, Cash recycler
• HVAC

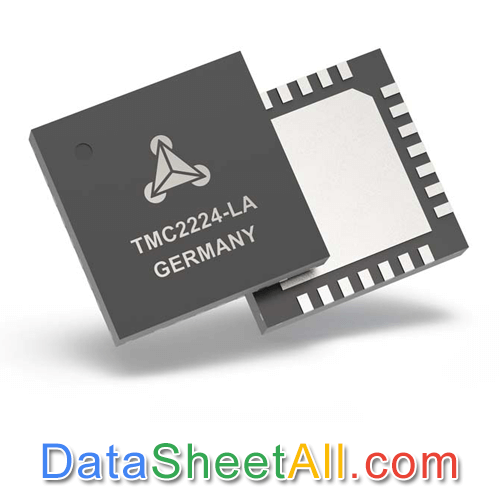

The TMC2224 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the completely noiseless current control mode StealthChop2™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2224 is capable of driving up to 2A of current from each output (with proper heatsinking). TMC2224 is designed for a supply voltage of 5 to 36V. The device has a step and direction interface and can be configured with digital pins.
