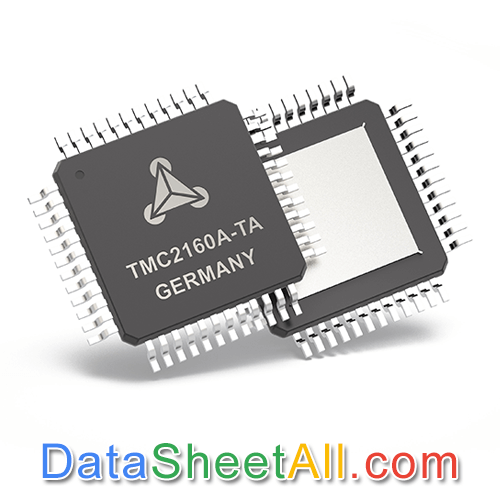

TMC2160 Datasheet

• 2-phase stepper motors from 1A to several 10A coil current
• Step/Dir Interface with microstep interpolation MicroPlyer™
• Voltage Range 8 to 60V DC
• SPI Interface
• Highest Resolution 256 microsteps per full step
• StealthChop2™ for quiet operation and smooth motion
• Resonance Dampening for mid-range resonances
• SpreadCycle™ highly dynamic motor control chopper
• DcStep™ load dependent speed control
• StallGuard2™ high precision sensorless motor load detection
• CoolStep™ current control for energy savings up to 75%
• Passive Braking and freewheeling mode
• Full Protection & Diagnostics
• Compact Size 7x7mm2 (body) TQFP48 package

• Robotics & Industrial Drives
• Textile, Sewing Machines
• Packing Machines
• Factory & Lab Automation
• High-speed 3D Printers
• Liquid Handling
• Medical
• Office Automation
• CCTV
• ATM, Cash Recycler
• Pumps and Valves

The TMC2160 is a high-power stepper motor gate driver IC with SPI interface. It features industries’ most advanced stepper motor driver with simple Step/Dir interface.

Using external transistors, highly dynamic, high torque drives can be realized. Based on ADI Trinamic's sophisticated SpreadCycle™ and StealthChop™ choppers, the driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions.

The fully compatible TMC5160 offers an additional motion controller to make stepper motor control even easier.
