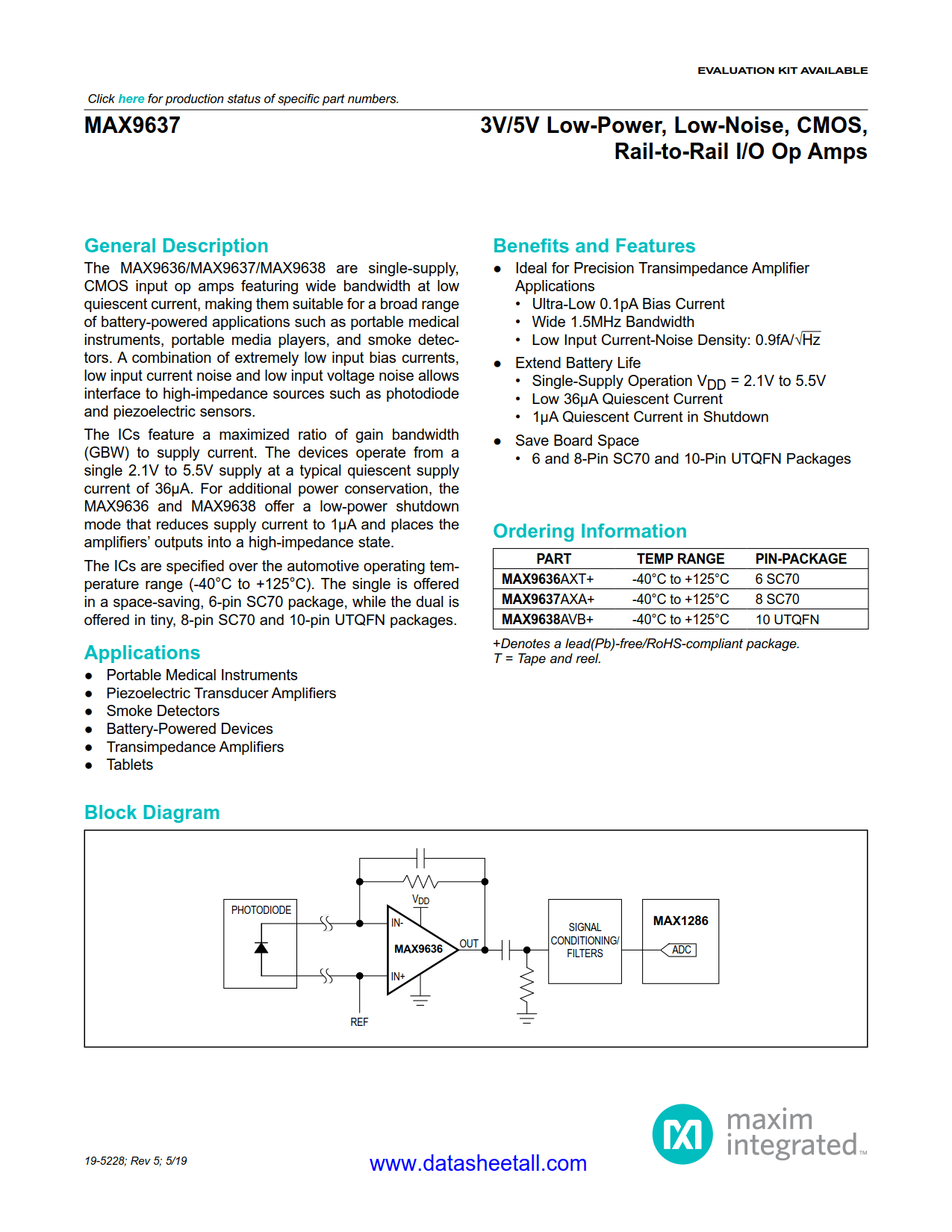

MAX9637 Datasheet

• Ideal for Precision Transimpedance Amplifier Applications
  • Ultra-Low 0.1pA Bias Current
  • Wide 1.5MHz Bandwidth
  • Low Input Current-Noise Density: 0.9fA/√Hz
• Extend Battery Life
  • Single-Supply Operation V_DD = 2.1V to 5.5V
  • Low 36µA Quiescent Current
  • 1µA Quiescent Current in Shutdown
• Save Board Space
  • 6- and 8-Pin SC70 and 10-Pin UTQFN Packages

• Battery-Powered Devices
• Piezoelectric Transducer Amplifiers
• Portable Medical Instruments
• Smoke Detectors
• Tablets
• Transimpedance Amplifiers

The MAX9637 are single-supply, CMOS input op amps featuring wide bandwidth at low quiescent current, making them suitable for a broad range of battery-powered applications such as portable medical instruments, portable media players, and smoke detectors. A combination of extremely low input bias currents, low input current noise and low input voltage noise allows interface to high-impedance sources such as photodiode and piezoelectric sensors.

The ICs feature a maximized ratio of gain bandwidth (GBW) to supply current. The devices operate from a single 2.1V to 5.5V supply at a typical quiescent supply current of 36µA.

The ICs are specified over the automotive operating temperature range (-40°C to +125°C). The single is offered in a space-saving, 6-pin SC70 package, while the dual is offered in tiny, 8-pin SC70 and 10-pin UTQFN packages.
