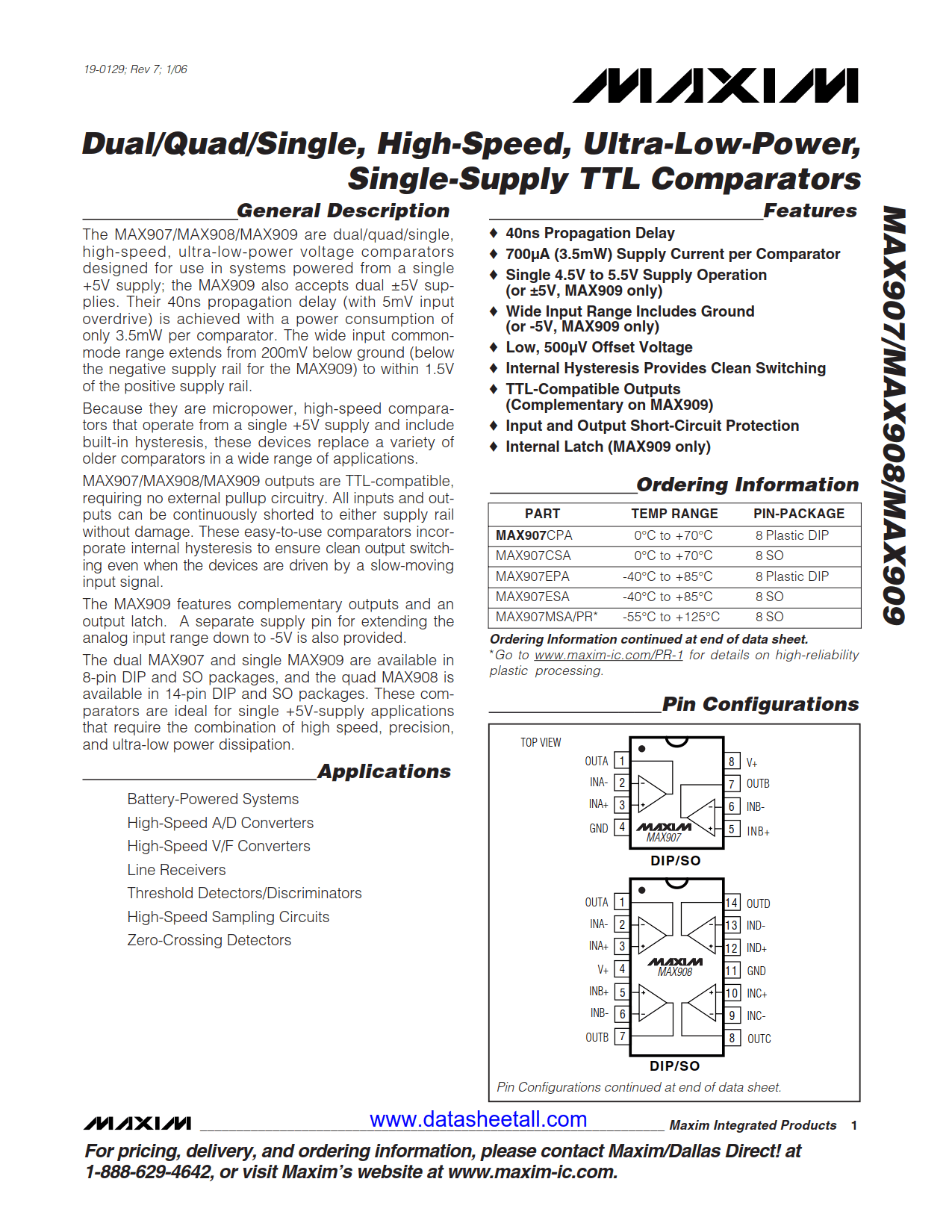

MAX907 Datasheet

• 40ns Propagation Delay
• 700µA (3.5mW) Supply Current per Comparator
• Single 4.5V to 5.5V Supply Operation
• Wide Input Range Includes Ground
• Low, 500µV Offset Voltage
• Internal Hysteresis Provides Clean Switching
• Input and Output Short-Circuit Protection

• Battery-Powered Systems
• High-Speed A/D Converters
• High-Speed Sampling Circuits
• High-Speed V/F Converters
• Line Receivers
• Threshold Detectors/Discriminators
• Zero-Crossing Detectors

The MAX907 are dual, high-speed, ultra-low-power voltage comparators designed for use in systems powered from a single +5V supply. Their 40ns propagation delay (with 5mV input overdrive) is achieved with a power consumption of only 3.5mW per comparator. The wide input common-mode range extends from 200mV below ground  to within 1.5V of the positive supply rail.

Because they are micropower, high-speed comparators that operate from a single +5V supply and include built-in hysteresis, these devices replace a variety of older comparators in a wide range of applications. MAX907 outputs are TTL-compatible, requiring no external pullup circuitry. All inputs and outputs can be continuously shorted to either supply rail without damage. These easy-to-use comparators incorporate internal hysteresis to ensure clean output switching even when the devices are driven by a slow-moving input signal.

The dual MAX907 are available in 8-pin DIP and SO packages. These comparators are ideal for single +5V-supply applications that require the combination of high speed, precision, and ultra-low power dissipation.
