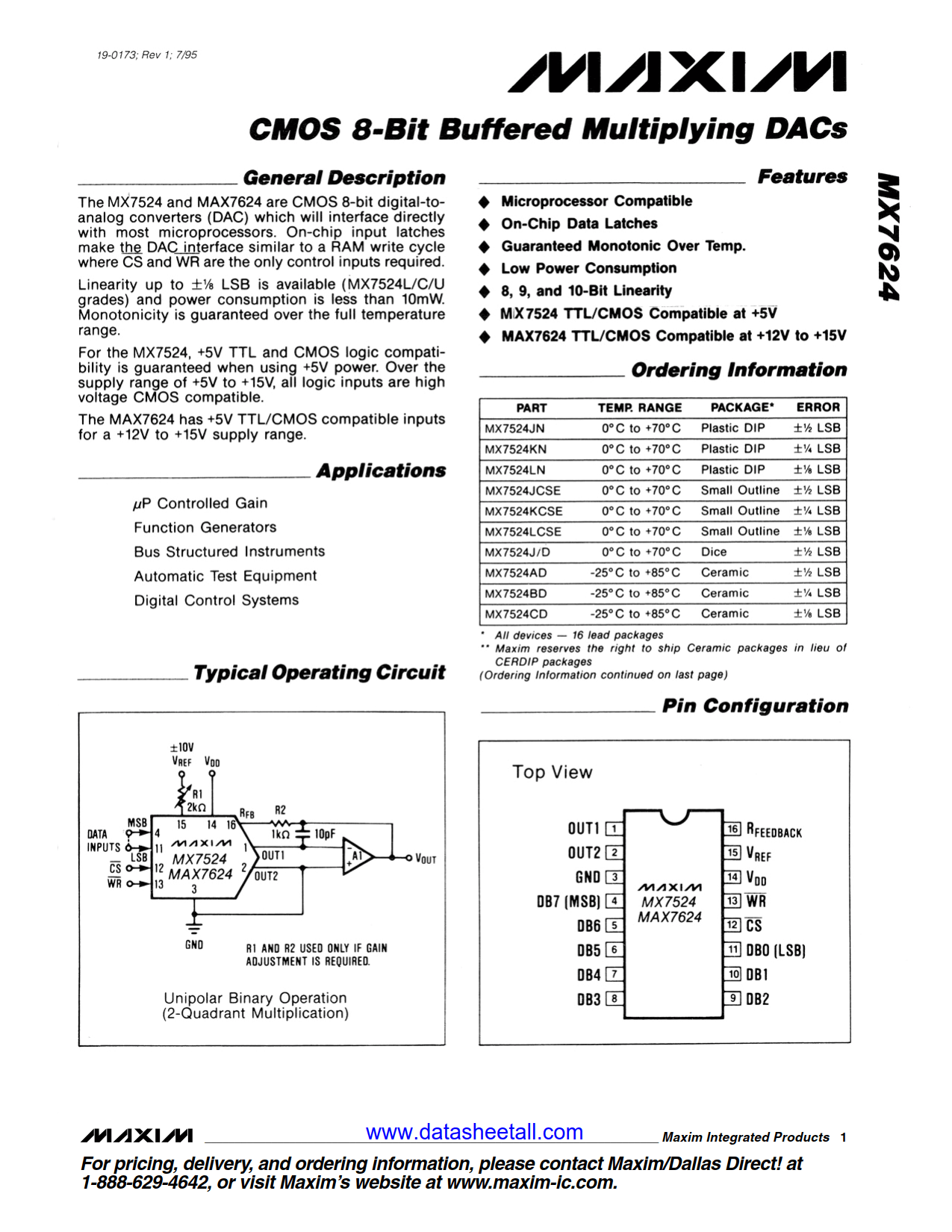

MAX7624 Datasheet

• Microprocessor Compatible
• On-chip Data Latches
• Guaranteed Monotonic Over Temp.
• Low Power Consumption
• 8, 9, 10-Bit Linearity
• MAX7624 TTL/CMOS Compatible at +12V to +15V

• Automatic Test Equipment
• Bus Structured Instruments
• Digital Control Systems
• Function Generators
• µP Controlled Gain

The MAX7624 are CMOS 8-big digital-to-analog converters (DAC) which will interface directly with most microprocessors. On-chip input latches make the DAC interface similar to a RAM write cycle where active-low CS and active-low WR are the only control inputs required. Linearity up to ±1/8 LSB is available and power consumption is less than 10mW. Monotonicity is guaranteed over the full temperature range.

Over the supply range of +5V to +15V, all logic inputs are high voltage CMOS compatible. The MAX7624 has +5V TTL/CMOS compatible inputs for a +12V to +15V supply range.
