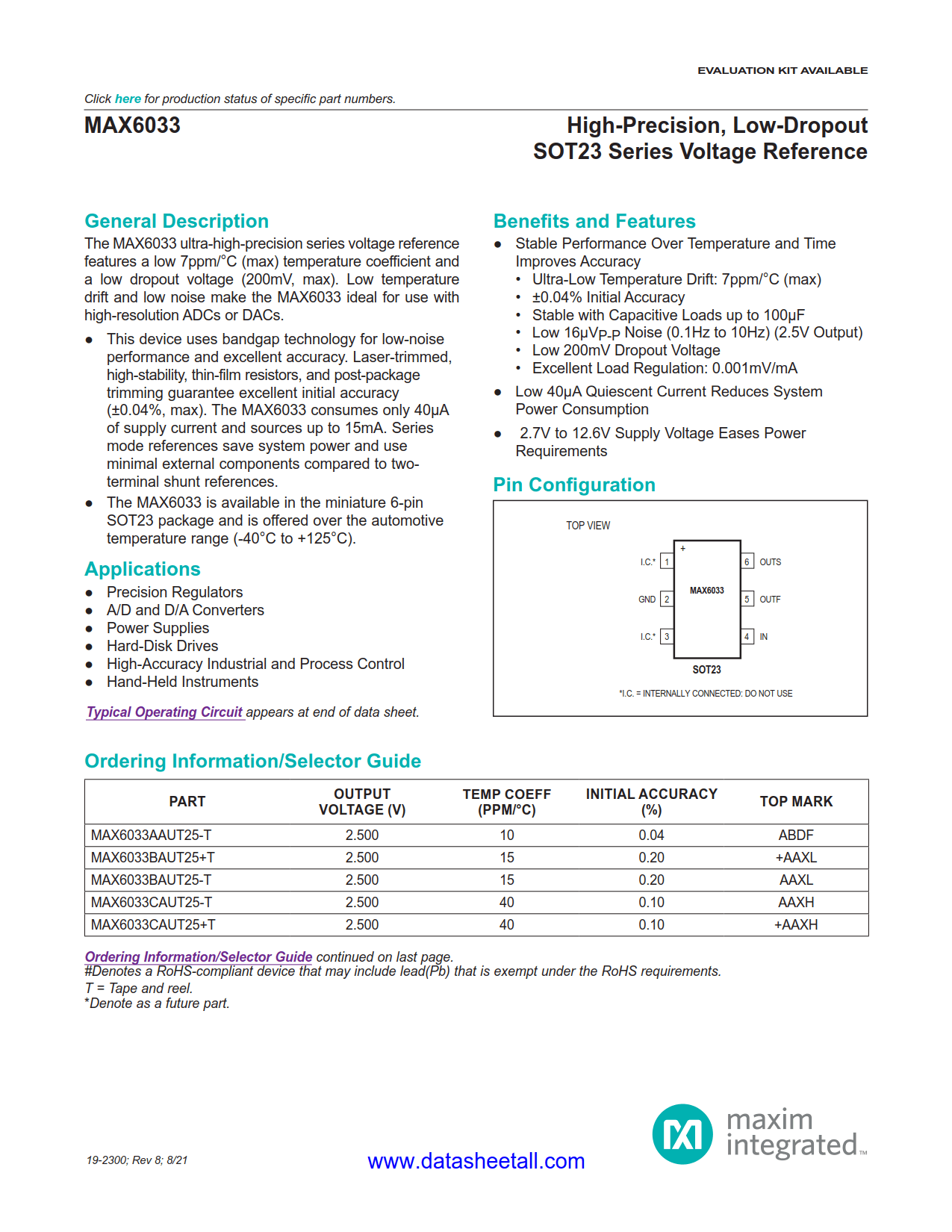

MAX6033 Datasheet

• Stable Performance Over Temperature and Time Improves Accuracy
  • Ultra-Low Temperature Drift: 7ppm/°C (max)
  • ±0.04% Initial Accuracy
  • Stable with Capacitive Loads up to 100µF
  • Low 16µV_P-P Noise (0.1Hz to 10Hz) (2.5V Output)
  • Low 200mV Dropout Voltage
  • Excellent Load Regulation: 0.001mV/mA
• Low 40µA Quiescent Current Reduces System Power Consumption
• 2.7V to 12.6V Supply Voltage Eases Power Requirements

• A/D and D/A Converters
• Handheld Instruments (PDAs, Palmtops)
• Hard Disk Drive
• High-Accuracy Industrial and Process Control
• Power Supplies
• Precision Regulators

The MAX6033 ultra-high-precision series voltage reference features a low 7ppm/°C (max) temperature coefficient and a low dropout voltage (200mV, max). Low temperature drift and low noise make the MAX6033 ideal for use with high-resolution ADCs or DACs.

This device uses bandgap technology for low-noise performance and excellent accuracy. Laser-trimmed, high-stability, thin-film resistors, and postpackage trimming guarantee excellent initial accuracy (±0.04%, max). The MAX6033 consumes only 40µA of supply current and sources up to 15mA. Series mode references save system power and use minimal external components compared to two-terminal shunt references.

The MAX6033 is available in the miniature 6-pin SOT23 package and is offered over the automotive temperature range (-40°C to +125°C).
