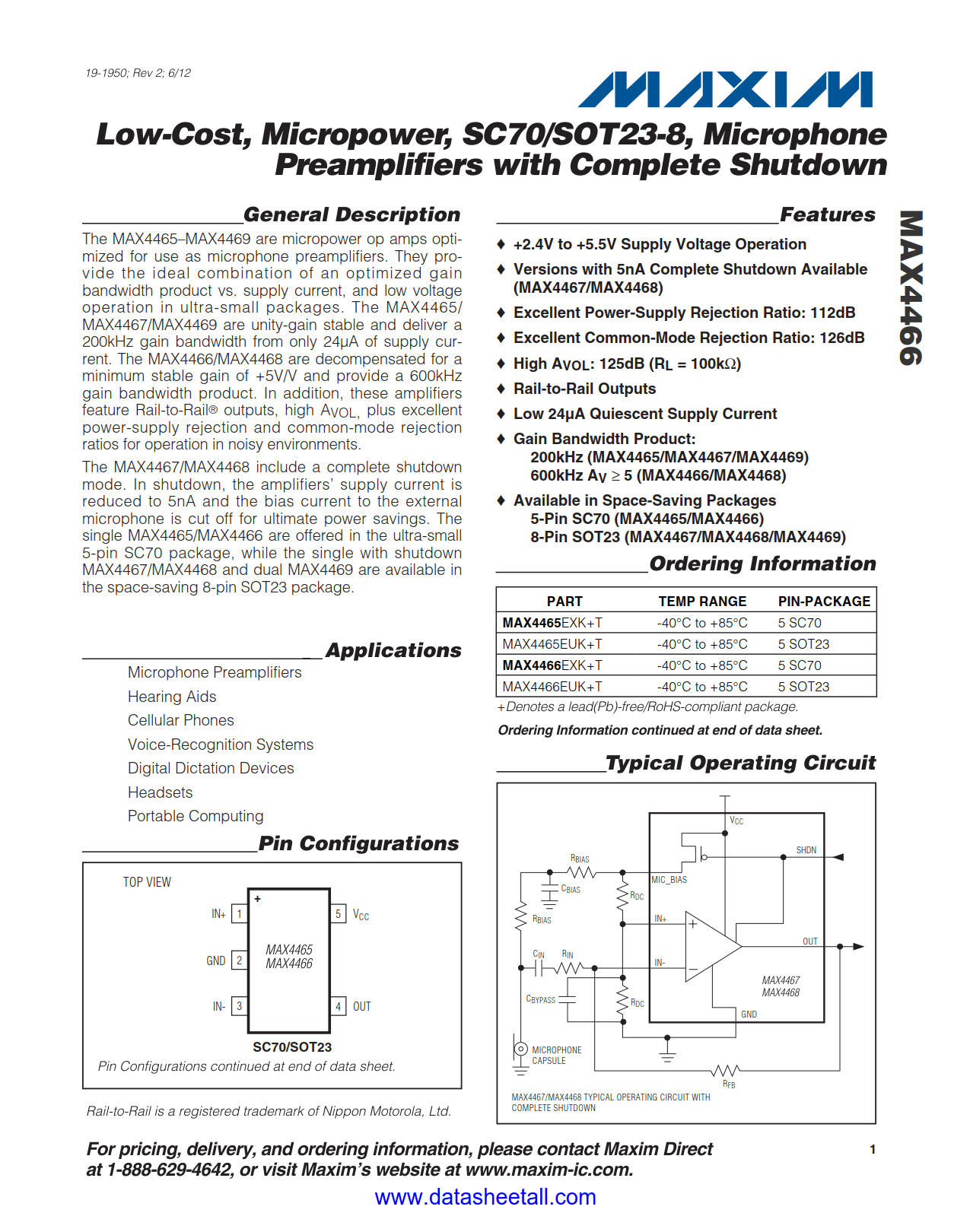

MAX4466 Datasheet

• +2.4V to +5.5V Supply Voltage Operation
• Excellent Power-Supply Rejection Ratio: 112dB
• Excellent Common-Mode Rejection Ratio: 126dB
• High A_VOL: 125dB (R_L = 100kΩ)
• Rail-to-Rail Outputs
• Low 24µA Quiescent Supply Current
• Gain Bandwidth Product:
  • 600kHz A_V ≥ 5 (MAX4466)
• Available in Space-Saving Packages
  • 5-Pin SC70 (MAX4466)

• Cell Phones
• Digital Dictation Devices
• Headsets
• Hearing Aids
• Microphone Preamplifiers
• Portable Computing
• Voice-Recognition Systems

The MAX4466 are micropower op amps optimized for use as microphone preamplifiers. They provide the ideal combination of an optimized gain bandwidth product vs. supply current, and low-voltage operation in an ultra-small package. The MAX4466 are decompensated for a minimum stable gain of +5V/V and provide a 600kHz gain bandwidth product. In addition these amplifiers feature rail-to-rail outputs, high A_VOL, plus excellent power-supply rejection and common-mode rejection ratios for operation in noisy environments.

The single MAX4466 are offered in the ultra-small 5-pin SC70 package.
