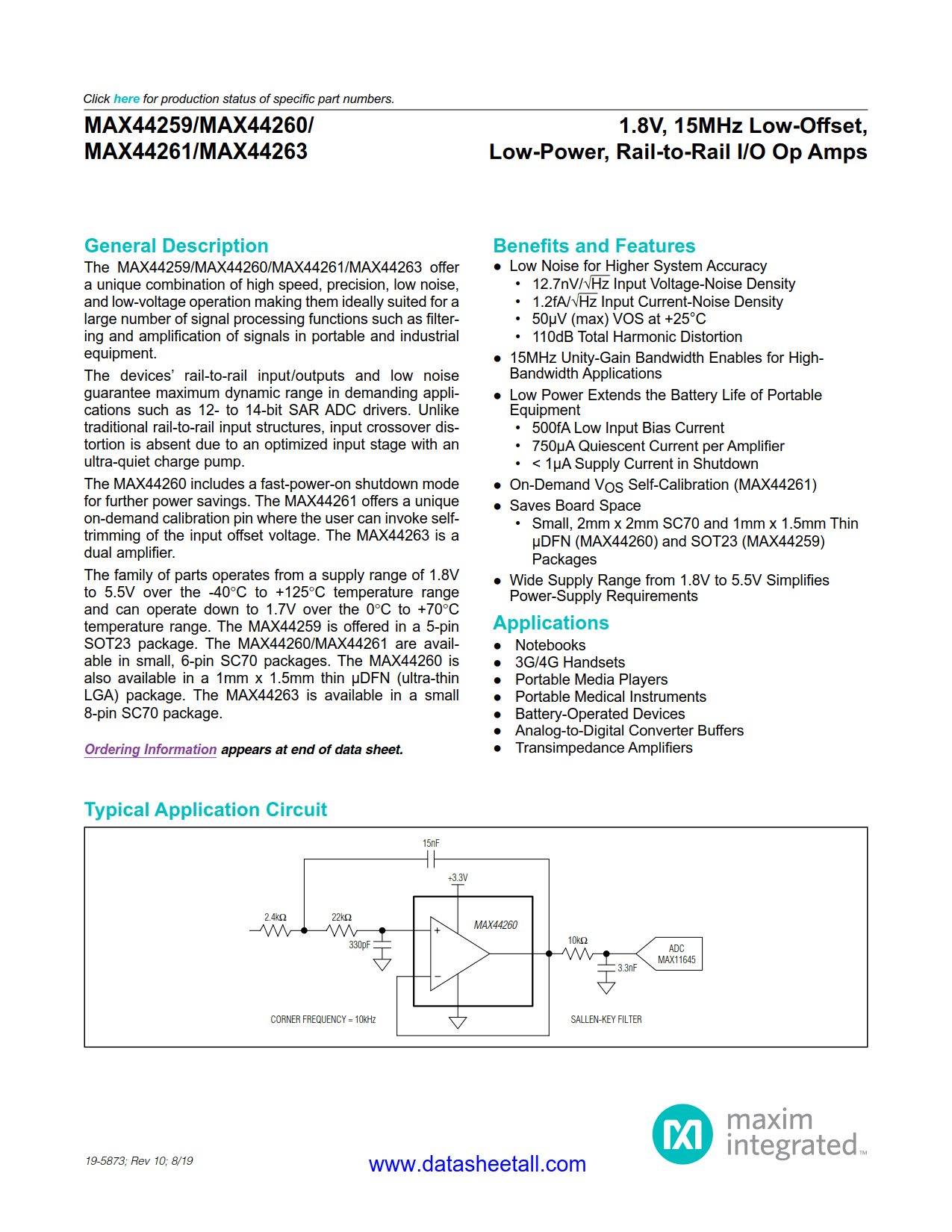

MAX44263 Datasheet

• Low Noise for Higher System Accuracy
  • 12.7nV/√Hz Input Voltage-Noise Density
  • 1.2fA/√Hz Input Current-Noise Density
  • 50µV (max) V_OS at +25°C
  • 110dB Total Harmonic Distortion
• 15MHz Unity-Gain Bandwidth Enables for High-Bandwidth Applications
• Low Power Extends the Battery Life of Portable Equipment
  • 500fA Low Input Bias Current
  • 750µA Quiescent Current per Amplifier
  • < 1µA Supply Current in Shutdown
• Wide Supply Range from 1.8V to 5.5V Simplifies Power-Supply Requirements

• 3G/4G Handsets
• Analog-to-Digital Converter Buffers
• Battery-Operated Devices
• General-Purpose Signal Processing
• Notebooks
• Portable Media Players
• Portable Medical Instruments
• Transimpedance Amplifiers

The MAX44263 offer a unique combination of high speed, precision, low noise, and low-voltage operation making them ideally suited for a large number of signal processing functions such as filtering and amplification of signals in portable and industrial equipment.

The devices’ rail-to-rail input/outputs and low noise guarantee maximum dynamic range in demanding applications such as 12- to 14-bit SAR ADC drivers. Unlike traditional rail-to-rail input structures, input crossover distortion is absent due to an optimized input stage with an ultra-quiet charge pump.

The MAX44263 is a dual amplifier.

The family of parts operates from a supply range of 1.8V to 5.5V over the -40°C to +125°C temperature range and can operate down to 1.7V over the 0°C to +70°C temperature range. The MAX44263 is available in a small 8-pin SC70 package.
