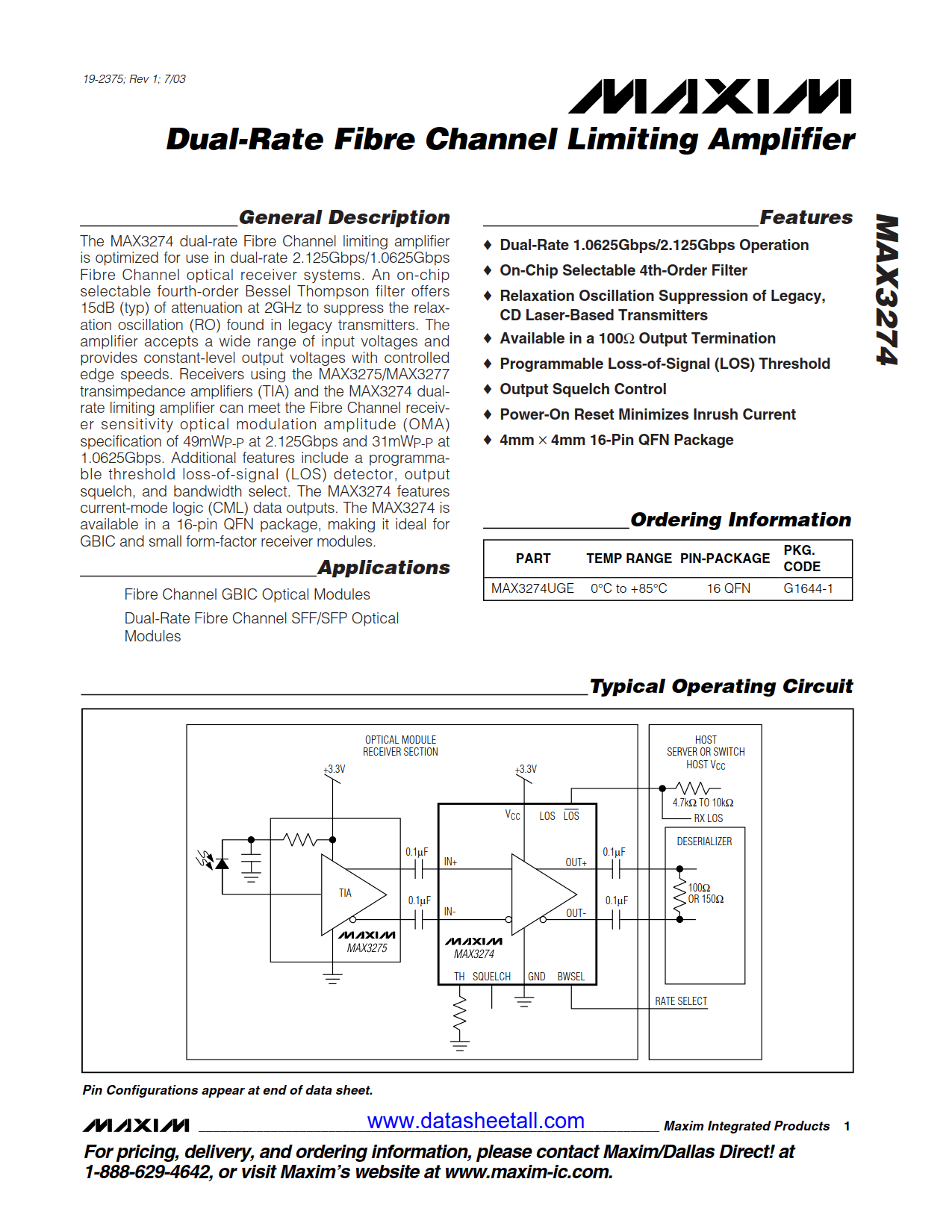

MAX3274 Datasheet

Part No.

In Stock

Price

Packaging

SPQ

Marking

MSL

Pins

Temp Range

Package Description

• Dual-Rate 1.0625Gbps/2.125Gbps Operation
• On-Chip Selectable 4th-Order Filter
• Relaxation Oscillation Suppression of Legacy, CD Laser-Based Transmitters
• Available in a 100Ω Output Termination
• Programmable Loss-of-Signal (LOS) Threshold
• Output Squelch Control
• Power-On Reset Minimizes Inrush Current
• 4mm x 4mm 16-Pin QFN Package

• Dual-Rate Fibre Channel SFF/SFP Optical Modules
• Fibre Channel GBIC Optical Modules

The MAX3274 dual-rate Fibre Channel limiting amplifier is optimized for use in dual-rate 2.125Gbps/1.0625Gbps Fibre Channel optical receiver systems. An on-chip selectable fourth-order Bessel Thompson filter offers 15dB (typ) of attenuation at 2GHz to suppress the relaxation oscillation (RO) found in legacy transmitters. The amplifier accepts a wide range of input voltages and provides constant-level output voltages with controlled edge speeds. Receivers using the MAX3275/MAX3277 transimpedance amplifiers (TIA) and the MAX3274 dual-rate limiting amplifier can meet the Fibre Channel receiver sensitivity optical modulation amplitude (OMA) specification of 49mW_P-P at 2.125Gbps and 31mW_P-P at 1.0625Gbps. Additional features include a programmable threshold loss-of-signal (LOS) detector, output squelch, and bandwidth select. The MAX3274 features current-mode logic (CML) data outputs. The MAX3274 is available in a 16-pin QFN package, making it ideal for GBIC and small form-factor receiver modules.
