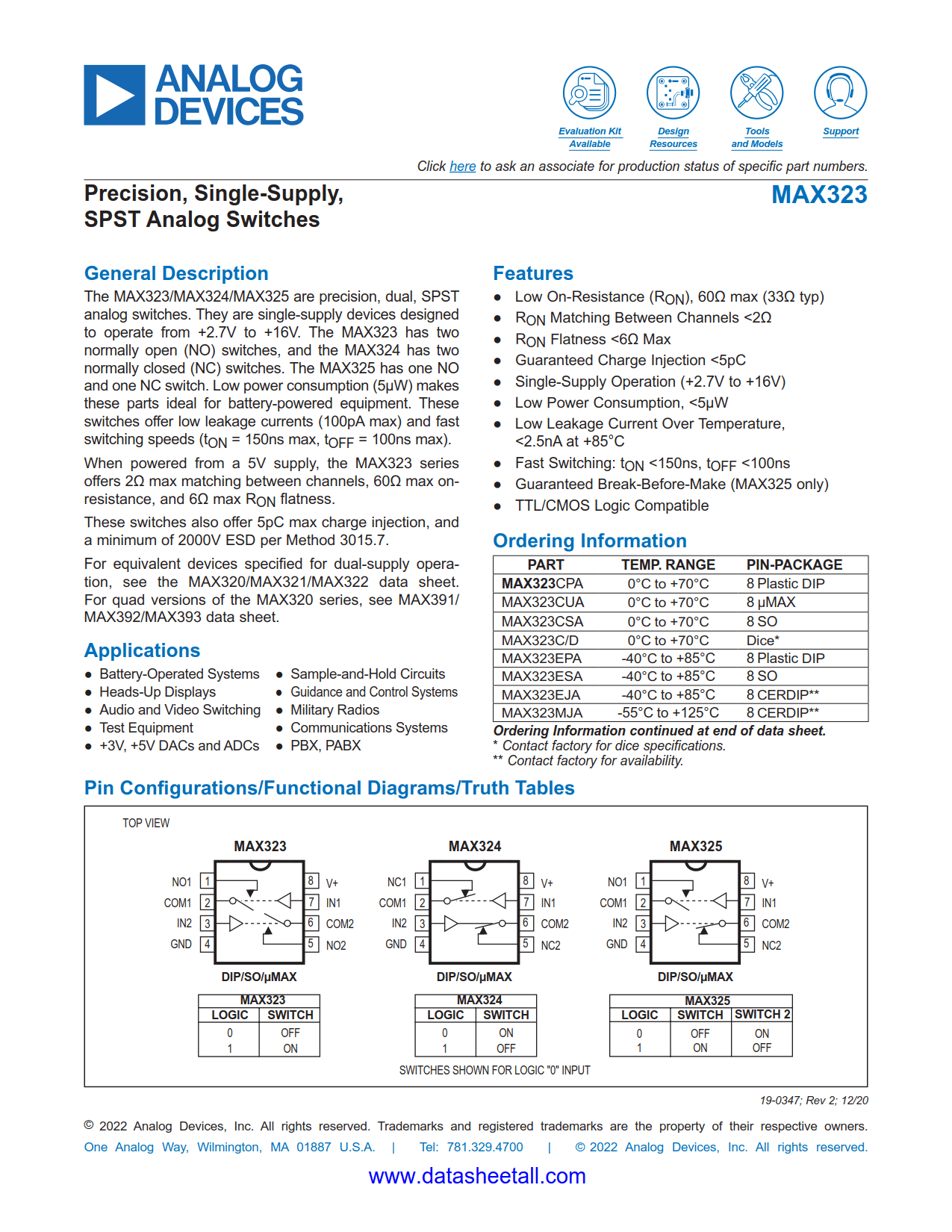

MAX323 Datasheet

• Low On-Resistance (R_ON), 60Ω max (33Ω typ)
• R_ON Matching Between Channels < 2Ω
• R_ON Flatness < 6Ω Max
• Guaranteed Charge Injection < 5pC
• Single-Supply Operation (+2.7V to +16V)
• Low Power Consumption, < 5µW
• Low Leakage Current Over Temperature, < 2.5nA at +85°C
• Fast Switching: t_ON < 150ns, t_OFF < 100ns
• TTL/CMOS Logic Compatible

• +3V, +5V DACs and ADCs
• Audio and Video Switching
• Battery-Powered Applications
• Communication Systems
• Guidance and Control Systems
• Heads-Up Displays
• Military Radios
• PBX, PABX
• Sample-and-Hold Circuits
• Test Equipment

The MAX323 are precision, dual, SPST analog switches. They are single-supply devices designed to operate from +2.7V to +16V. The MAX323 has two normally open (NO) switches. Low power consumption (5µW) makes these parts ideal for battery-powered equipment. These switches offer low leakage currents (100pA max) and fast switching speeds (t_ON = 150ns max, t_OFF = 100ns max).

When powered from a 5V supply, the MAX323 series offers 2Ω max matching between channels, 60Ω max on-resistance, and 6Ω max R_ON flatness.

These switches also offer 5pC max charge injection, and a minimum of 2000V ESD per Method 3015.7.

For equivalent devices specified for dual-supply operation, see the MAX320/MAX321/MAX322 data sheet. For quad versions of the MAX320 series, see MAX391/MAX392/MAX393 data sheet.
