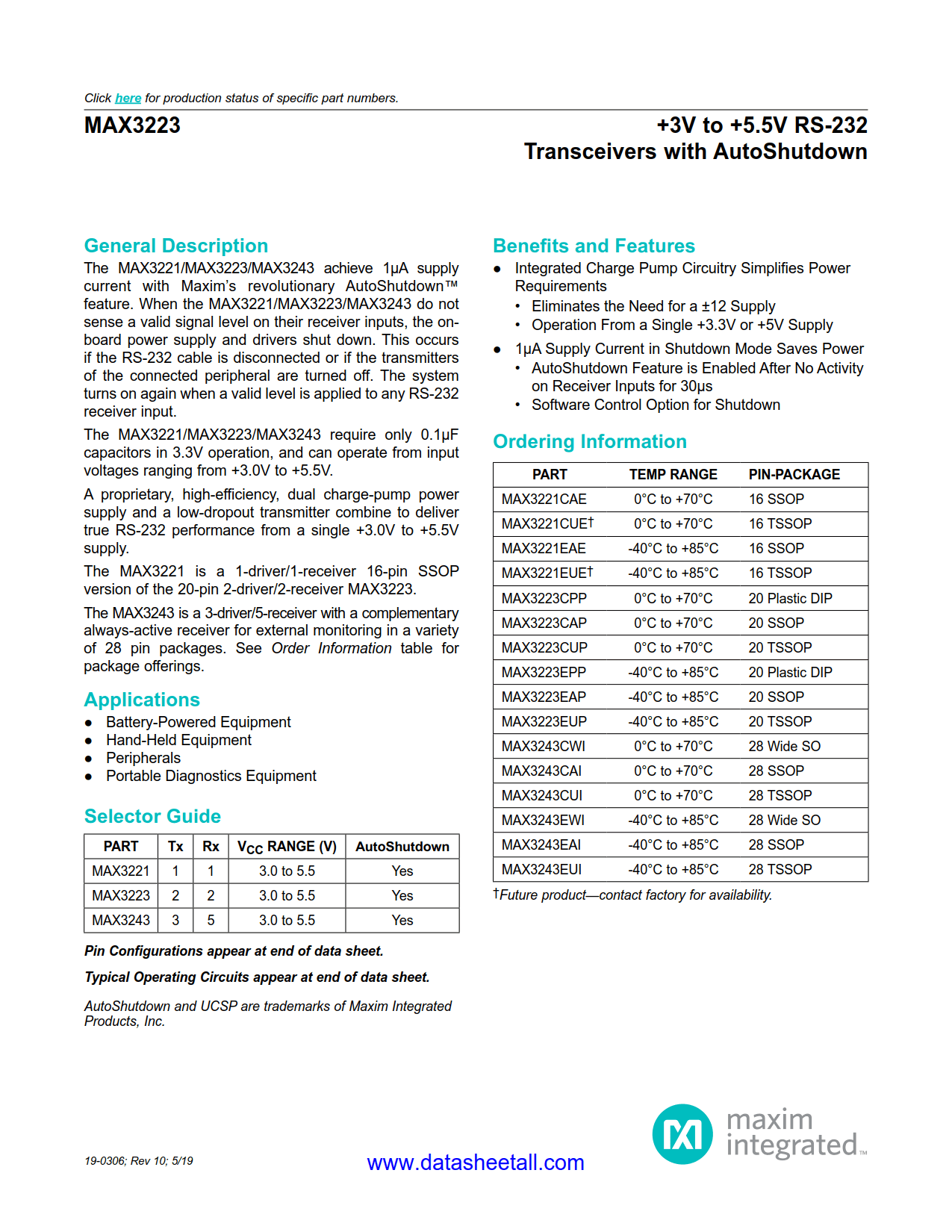

MAX3223 Datasheet

• Integrated Charge Pump Circuitry Simplifies Power Requirements
  • Eliminates the Need for a ±12V Supply
  • Operation From a Single +3.3V or +5V Supply
• 1µA Supply Current in Shutdown Mode Saves Power
  • AutoShutdown Feature is Enabled After No Activity on Receiver Inputs for 30μs
  • Software Control Option for Shutdown

• Battery-Powered Equipment
• Hand-Held Equipment
• Peripherals
• Portable Diagnostics Equipment

The MAX3223 achieve 1µA supply current with Maxim’s revolutionary AutoShutdown^™ feature. When the MAX3223 do not sense a valid signal level on their receiver inputs, the on-board power supply and drivers shut down. This occurs if the RS-232 cable is disconnected or if the transmitters of the connected peripheral are turned off. The system turns on again when a valid level is applied to any RS-232 receiver input.

The MAX3223 require only 0.1µF capacitors in 3.3V operation, and can operate from input voltages ranging from +3.0V to +5.5V.

A proprietary, high-efficiency, dual charge-pump power supply and a low-dropout transmitter combine to deliver true RS-232 performance from a single +3.0V to +5.5V supply.

The MAX3221 is a 1-driver/1-receiver 16-pin SSOP version of the 20-pin 2-driver/2-receiver MAX3223.
