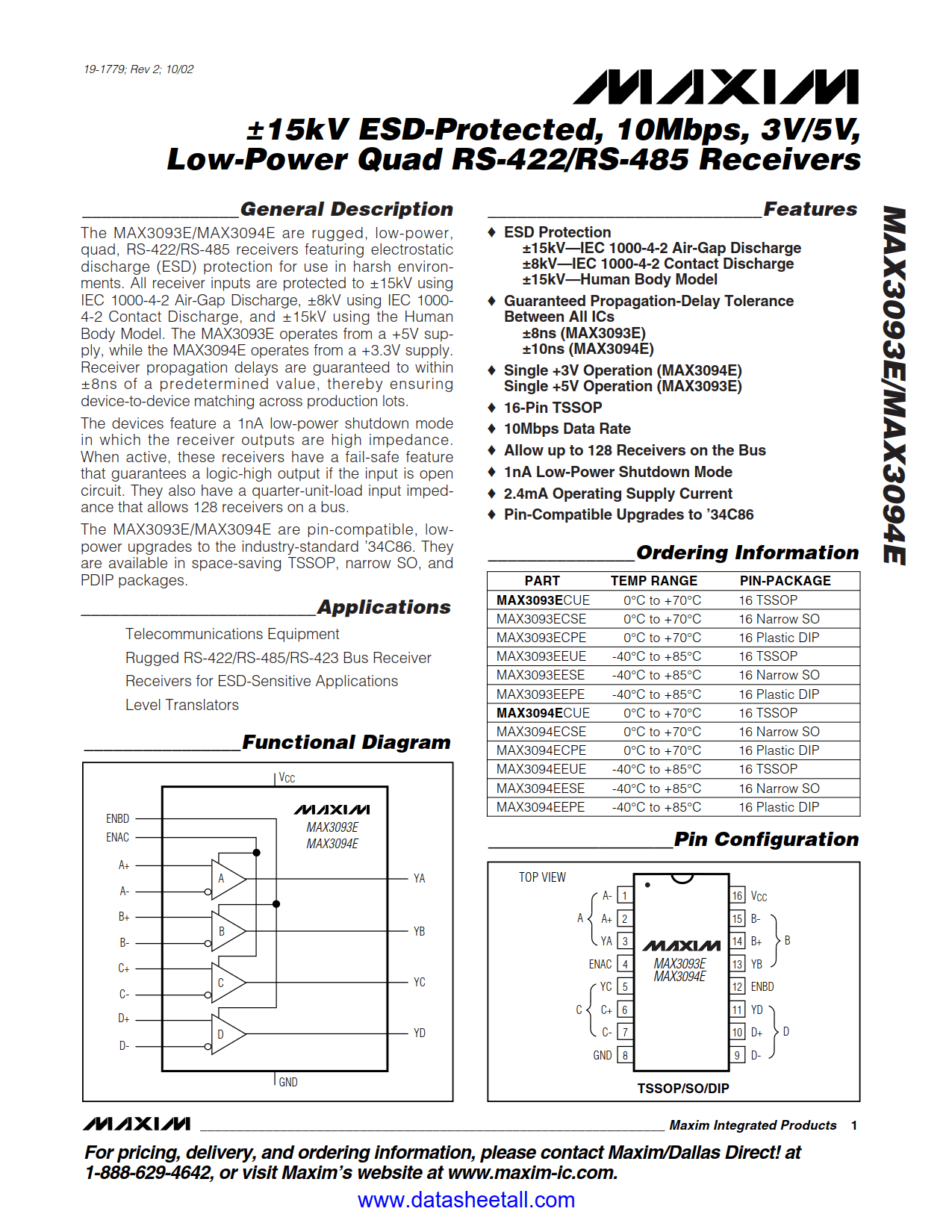

MAX3093E Datasheet

• ESD Protection
  • ±15kV—IEC 1000-4-2 Air-Gap Discharge
  • ±8kV—IEC 1000-4-2 Contact Discharge
  • ±15kV—Human Body Model
• Guaranteed Propagation-Delay Tolerance Between All ICs
  • ±8ns (MAX3093E)
• Single +5V Operation (MAX3093E)
• 16-Pin TSSOP
• 10Mbps Data Rate
• Allow up to 128 Receivers on the Bus
• 1nA Low-Power Shutdown Mode
• 2.4mA Operating Supply Current
• Pin-Compatible Upgrades to '34C86

• Level Translators
• Receivers for ESD-Sensitive Applications
• Rugged RS-422/RS-485/RS-423 Bus Receiver
• Telecommunications Equipment

The MAX3093E are rugged, low-power, quad, RS-422/RS-485 receivers featuring electrostatic discharge (ESD) protection for use in harsh environments. All receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model. The MAX3093E operates from a +5V supply. Receiver propagation delays are guaranteed to within ±8ns of a predetermined value, thereby ensuring device-to-device matching across production lots.

The devices feature a 1nA low-power shutdown mode in which the receiver outputs are high impedance. When active, these receivers have a fail-safe feature that guarantees a logic-high output if the input is open circuit. They also have a quarter-unit-load input impedance that allows 128 receivers on a bus.

The MAX3093E are pin-compatible, low-power upgrades to the industry-standard '34C86. They are available in space-saving TSSOP, narrow SO, and PDIP packages.
