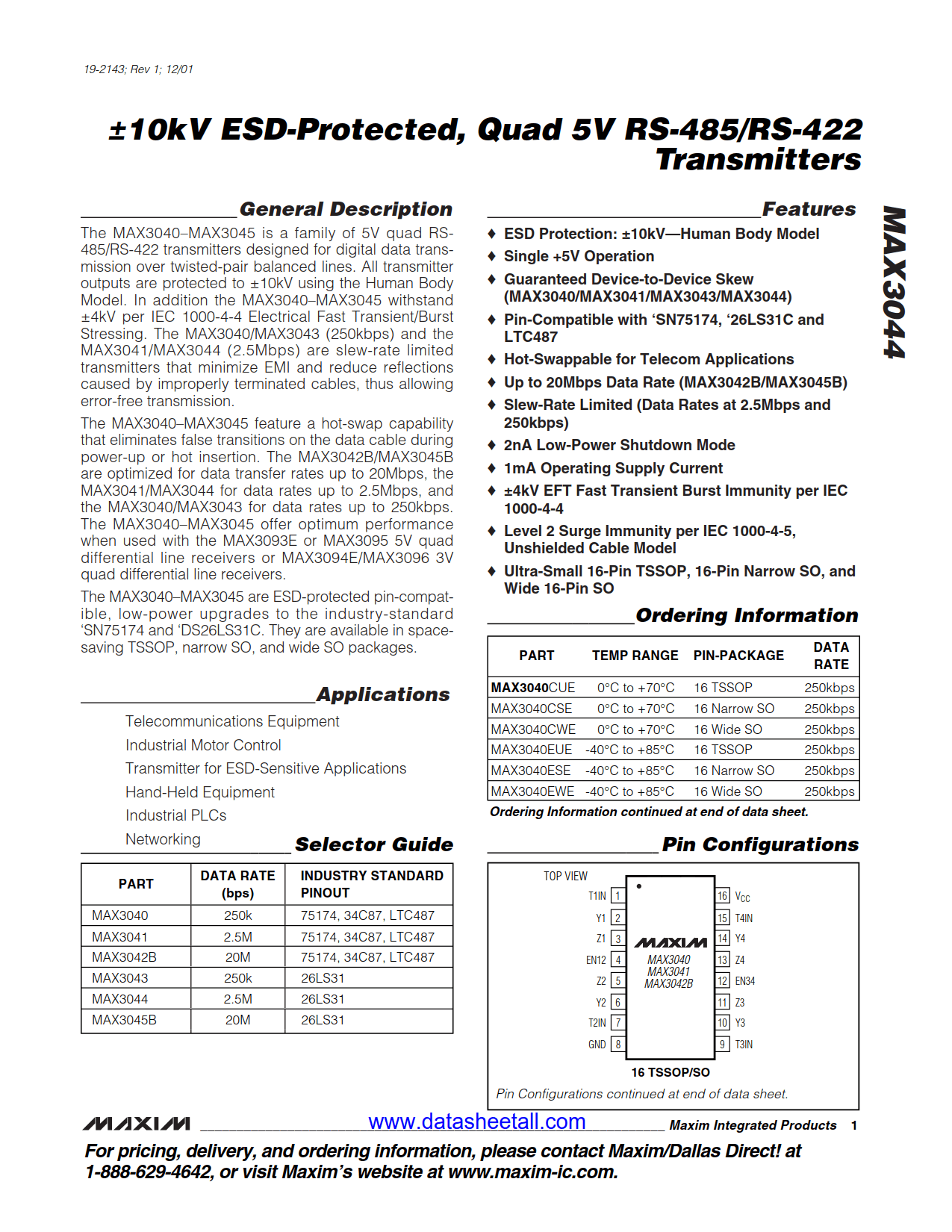

MAX3044 Datasheet

• ESD Protection: ±10kV—Human Body Model
• Single +5V Operation
• Guaranteed Device-to-Device Skew (MAX3044)
• Pin-Compatible with 'SN75174, '26LS31C and LTC487
• Hot-Swappable for Telecom Applications
• Slew-Rate Limited (Data Rates at 2.5Mbps and 250kbps)
• 2nA Low-Power Shutdown Mode
• 1mA Operating Supply Current
• ±2kV EFT Fast Transient Burst Immunity per IEC 1000-4-4
• Level 2 Surge Immunity per IEC 1000-4-5, Unshielded Cable Model
• Ultra-Small 16-Pin TSSOP, 16-Pin Narrow SO, and Wide 16-Pin SO

• Handheld Equipment
• Industrial Motor Control
• Industrial PLCs
• Networking
• Telecommunications Equipment
• Transmitter for ESD-Sensitive Applications

The MAX3044 is a family of 5V quad RS-485/RS-422 transmitters designed for digital data transmission over twisted-pair balanced lines. All transmitter outputs are protected to ±10kV using the Human Body Model. The MAX3044 (2.5Mbps) are slew-rate limited transmitters that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free transmission.

The MAX3044 feature a hot-swap capability that eliminates false transitions on the data cable during power-up or hot insertion. The MAX3044 for data rates up to 2.5Mbps. The MAX3044 offer optimum performance when used with the MAX3093E or MAX3095 5V quad differential line receivers or MAX3094E/MAX3096 3V quad differential line receivers.

The MAX3044 are ESD-protected pin-compatible, low-power upgrades to the industry-standard 'SN75174 and 'DS26LS31C. They are available in space-saving TSSOP, narrow SO, and wide SO packages.
