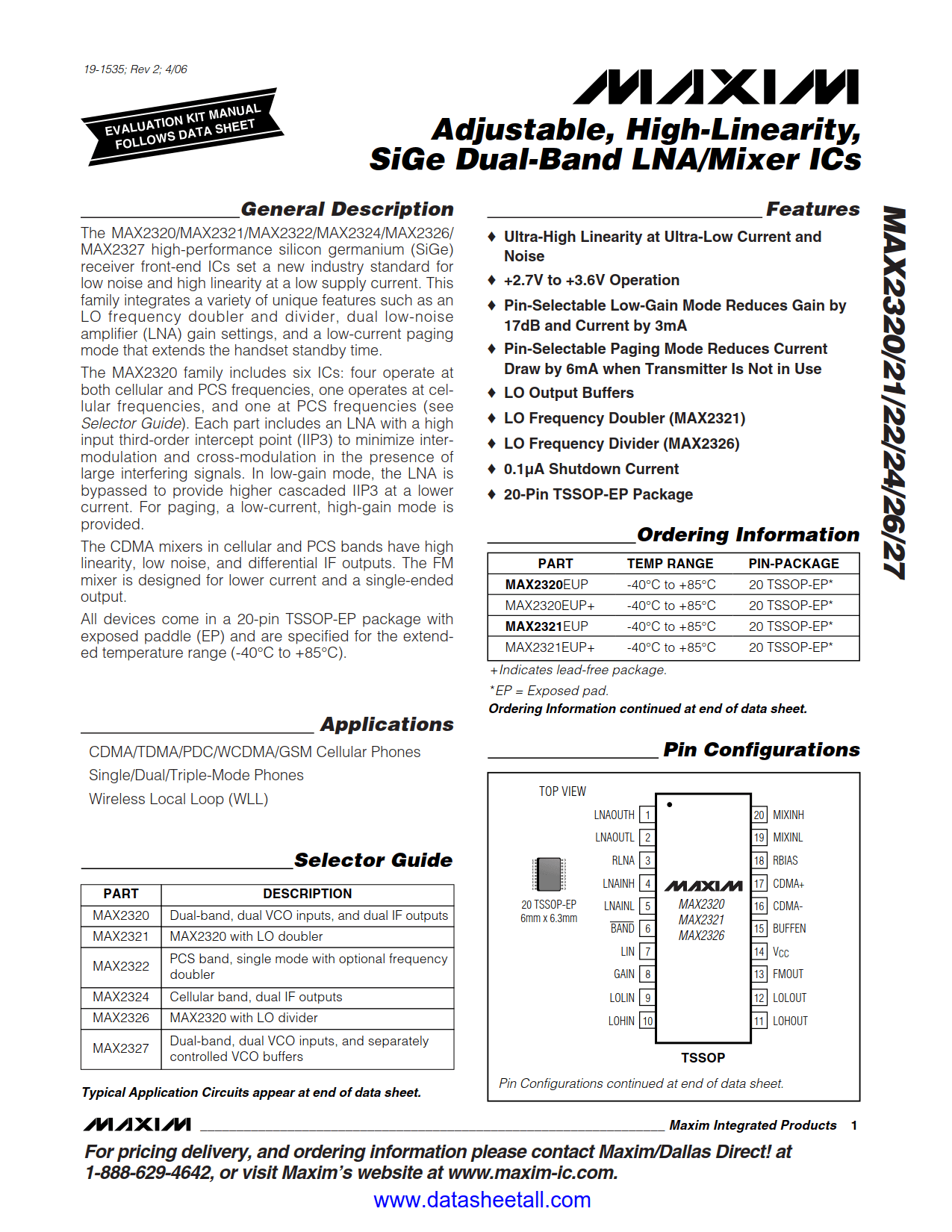

MAX2321 Datasheet

• Ultra-High Linearity at Ultra-Low Current and Noise
• +2.7V to +3.6V Operation
• Pin-Selectable Low-Gain Mode Reduces Gain by 15dB and Current by 3mA
• Pin-Selectable Paging Mode Reduces Current Draw by 6mA when Transmitter is Not in Use
• LO Output Buffers
• LO Frequency Doubler (MAX2321)
• 0.1µA Shutdown Current
• 20-Pin TSSOP-EP Package

• CDMA/TDMA/PDC/WCDMA/GSM Cellular Phones
• Single/Dual/Triple-Mode Phones
• Wireless Local Loop (WLL)

The MAX2321 high-performance SiGe receiver front-end ICs set a new industry standard for low noise and high linearity at a low supply current. This family integrates a variety of unique features such as an LO frequency doubler and divider, dual low-noise amplifier (LNA) gain settings, and a low-current paging mode that extends the handset standby time.

The MAX2321 includes seven ICs: four operate at both cellular and PCS frequencies, one operates at cellular frequencies, one at PCS frequencies, and one is configured as a dual PCS device (see Selector Guide). Each part includes an LNA with a high input third-order intercept point (IIP3) to minimize intermodulation and cross-modulation in the presence of large interfering signals. In low-gain mode, the LNA is bypassed to provide higher cascaded IIP3 at a lower current. For paging, a low-current, high-gain mode is provided.

The CDMA mixers in cellular and PCS bands have high linearity, low noise, and differential IF outputs. The FM mixer is designed for lower current and a single-ended output.

All devices come in a 20-pin TSSOP-EP package with exposed paddle and are specified for the extended temperature range (-40°C to +85°C).
