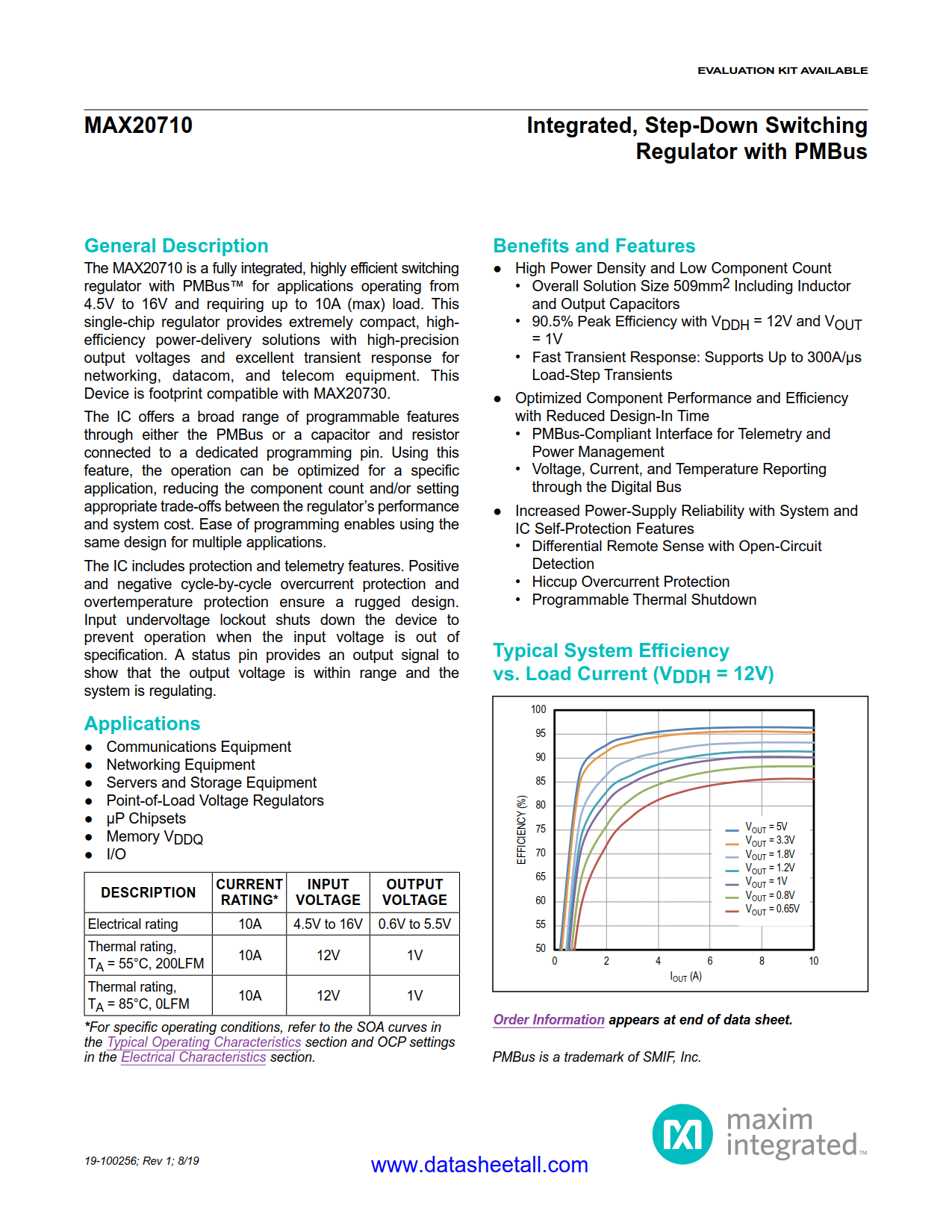

MAX20710 Datasheet

• High Power Density and Low Component Count
  • Overall Solution Size 509mm² Including Inductor and Output Capacitors
  • 90.8% Peak Efficiency with V_DDH = 12V and V_OUT = 1V
  • Fast Transient Response: Supports Up to 300A/µs Load-Step Transients
• Optimized Component Performance and Efficiency with Reduced Design-In Time
  • PMBus-Compliant Interface for Telemetry andPower Management
  • Voltage, Current, and Temperature Reporting through the Digital Bus
• Increased Power-Supply Reliability with System and IC Self-Protection Features
  • Differential Remote Sense with Open-Circuit Detection
  • Hiccup Overcurrent Protection
  • Programmable Thermal Shutdown

• Communications Equipment
• I/O
• Memory V_DDQ
• Networking Equipment
• Point-of-Load Voltage Regulators
• Servers and Storage Equipment
• μP Chipsets

The MAX20710 is a fully integrated, highly efficient switching regulator with PMBus™ for applications operating from 4.5V to 16V and requiring up to 10A (max) load. This single-chip regulator provides extremely compact, highefficiency power-delivery solutions with high-precision output voltages and excellent transient response for networking, datacom, and telecom equipment.

The IC offers a broad range of programmable features through either the PMBus or a capacitor and resistor connected to a dedicated programming pin. Using this feature, the operation can be optimized for a specific application, reducing the component count and/or setting appropriate trade-offs between the regulator’s performance and system cost. Ease of programming enables using the same design for multiple applications.

The IC includes protection and telemetry features. Positive and negative cycle-by-cycle overcurrent protection and overtemperature protection ensure a rugged design. Input undervoltage lockout shuts down the device to prevent operation when the input voltage is out of specification. A status pin provides an output signal to show that the output voltage is within range and the system is regulating.
