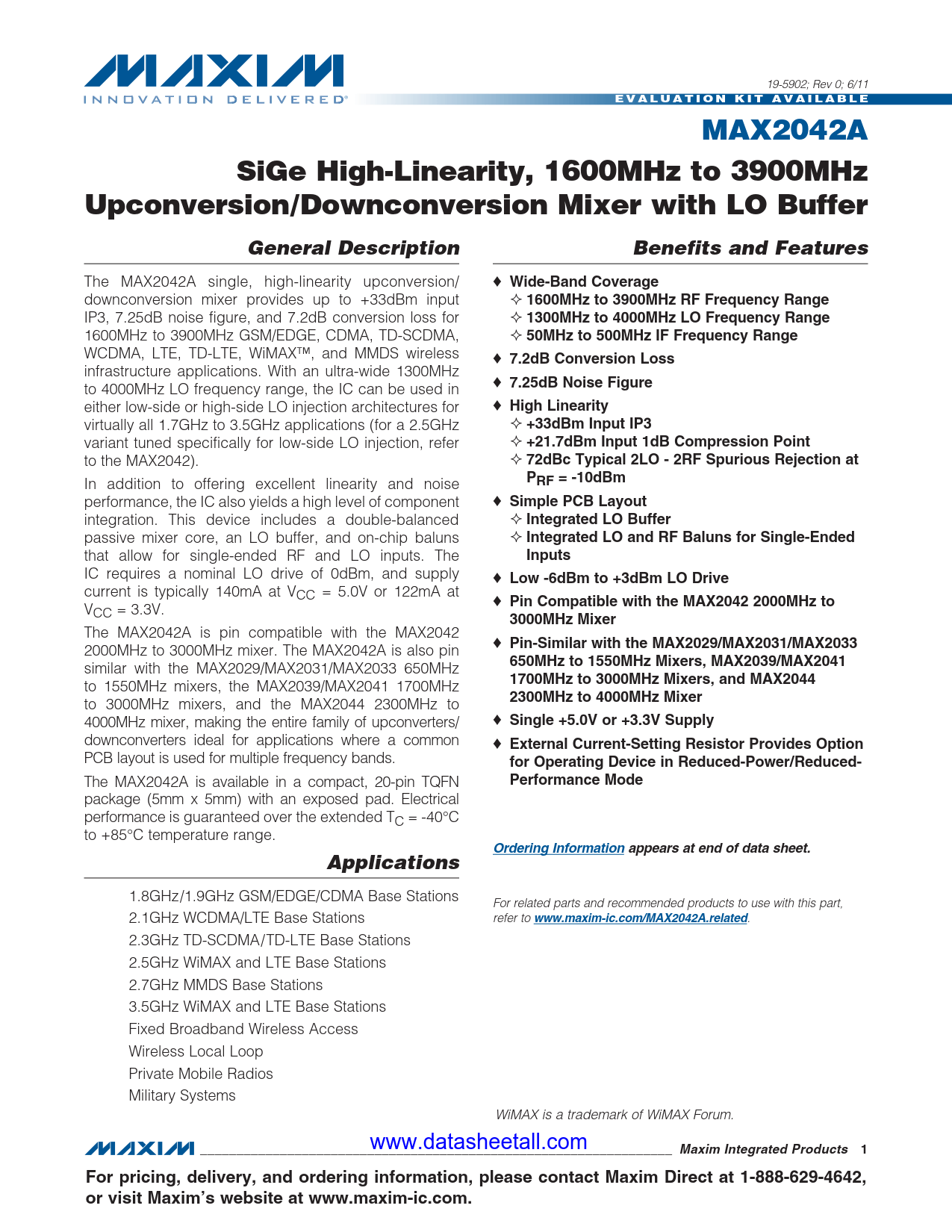

MAX2042A Datasheet

• Wide-Band Coverage
  • 1600MHz to 3900MHz RF Frequency Range
  • 1300MHz to 4000MHz LO Frequency Range
  • 50MHz to 500MHz IF Frequency Range
• 7.2dB Conversion Loss
• 7.25dB Noise Figure
• High Linearity
  • +33dBm Input IP3
  • +21.7dBm Input 1dB Compression Point
  • 72dBc Typical 2LO - 2RF Spurious Rejection at P_RF = -10dBm
• Simple PCB Layout
  • Integrated LO Buffer
  • Integrated LO and RF Baluns for Single-Ended Inputs
• Low -6dBm to +3dBm LO Drive
• Pin Compatible with the MAX2042 2000MHz to 3000MHz Mixer
• Pin-Similar with the MAX2029/MAX2031/MAX2033 650MHz to 1550MHz Mixers, MAX2039/MAX2041 1700MHz to 3000MHz Mixers, and MAX2044 2300MHz to 4000MHz Mixer
• Single +5.0V or +3.3V Supply
• External Current-Setting Resistor Provides Option for Operating Device in Reduced-Power/Reduced-Performance Mode

• 1.8GHz/1.9GHz GSM/EDGE/CDMA Base Stations
• 2.1GHz WCDMA/LTE Base Stations
• 2.3GHz TD-SCDMA/TD-LTE Base Stations
• 2.5GHz WiMAX and LTE Base Stations
• 2.7GHz MMDS Base Stations
• 3.5GHz WiMAX and LTE Base Stations
• Fixed Broadband Wireless Access
• Military Systems
• Private Mobile Radios
• Wireless Local Loop

The MAX2042A single, high-linearity upconversion/downconversion mixer provides up to +33dBm input IP3, 7.25dB noise figure, and 7.2dB conversion loss for 1600MHz to 3900MHz GSM/EDGE, CDMA, TD-SCDMA, WCDMA, LTE, TD-LTE, WiMAX™, and MMDS wireless infrastructure applications. With an ultra-wide 1300MHz to 4000MHz LO frequency range, the IC can be used in either low-side or high-side LO injection architectures for virtually all 1.7GHz to 3.5GHz applications (for a 2.5GHz variant tuned specifically for low-side LO injection, refer to the MAX2042).

In addition to offering excellent linearity and noise performance, the IC also yields a high level of component integration. This device includes a double-balanced passive mixer core, an LO buffer, and on-chip baluns that allow for single-ended RF and LO inputs. The IC requires a nominal LO drive of 0dBm, and supply current is typically 140mA at V_CC = 5.0V or 122mA at V_CC = 3.3V.

The MAX2042A is pin compatible with the MAX2042 2000MHz to 3000MHz mixer. The MAX2042A is also pin similar with the MAX2029/MAX2031/MAX2033 650MHz to 1550MHz mixers, the MAX2039/MAX2041 1700MHz to 3000MHz mixers, and the MAX2044 2300MHz to 4000MHz mixer, making the entire family of upconverters/downconverters ideal for applications where a common PCB layout is used for multiple frequency bands.

The MAX2042A is available in a compact, 20-pin TQFN package (5mm x 5mm) with an exposed pad. Electrical performance is guaranteed over the extended T_C = -40°C to +85°C temperature range.
