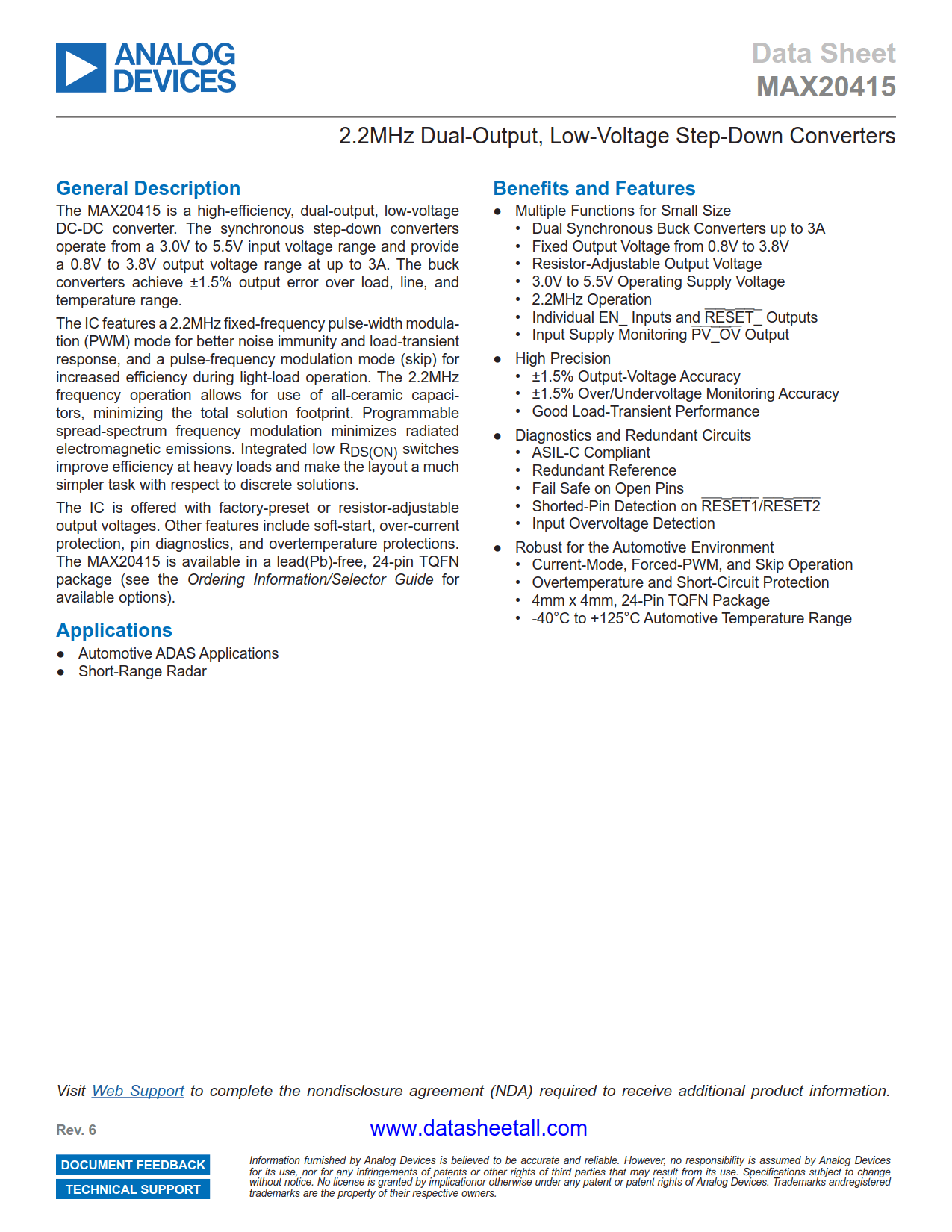

MAX20415 Datasheet

• Multiple Functions for Small Size
  • Dual Synchronous Buck Converters up to 3A
    • Fixed Output Voltage from 0.8V to 3.8V
    • Resistor-Adjustable Output Voltage
  • 3.0V to 5.5V Operating Supply Voltage
  • 2.2MHz Operation
  • Individual EN_ Inputs and RESET_ Outputs I
  • Input Supply Monitoring PV_OV Output
• High Precision
  • ±1.5% Output-Voltage Accuracy
  • ±1.5% Over/Undervoltage Monitoring Accuracy
  • Good Load-Transient Performance
• Diagnostics and Redundant Circuits
  • ASIL-C Compliant
  • Redundant Reference
  • Fail Safe on Open Pins
  • Shorted-Pin Detection on RESET1/RESET2
  • Input Overvoltage Detection
• Robust for the Automotive Environment
  • Current-Mode, Forced-PWM, and Skip Operation
  • Overtemperature and Short-Circuit Protection
  • 4mm x 4mm, 24-Pin TQFN Package
  • -40°C to +125°C Automotive Temperature Range

• Automotive ADAS Applications
• Short-Range Radar

The MAX20415 is a high-efficiency, dual-output, low-voltage DC-DC converter. The synchronous step-down converters operate from a 3.0V to 5.5V input voltage range and provide a 0.8V to 3.8V output voltage range at up to 3A. The buck converters achieve ±1.5% output error over load, line, and temperature range.

The IC features a 2.2MHz fixed-frequency pulse-width modulation (PWM) mode for better noise immunity and load-transient response, and a pulse-frequency modulation mode (skip) for increased efficiency during light-load operation. The 2.2MHz frequency operation allows for use of all-ceramic capacitors, minimizing the total solution footprint. Programmable spread-spectrum frequency modulation minimizes radiated electromagnetic emissions. Integrated low R_DS(ON) switches improve efficiency at heavy loads and make the layout a much simpler task with respect to discrete solutions.

The IC is offered with factory-preset or resistor-adjustable output voltages. Other features include soft-start, over-current protection, pin diagnostics, and overtemperature protections. The MAX20415 is available in a lead(Pb)-free, 24-pin TQFN package (see the Ordering Information/Selector Guide for available options).
