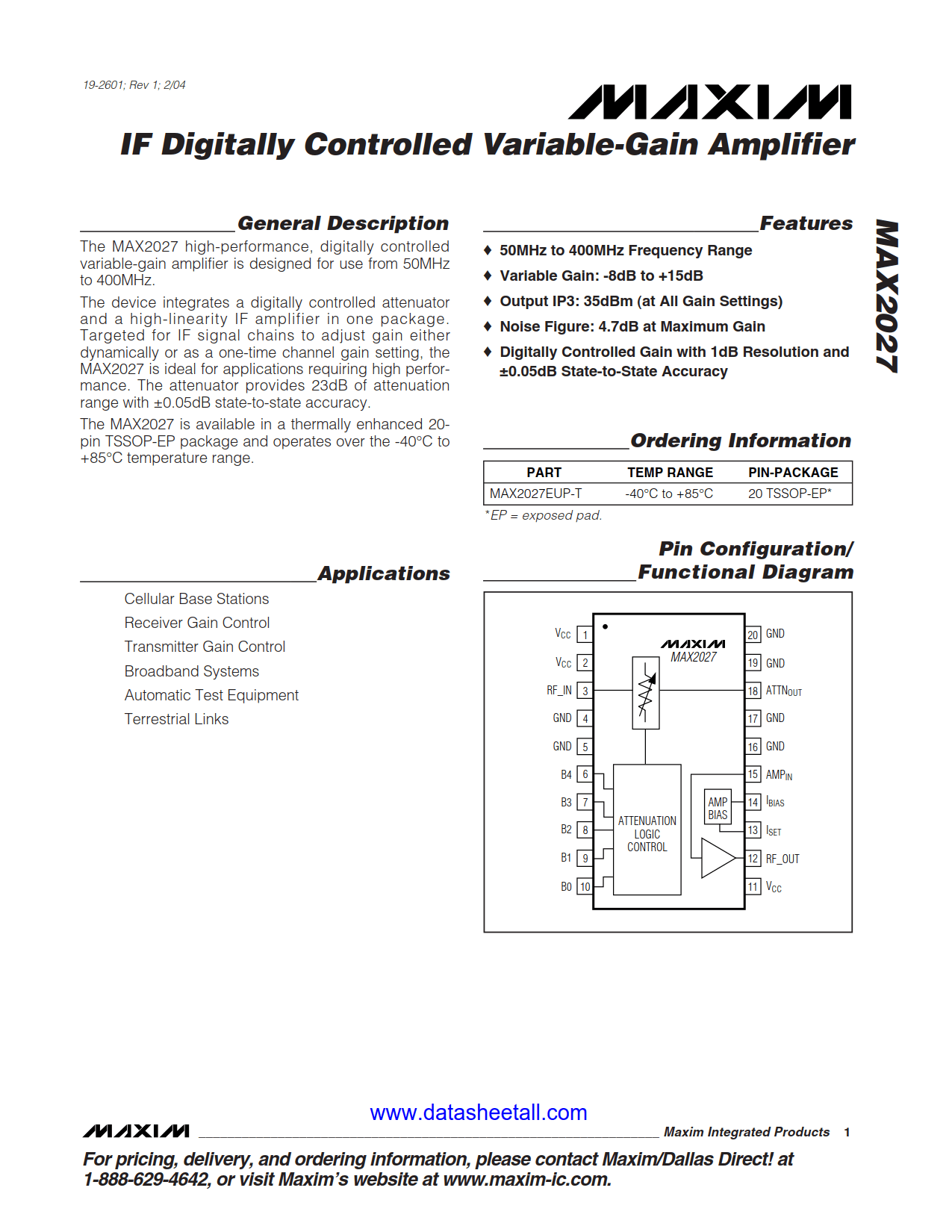

MAX2027 Datasheet

• 50MHz to 400MHz Frequency Range
• Variable Gain: -8dB to +15dB
• Output IP3: 35dBm (at All Gain Settings)
• Noise Figure: 4.7dB at Maximum Gain
• Digitally Controlled Gain with 1dB Resolution and ±0.05dB State-to-State Accuracy

• Automated Test Equipment (ATE)
• Broadband Systems
• Cellular Base Stations
• Receiver Gain Control
• Terrestrial Links
• Transmitter Gain Control

The MAX2027 high-performance, digitally controlled variable-gain amplifier is designed for use from 50MHz to 400MHz.

The device integrates a digitally controlled attenuator and a high-linearity IF amplifier in one package. Targeted for IF signal chains to adjust gain either dynamically or as a one-time channel gain setting, the MAX2027 is ideal for applications requiring high performance. The attenuator provides 23dB of attenuation range with ±0.05dB state-to-state accuracy.

The MAX2027 is available in a thermally enhanced 20- pin TSSOP-EP package and operates over the -40°C to +85°C temperature range.
