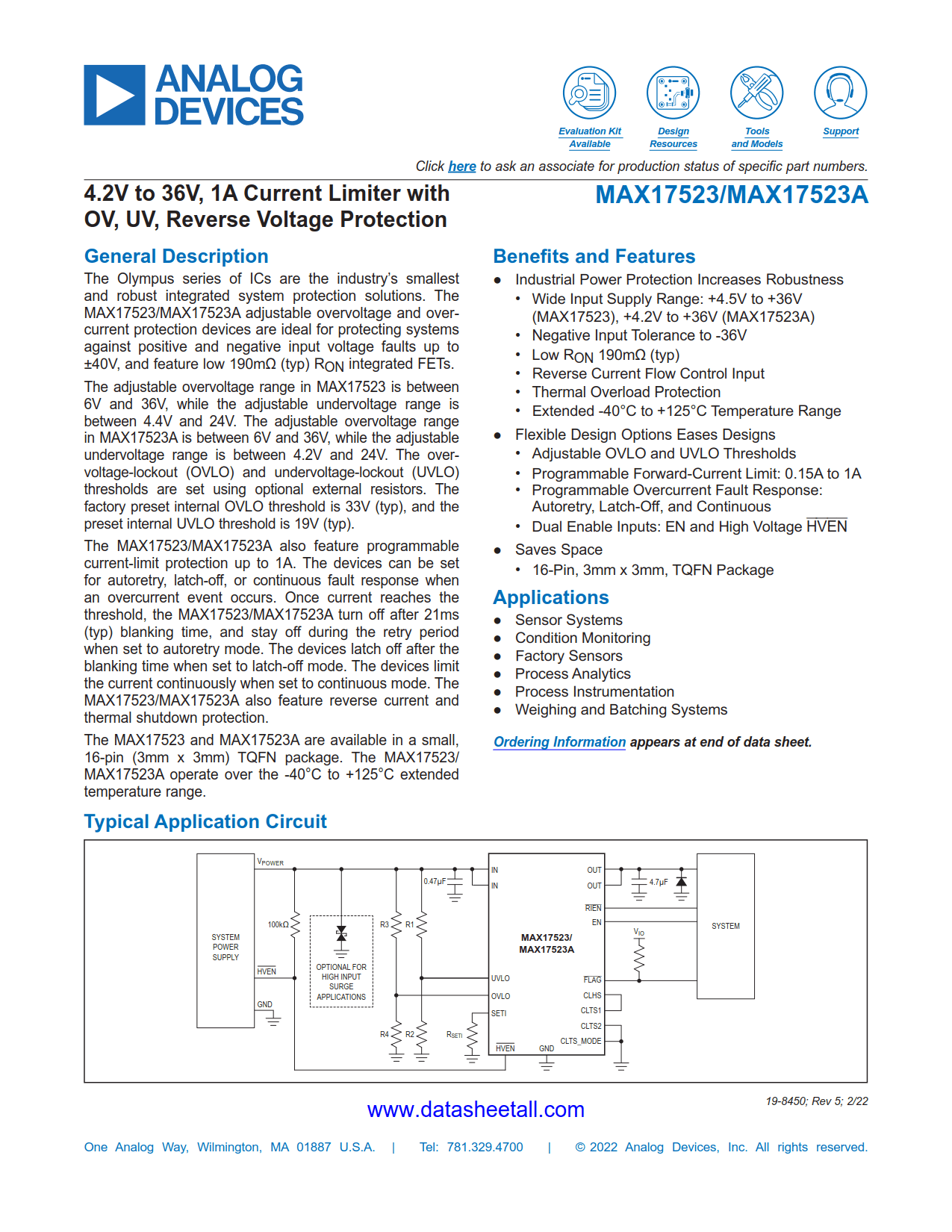

MAX17523A Datasheet

• Industrial Power Protection Increases Robustness
  • Wide Input Supply Range: +4.2V to +36V (MAX17523A)
  • Negative Input Tolerance to -36V
  • Low R_ON 190mΩ (typ)
  • Reverse Current Flow Control Input
  • Thermal Overload Protection
  • Extended -40°C to +125°C Temperature Range
• Flexible Design Options Eases Designs
  • Adjustable OVLO and UVLO Thresholds
  • Programmable Forward-Current Limit: 0.15A to 1A
  • Programmable Overcurrent Fault Response: Autoretry, Latch-Off, and Continuous
  • Dual Enable Inputs: EN and High Voltage Active-Low HVEN
• Saves Space
  • 16-Pin, 3mm x 3mm, TQFN Package

• Condition Monitoring
• Factory Sensors
• Process Analytics
• Process Instrumentation
• Sensor Systems
• Weighing and Batching Systems

The Olympus series of ICs are the industry’s smallest and robust integrated system protection solutions. The MAX17523A adjustable overvoltage and overcurrent protection device is ideal for protecting systems against positive and negative input voltage faults up to ±40V, and feature low 190mΩ (typ) R_ON integrated FETs.

The adjustable overvoltage range in MAX17523A is between 6V and 36V, while the adjustable undervoltage range is between 4.2V and 24V. The overvoltage-lockout (OVLO) and undervoltage-lockout (UVLO) thresholds are set using optional external resistors. The factory preset internal OVLO threshold is 33V (typ), and the preset internal UVLO threshold is 19V (typ).

The MAX17523A also feature programmable current-limit protection up to 1A. The device can be set for autoretry, latch-off, or continuous fault response when an overcurrent event occurs. Once current reaches the threshold, the MAX17523A turn off after 21ms (typ) blanking time, and stay off during the retry period when set to autoretry mode. The devices latch off after the blanking time when set to latch-off mode. The devices limit the current continuously when set to continuous mode. The MAX17523A also feature reverse current and thermal shutdown protection.

The MAX17523A are available in a small, 16-pin (3mm x 3mm) TQFN package.
