MAX1474 Datasheet

Part No.

In Stock

Price

Packaging

SPQ

Marking

MSL

Pins

Temp Range

Package Description

• Tiny SC70 Package (1.1mm x 2.2mm x 2.4mm)
• High-Performance Electronically Trimmable Capacitance
• Very Simple Digital Interface
• Eliminates the Need for Mechanical Tuning
• Enabling Technology for Low-Cost Production Line Automation
• Fully Static Operation After Programming (No Switching)

• Accelerometer Measurements
• Automotive Sensors
• Cell Phones
• Force Sensors
• Humidity Sensors
• Industrial Sensor Transmitters/Transducers
• Industrial Sensor Transmitters/Transducers
• Mobile Radios
• Piezoresistive Transducers
• Temperature Sensing and Monitoring

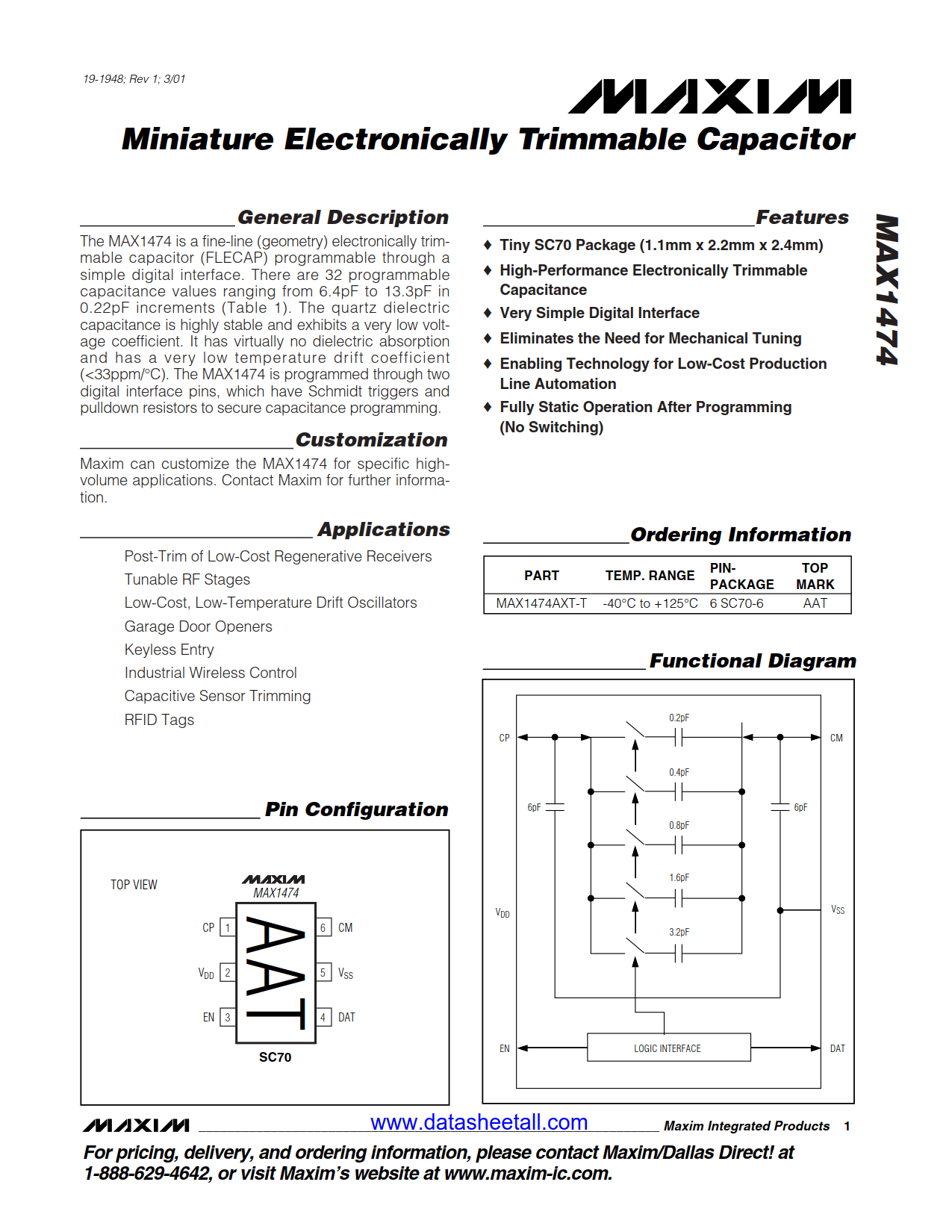

The MAX1474 is a fine-line (geometry) electronically trimmable capacitor (FLECAP) programmable through a simple digital interface. There are 32 programmable capacitance values ranging from 6.4pF to 13.3pF in 0.22pF increments (see Table 1). The quartz dielectric capacitance is highly stable and exhibits a very low voltage coefficient. It has virtually no dielectric absorption and has a very low temperature drift coefficient (<33ppm/°C). The MAX1474 is programmed through two digital interface pins, which have Schmidt triggers and pulldown resistors to secure capacitance programming.
